CLUTCH

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

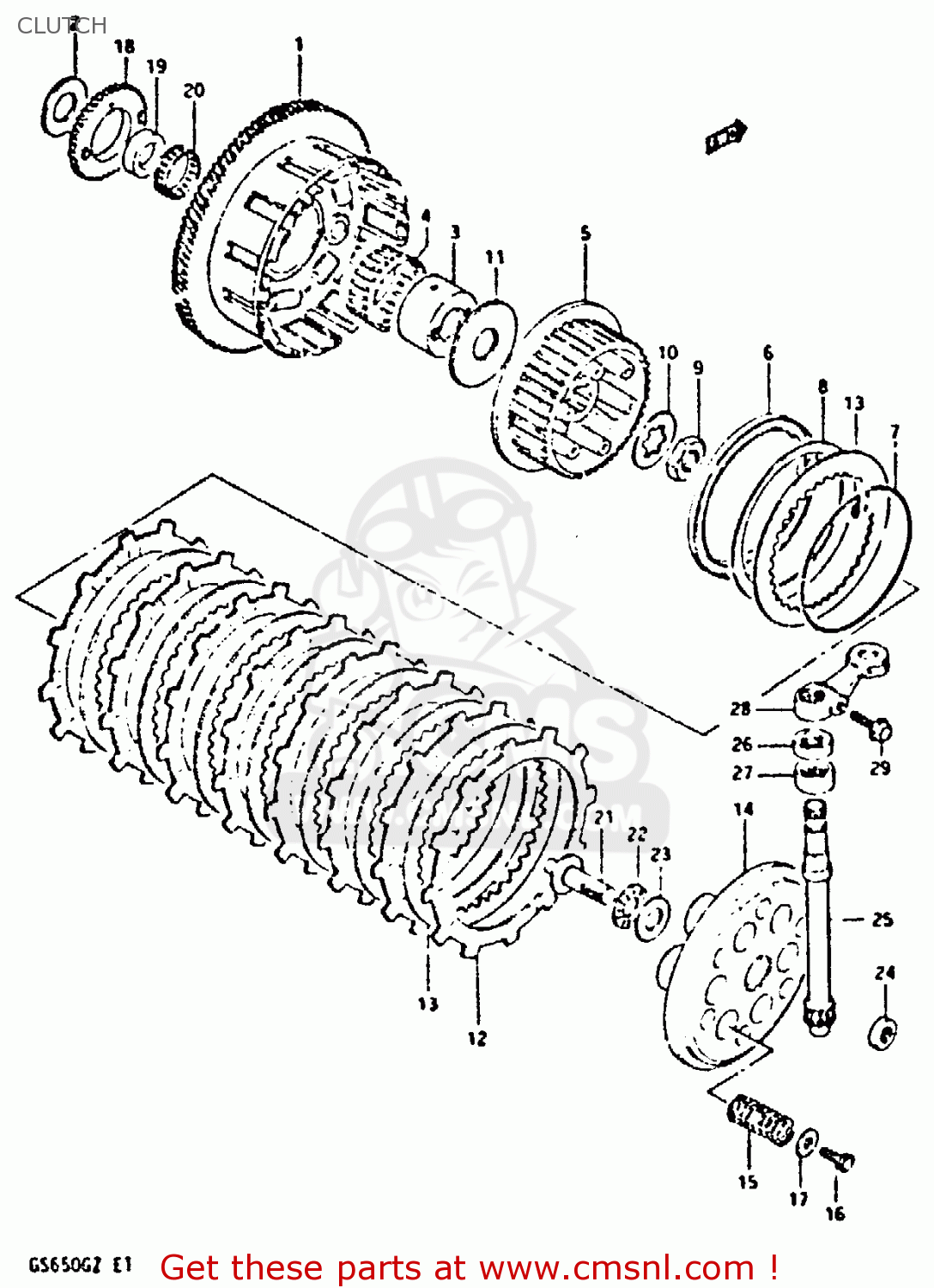

Clutch diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CLUTCH GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CLUTCH GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CLUTCH GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
2120034201
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
2120034201
€ 292.00
2
0916025023
ref: 2
WASHER
0916025023
€ 9.50
3
2125149200
ref: 3
SPACER
2125149200
€ 65.50
4
0926351001
ref: 4
BEARING
0926351001
€ 37.00
5
2141145100
ref: 5
HUB,CLUTCH SLEEVE
2141145100
€ 107.50
6
2147145101
ref: 6
SEAT,WAVE WASHER
2147145101
€ 16.00
7
2148145100
ref: 7
RING,STOPPER
2148145100
€ 5.00
8
0916400003
ref: 8
WASHER
0916400003
€ 9.00
9
0914024004
ref: 9
NUT
0914024004
€ 4.50
10
0916725007
ref: 10
WASHER,LOCK
0916725007
€ 7.50
11
0916025022
ref: 11
WASHER(25X66X3.5)
0916025022
€ 13.50
12
2144145100
ref: 12
PLATE,CLUTCH DRIVE (MCA)
2144145100
€ 20.00
13
2145131000
ref: 13
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
14
2146245102
ref: 14
DISC,CLUTCH PRESSURE
2146245102
€ 146.50
15
0944019004
ref: 15
SPRING
0944019004
€ 3.00
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0916006020
ref: 17
WASHER
0916006020
€ 2.00
18-1
1632149990
ref: 18-1
MODEL X
GEAR,OIL PUMP DRIVE
1632149990
€ 78.50
18-2
1632134300
ref: 18-2
MODEL Z
GEAR,OIL PUMP DRIVE
€ 78.50
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
1632545001
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
0926336002
€ 24.50
21
2316545101
ref: 21
RACK,CLUTCH RELEASE
2316545101
€ 16.50
22
0926315003
ref: 22
BEARING(15X28X2)
0926315003
€ 7.00
23
0916015015
ref: 23
WASHER
€ 4.00
24
0928510003
ref: 24
SEAL,OIL(10X16X5)
0928510003
€ 6.00
25
2326149001
ref: 25
PINION,CLUTCH RELEASE
2326149001
€ 28.00
26
0928512002
ref: 26
OIL SEAL
0928512002
€ 7.00
27
0926315012
ref: 27
BEARING(15X22X12)
0926315012
€ 11.50
28
2327134200
ref: 28
ARM,CLUTCH RELEASE
2327134200
€ 26.50
29
0151706208
ref: 29
BOLT,REAR
€ 2.50
