OIL PUMP-OIL FILTER

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

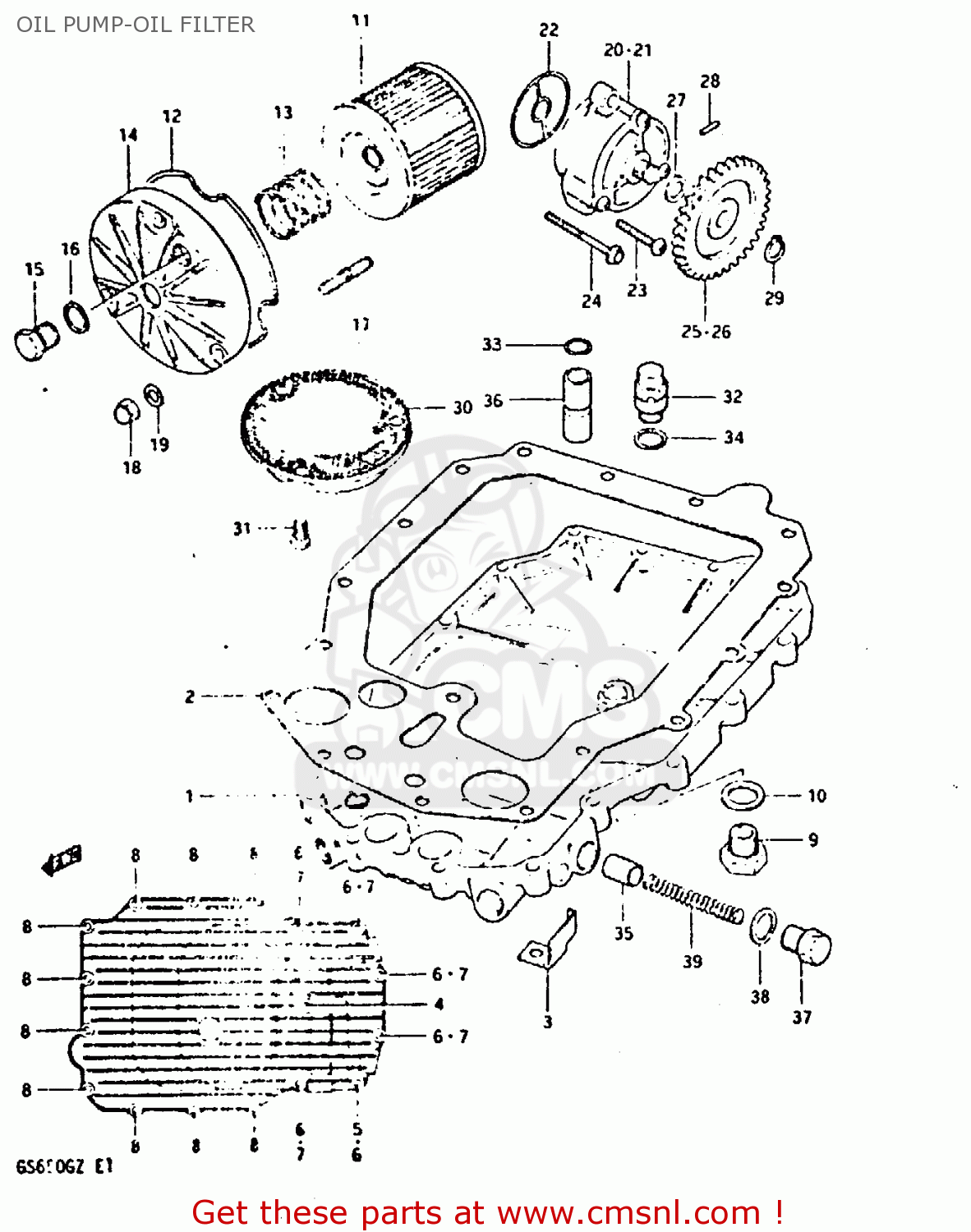

Oil pump-oil filter diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

OIL PUMP-OIL FILTER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
OIL PUMP-OIL FILTER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
OIL PUMP-OIL FILTER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1151034300
ref: 1-1
~E.NO.120179
PAN, OIL
€ 1.50
1-2
1151034301
ref: 1-2
E.NO.120180~
PAN, OIL
€ 1.50
2
1148934200
ref: 2
GASKET,OIL PAN (MCA)
1148934200
€ 14.50
3
1151534300
ref: 3
PLATE, OIL PAN
€ 1.50
4
0151706358
ref: 4
BOLT 6X35
0151706358
€ 2.50
5
0110706358
ref: 5
E.NO.120180~
BOLT
0110706358
€ 2.50
6
0151706308
ref: 6
~E.NO.120179
BOLT
€ 2.00
7
0151706308
ref: 7
E.NO.120180~
BOLT
€ 2.00
8
0151706258
ref: 8
BOLT
0151706258
€ 2.50
9
0924714001
ref: 9
PLUG
0924714001
€ 5.00
10
0916814004
ref: 10
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
11
1651045040
ref: 11
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
12
1651845000
ref: 12
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
13
0944032004
ref: 13
SPRING
0944032004
€ 13.50
14
1651234200
ref: 14
CAP,OIL FILTER
€ 47.00
15
0924714001
ref: 15
PLUG
0924714001
€ 5.00
16
0916814004
ref: 16
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
17
0142106208
ref: 17
STUD 6X20
0142106208
€ 2.50
18
0831311068
ref: 18
NUT
0831311068
€ 2.00
19
0832221068
ref: 19
WASHER
0832221068
€ 2.00
20
1640034300
ref: 20
~E.NO.123251
PUMP ASSEMBLY,OIL
€ 125.50
21
1640034310
ref: 21
E.NO.123252~
PUMP ASSEMBLY,ENGINE OIL
1640034310
€ 125.50
22
1649149200
ref: 22
O-RING,OIL PUMP
1649149200
€ 12.50
23
0211206258
ref: 23
~E.NO.123251
SCREW
€ 2.00
24
0151706408
ref: 24
E.NO.123252~
BOLT
0151706408
€ 2.50
25
1633149990
ref: 25
MODEL X
GEAR,OIL PUMP DRIVEN
1633149990
€ 84.50
26
1633134300
ref: 26
MODEL Z
GEAR,OIL PUMP DRIVEN
€ 84.50
27
0822110185
ref: 27
SHIM
0822110185
€ 2.00
28
0926104009
ref: 28
PIN(4X15.8)
0926104009
€ 1.50
29
0833131109
ref: 29
CIRCLIP
0833131109
€ 2.00
30
1652034200
ref: 30
STRAINER,ENGINE OIL
1652034200
€ 9.00
31
0211206128
ref: 31
SCREW 6X12
0211206128
€ 2.00
32
1644034301
ref: 32
REGULATOR ASSEMBLY,ENGINE
€ 37.00
33
0928012005
ref: 33
O-RING
0928012005
€ 5.00
34
0821214181
ref: 34
WASHER
0821214181
€ 2.00
35
1644234300
ref: 35
PLUNGER,CONTROL
€ 16.00
36
1644934200
ref: 36
BY-PASS,OIL REGULATOR
1644934200
€ 14.00
37
0924716002
ref: 37
PLUG
0924716002
€ 3.50
38
0916816002
ref: 38
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
39
0944010011
ref: 39
SPRING
€ 3.50
