FRONT FORK (MODEL X)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

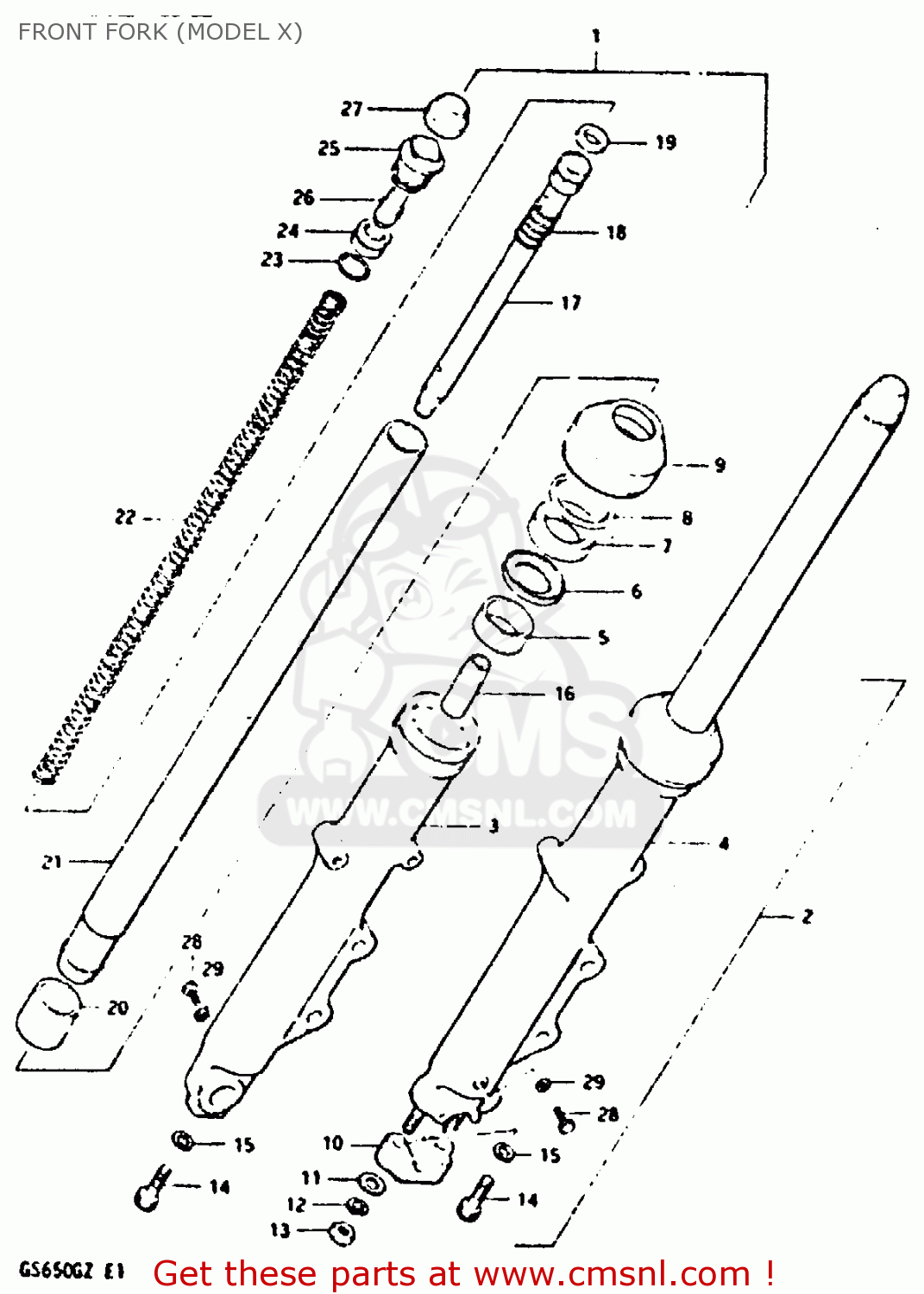

Front fork (model x) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

FRONT FORK (MODEL X) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
FRONT FORK (MODEL X) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
FRONT FORK (MODEL X) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
5110334300
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110434300
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113034320291
ref: 3
BLACK
OUTER TUBE RH
€ 180.50
4
5114034320291
ref: 4
BLACK
OUTER TUBE LH
5114034320291
€ 148.00
5
5115234210
ref: 5
GUIDE,FORK INNER TUBE
5115234210
€ 17.50
6
5116834210
ref: 6
SPACER,SEAL
€ 5.50
7
5115334210
ref: 7
OIL SEAL,FRONT FORK
€ 15.00
8
5155634210
ref: 8
RING, STOPPER
€ 7.00
9
5157145200
ref: 9
BOOT
€ 20.50
10
5113244040291
ref: 10
BLACK
HOLDER,AXLE
5113244040291
€ 38.50
11
0832221088
ref: 11
WASHER
0832221088
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
0831012088
ref: 13
NUT
0831012088
€ 2.00
14
5114748130
ref: 14
BOLT(8X27)
5114748130
€ 3.50
15
5114831030
ref: 15
GASKET (NAS)
5114831030
€ 4.00
16
5119545030
ref: 16
PIECE,OIL LOCK
5119545030
€ 16.00
17
5114634300
ref: 17
CYLINDER
€ 0.00
18
5117734210
ref: 18
SPRING,FORK REBOUND
€ 7.00
19
5119634210
ref: 19
RING,PISTON
5119634210
€ 6.50
20
5112134210
ref: 20
PISTON
5112134210
€ 20.50
21
5111034300
ref: 21
INNER TUBE
5111034300
€ 240.50
22
5117134300
ref: 22
SPRING
€ 0.00
23
5111734210
ref: 23
O RING
5111734210
€ 5.00
24
5117234300
ref: 24
SEAT,FRONT FORK SPRING
5117234300
€ 7.50
25
5135134300
ref: 25
BOLT
€ 0.00
26
5118545450
ref: 26
ADJUSTER, SPRING
5118545450
€ 22.00
27
5118915450
ref: 27
CAP
€ 0.00
28
0910006011
ref: 28
BOLT(6X8)
0910006011
€ 2.50
29
5118331030
ref: 29
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
