SIGNAL GENERATOR

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

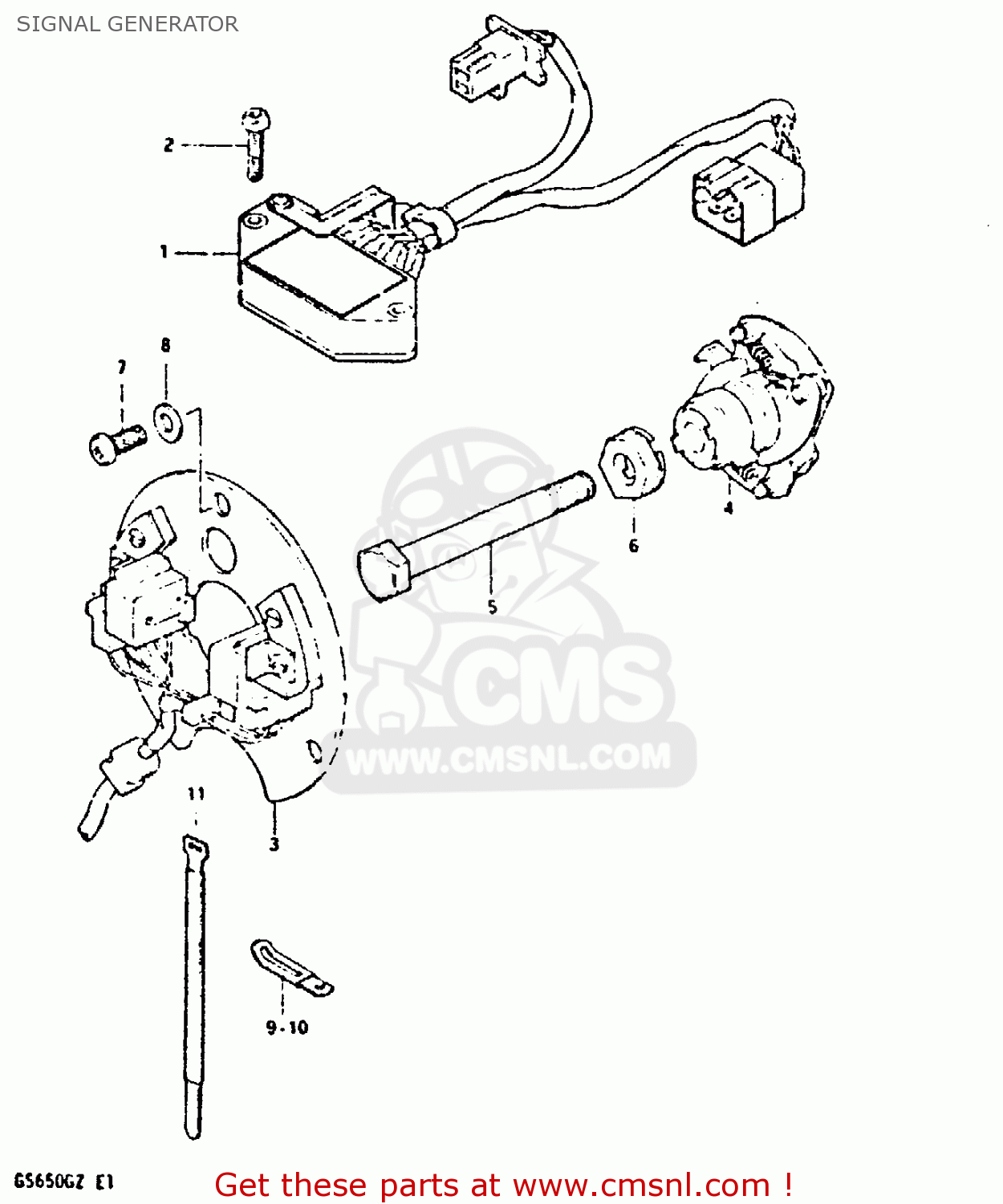

Signal generator diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3290034210
ref: 1

IGNITER UNIT ASSEMBLY

€ 549.50

0211206258
ref: 2

SCREW

€ 2.00

3311034210
ref: 3

SIGNAL GENERATOR ASSEMBLY

€ 234.00

3312034210
ref: 4

GOVERNOR ASSEMBLY

€ 151.00

0110708658
ref: 5

BOLT

€ 3.00

3346547000
ref: 6

WASHER

€ 19.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005027
ref: 8

WASHER

€ 2.50

0940406401
ref: 9

CLAMP L:35

€ 2.50

0940408401
ref: 10

CLAMP

€ 3.50

0940718301
ref: 11

CLAMP

€ 6.00
