STARTER CLUTCH

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

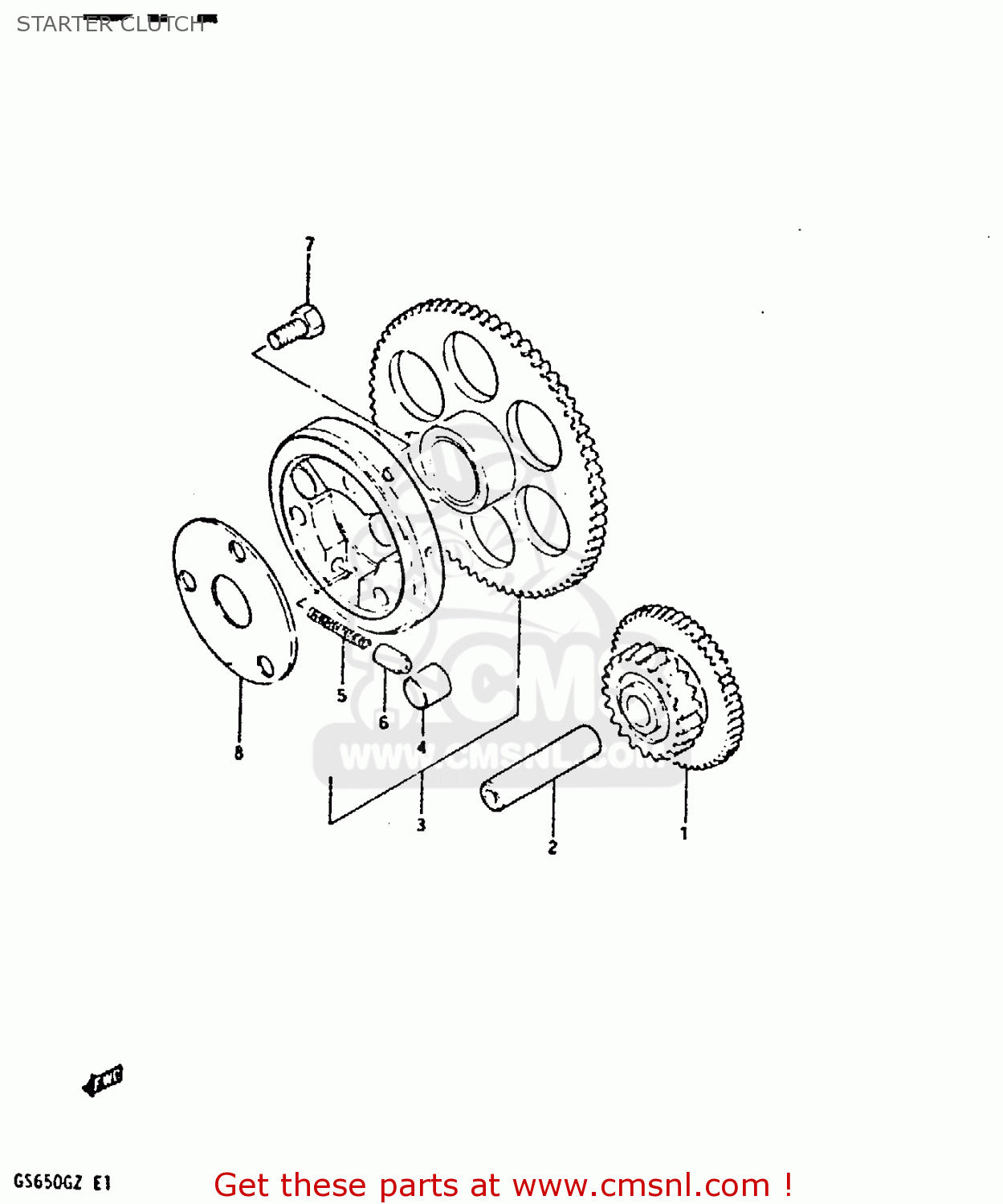

Starter clutch diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

STARTER CLUTCH GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

STARTER CLUTCH GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1261147000
ref: 1

GEAR,STARTER IDLE

€ 64.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260034810
ref: 3

CLUTCH SET,STARTER

€ 93.50

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7

BOLT

€ 3.00

8

0264945000
ref: 8

SHIM, STARTER CLUTCH

€ 0.00
