OIL COOLER

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

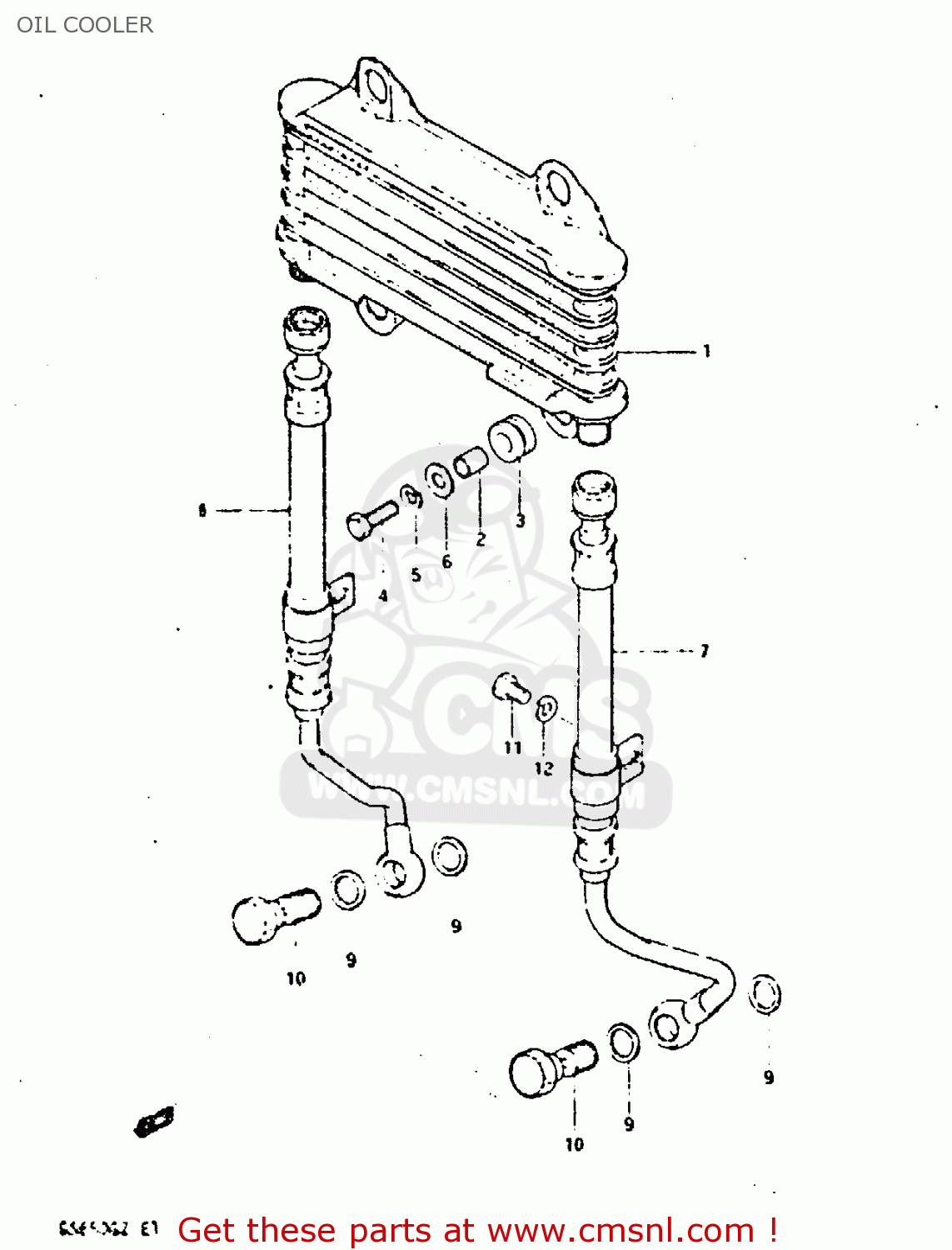

Oil cooler diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1660034300
ref: 1

COOLER ASSEMBLY,ENGINE OIL

€ 425.00

0918006030
ref: 2

SPACER (6.8X10X10)

€ 2.00

0832010015
ref: 3

CUSHION

€ 0.00

0110706208
ref: 4

BOLT

€ 2.00

0832121068
ref: 5

LOCK WASHER

€ 2.50

0916006007
ref: 6

WASHER

€ 2.00

1646034300
ref: 7

HOSE, OIL LH

€ 115.00

1647034300
ref: 8

HOSE, OIL RH

€ 119.50

0916814004
ref: 9

GASKET(14X19.2X2) (NAS)

€ 2.50

0936014002
ref: 10

BOLT UNION

€ 20.50

0110706108
ref: 11

BOLT

€ 2.00

0832121068
ref: 12

LOCK WASHER

€ 2.50
