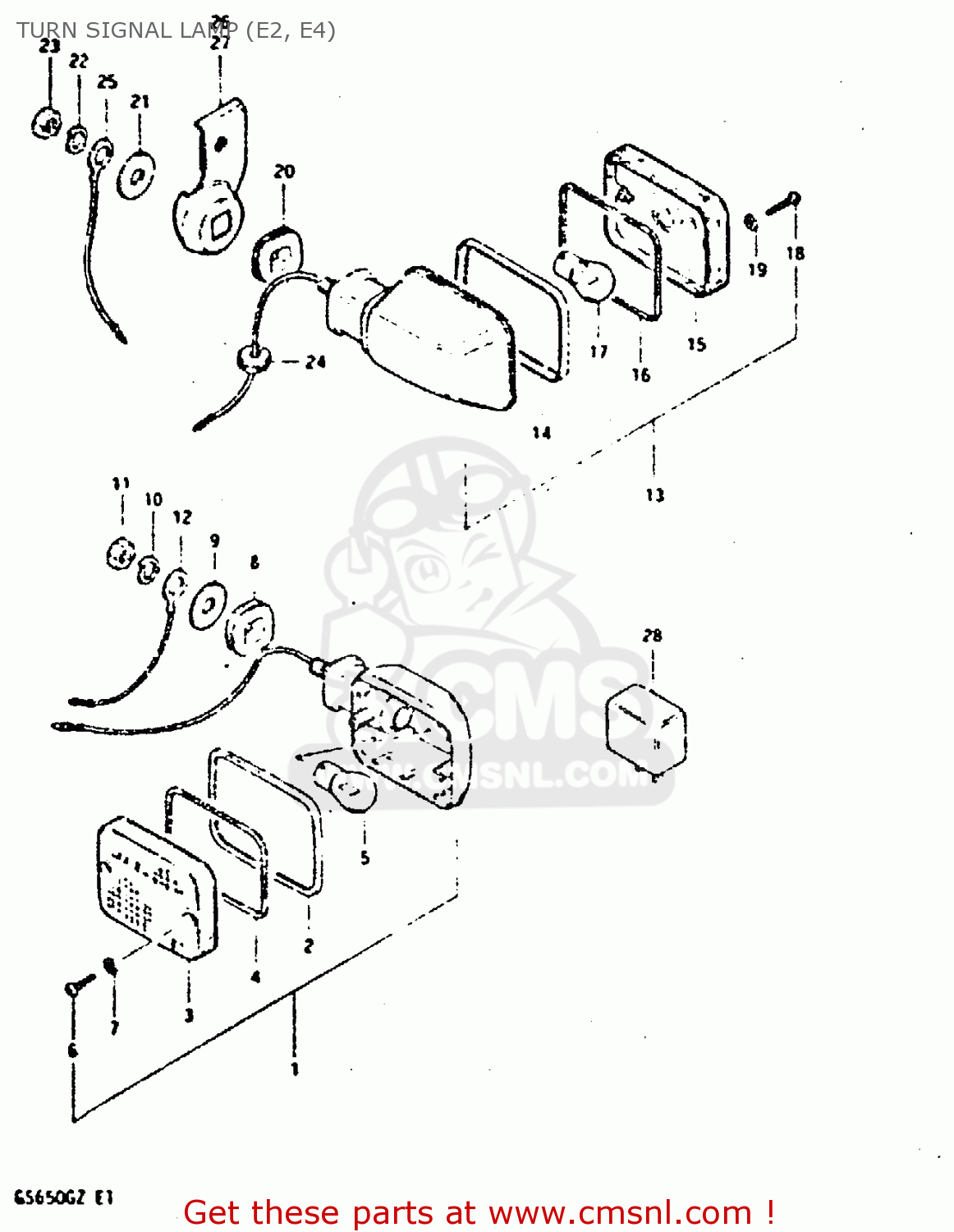

TURN SIGNAL LAMP (E2, E4)

ref

part #

description

quantity

1-1

3560144122999
ref: 1-1
MODEL X

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 102.00

1-2

3560145521
ref: 1-2
MODEL Z

LAMP ASSY,FR T

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112056
ref: 5

BULB 12V 21W

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0932015002
ref: 8

CUSHION

€ 4.50

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3686245000
ref: 12
MODEL X

WIRE

€ 5.00

13-1

3560344172
ref: 13-1
MODEL Z

LAMP, REAR TURN SIGNAL

€ 82.00

13-2

3560345521
ref: 13-2
MODEL Z

LAMP, REAR TURN SIGNAL

€ 83.50

14

3561149230
ref: 14

RIM

€ 11.00

15

3565244182
ref: 15

LENS

€ 13.00

16

3561349230
ref: 16

GASKET (NAS)

€ 5.00

17

0947112056
ref: 17

BULB 12V 21W

€ 5.00

18

0321104208
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0932015002
ref: 20

CUSHION

€ 4.50

21

0916010006
ref: 21

WASHER (10.5X30X2.3)

€ 2.50

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

0831012108
ref: 23

NUT

€ 2.50

24

0930805011
ref: 24

GROMMET

€ 2.00

25

3666033000
ref: 25
MODEL X

LEAD WIRE,EARTH

€ 5.00

26

3562034300
ref: 26

BRACKET, REAR RH

€ 9.50

27

3564034300
ref: 27

BRACKET, REAR LH

€ 9.50

28

3861045031
ref: 28

RELAY,TURN SIGNAL

€ 54.50

all assemblies
