FUEL COCK (MODEL X)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

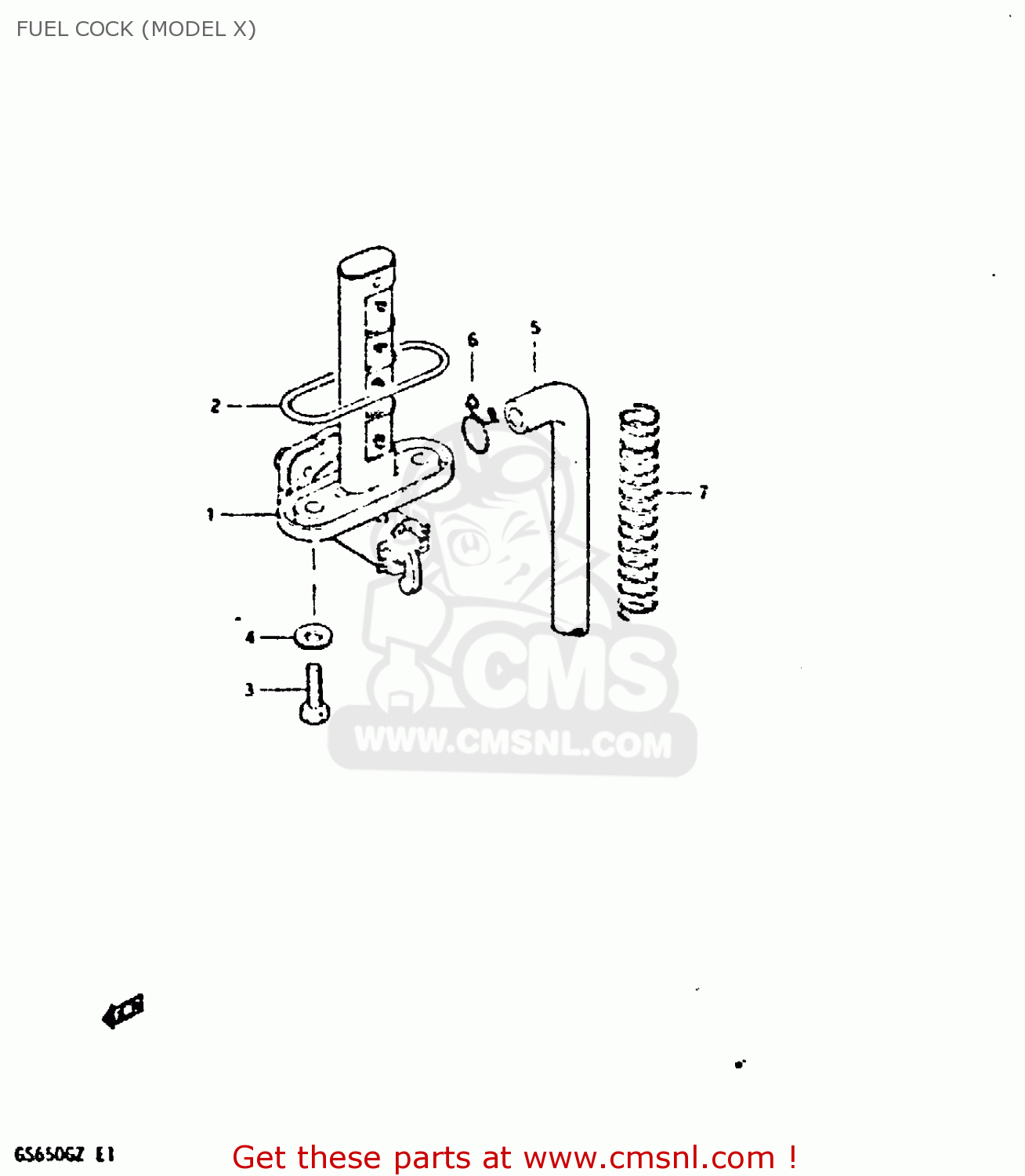

Fuel cock (model x) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

FUEL COCK (MODEL X) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

FUEL COCK (MODEL X) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

4430034470
ref: 1

COCK ASSEMBLY,FUEL

€ 104.50

2

4434849170
ref: 2

O RING

€ 3.50

3

0912806006
ref: 3

BOLT(6X20)

€ 2.00

4

0916806010
ref: 4

GASKET

€ 2.00

5

0934307026
ref: 5

HOSE

€ 17.50

6

0940110403
ref: 6

CLIP

€ 7.00

7

0944013017
ref: 7

SPRING

€ 14.50
