CRANKSHAFT

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

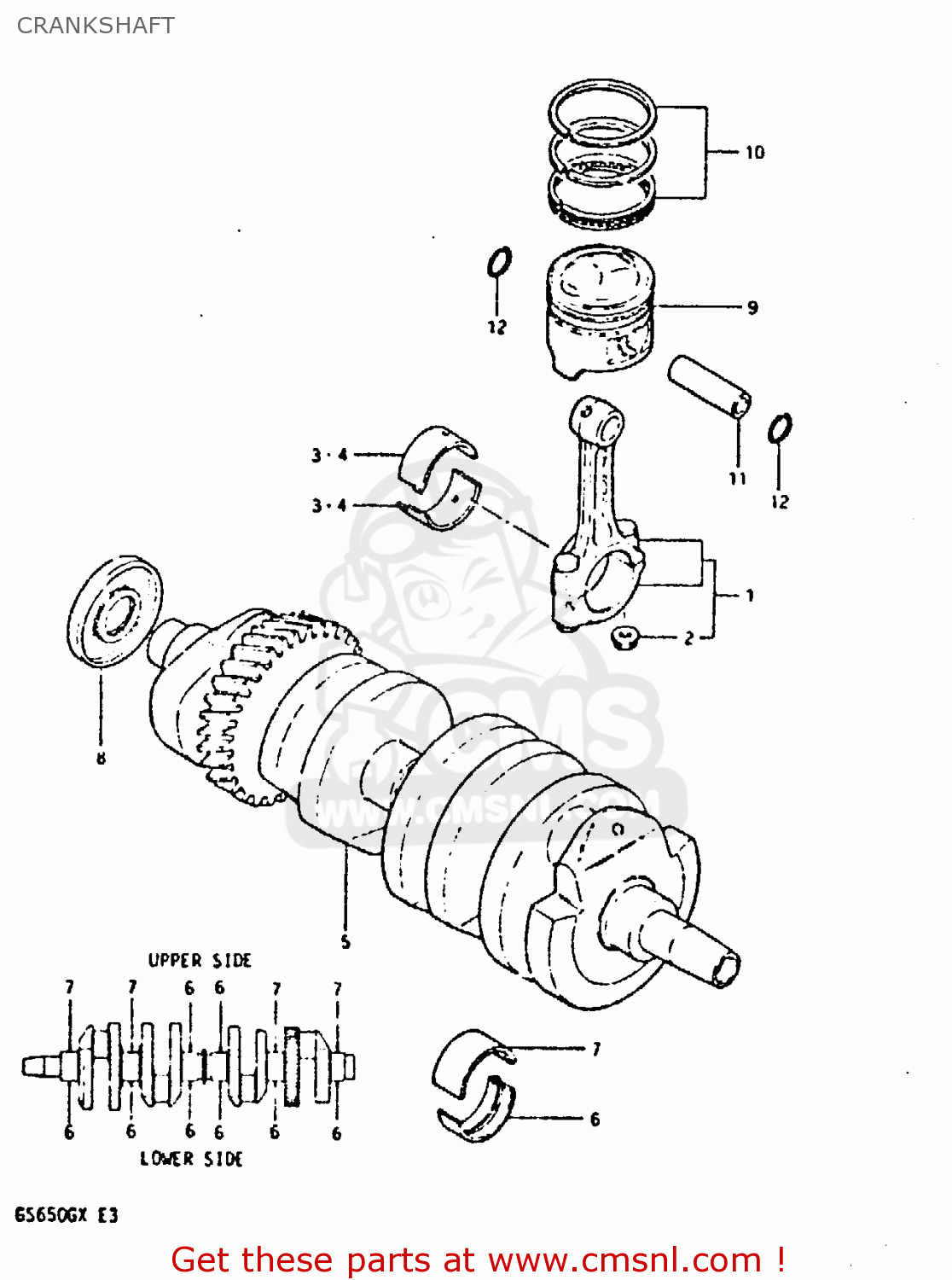

Crankshaft diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CRANKSHAFT GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKSHAFT GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKSHAFT GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
1216034202
ref: 1
ROD ASSEMBLY,CONNECTING
€ 103.00
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216434201010
ref: 3-1
GREEN, ~E.NO.122708
BEARING,CRANK PIN
€ 14.50
3-2
1216434201020
ref: 3-2
BLACK, ~E.NO.122708
BEARING,CRANK PIN
€ 14.50
3-3
1216434201030
ref: 3-3
BROWN, ~E.NO.122708
BEARING,CRANK PIN
€ 15.00
3-4
1216434201040
ref: 3-4
YELLOW, ~E.NO.122708
BEARING,CRANK PIN
€ 15.50
3-5
1216434201025
ref: 3-5
US:0.25
BEARING,CRANK PIN
€ 11.00
3-6
1216434201050
ref: 3-6
US:0.5
BEARING,CRANK PIN
€ 10.50
4-1
1216434210010
ref: 4-1
GREEN, E.NO.122709~
BEARING,CRANK PIN
1216434210010
€ 14.50
4-2
1216434210020
ref: 4-2
BLACK, E.NO.122709~
BEARING,CRANK PIN
1216434210020
€ 14.50
4-3
1216434210030
ref: 4-3
BROWN, E.NO.122709~
BEARING,CRANK PIN
1216434210030
€ 15.00
4-4
1216434210040
ref: 4-4
YELLOW, E.NO.122709~
BEARING,CRANK PIN
1216434210040
€ 15.50
4-5
1216434210025
ref: 4-5
US:0.25
BEARING,CRANK PIN(US:0.25)
1216434210025
€ 11.00
4-6
1216434210050
ref: 4-6
US:0.5
METAL,CRANK PIN
1216434210050
€ 10.50
5
1222034202
ref: 5
CRANKSHAFT
€ 952.00
6-1
1222945400010
ref: 6-1
GREEN
METAL CRANKSHAFT
1222945400010
€ 10.00
6-2
1222945400020
ref: 6-2
BLACK
METAL CRANKSHAFT
1222945400020
€ 10.00
6-3
1222945400030
ref: 6-3
BROWN
METAL CRANKSHAFT
1222945400030
€ 10.00
6-4
1222945400040
ref: 6-4
YELLOW
METAL CRANKSHAFT
1222945400040
€ 9.00
6-5
1222945400025
ref: 6-5
US:0.25
BEARING,CRANKSHAFT(US:0.25)
1222945400025
€ 11.50
6-6
1222945400050
ref: 6-6
US:0.5
BEARING,CRANKSHAFT(US:0.5)
1222945400050
€ 10.50
7-1
1222945410010
ref: 7-1
GREEN
METAL CRANKSHAFT
1222945410010
€ 12.00
7-2
1222945410020
ref: 7-2
BLACK
METAL CRANKSHAFT
1222945410020
€ 12.50
7-3
1222945410030
ref: 7-3
BROWN
METAL CRANKSHAFT
1222945410030
€ 12.00
7-4
1222945410040
ref: 7-4
YELLOW
METAL CRANKSHAFT
1222945410040
€ 11.50
7-5
1222945410025
ref: 7-5
US:0.25
METAL CRANKSHAFT
1222945410025
€ 11.50
7-6
1222945410050
ref: 7-6
US:0.5
METAL CRANKSHAFT
1222945410050
€ 10.50
8
0928330031
ref: 8
OIL SEAL
0928330031
€ 15.00
9-1
1211134203
ref: 9-1
PISTON
1211134203
€ 53.50
9-2
1211134203050
ref: 9-2
PISTON
€ 127.50
9-3
1211134203100
ref: 9-3
PISTON
€ 109.50
10-1
1214034211
ref: 10-1
RING SET,PISTON
1214034211
€ 50.00
10-2
1214034211050
ref: 10-2
RING SET,PISTON (OS:0.5)
€ 44.00
10-3
1214034211100
ref: 10-3
RING SET,PISTON (OS:1.0)
€ 34.50
11
1215167001
ref: 11
PIN,PISTON
1215167001
€ 10.00
12
0938116002
ref: 12
CIRCLIP
0938116002
€ 1.50
