REAR SWINGING ARM

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

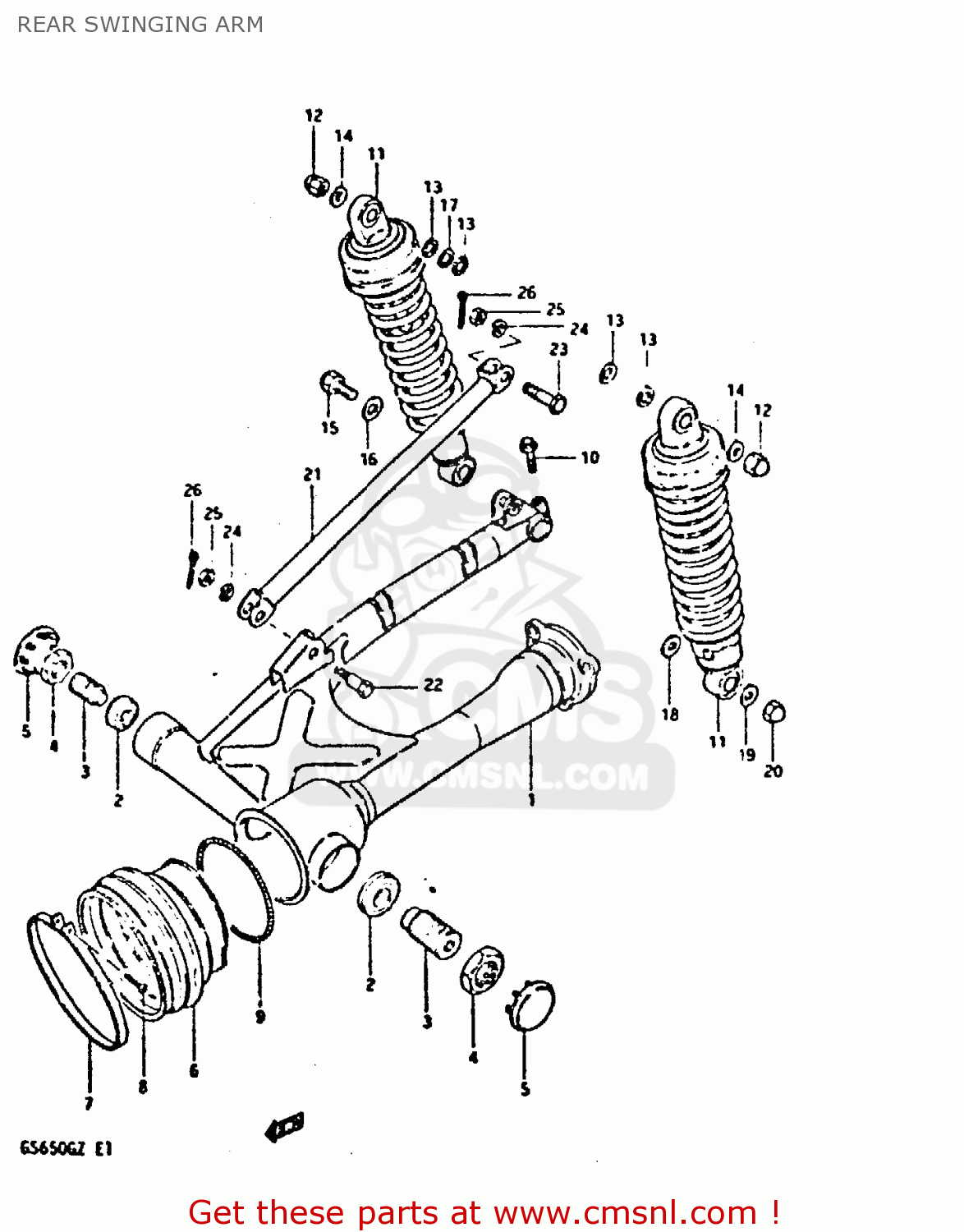

Rear swinging arm diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

REAR SWINGING ARM GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
REAR SWINGING ARM GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
REAR SWINGING ARM GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
611003485013L
ref: 1-1
MODEL X
REAR SWINGING ARM SET
€ 334.50
1-2
611003485012K
ref: 1-2
MODEL Z
REAR SWINGING ARM SET
€ 334.50
2
0926515003
ref: 2
BEARING(15X35X11.75)
0926515003
€ 51.50
3
6121334300
ref: 3
BOLT,REAR SWING ARM PIVOT
6121334300
€ 16.00
4
0914022004
ref: 4
NUT (22MM)
0914022004
€ 4.00
5
6122234301
ref: 5
CAP,REAR SWING ARM PIVOT
€ 12.50
6
6137234300
ref: 6
BOOT,PROPELLER SHAFT
6137234300
€ 22.50
7
0940200304
ref: 7
CLAMP
€ 5.00
8
0321104255
ref: 8
SCREW 4X25
0321104255
€ 2.00
9
6137334300
ref: 9
SPRING,PROPELLER SHAFT
6137334300
€ 6.50
10
0151708258
ref: 10
BOLT
0151708258
€ 2.50
11-1
6210034300
ref: 11-1
MODEL X
SHOCK ABSORBER, REAR
€ 0.00
11-2
6210034350
ref: 11-2
MODEL Z
SHOCK ABSORBER, REAR
€ 0.00
12
0914510001
ref: 12
NUT
0914510001
€ 2.50
13
0832211128
ref: 13
WASHER
0832211128
€ 2.00
14
0916010001
ref: 14
WASHER
0916010001
€ 2.00
15
0910412014
ref: 15
BOLT 12X33
0910412014
€ 4.00
16
0916012004
ref: 16
WASHER (12.5X24X1.6)
0916012004
€ 2.00
17
0916012012
ref: 17
WASHER (12.5X24X3.2)
0916012012
€ 2.50
18
0832211128
ref: 18
WASHER
0832211128
€ 2.00
19
0916010001
ref: 19
WASHER
0916010001
€ 2.00
20
0831311108
ref: 20
NUT, LOWER LH
0831311108
€ 2.50
21
6431034300019
ref: 21
TORQUE LINK,REAR
6431034300019
€ 22.50
22
0911110011
ref: 22
BOLT
0911110011
€ 8.00
23
0910110017
ref: 23
BOLT(10X39)
0910110017
€ 5.00
24
0832211108
ref: 24
WASHER
€ 2.50
25
0831441108
ref: 25
NUT
0831441108
€ 2.50
26
0411120208
ref: 26
PIN 20X20
0411120208
€ 1.50
