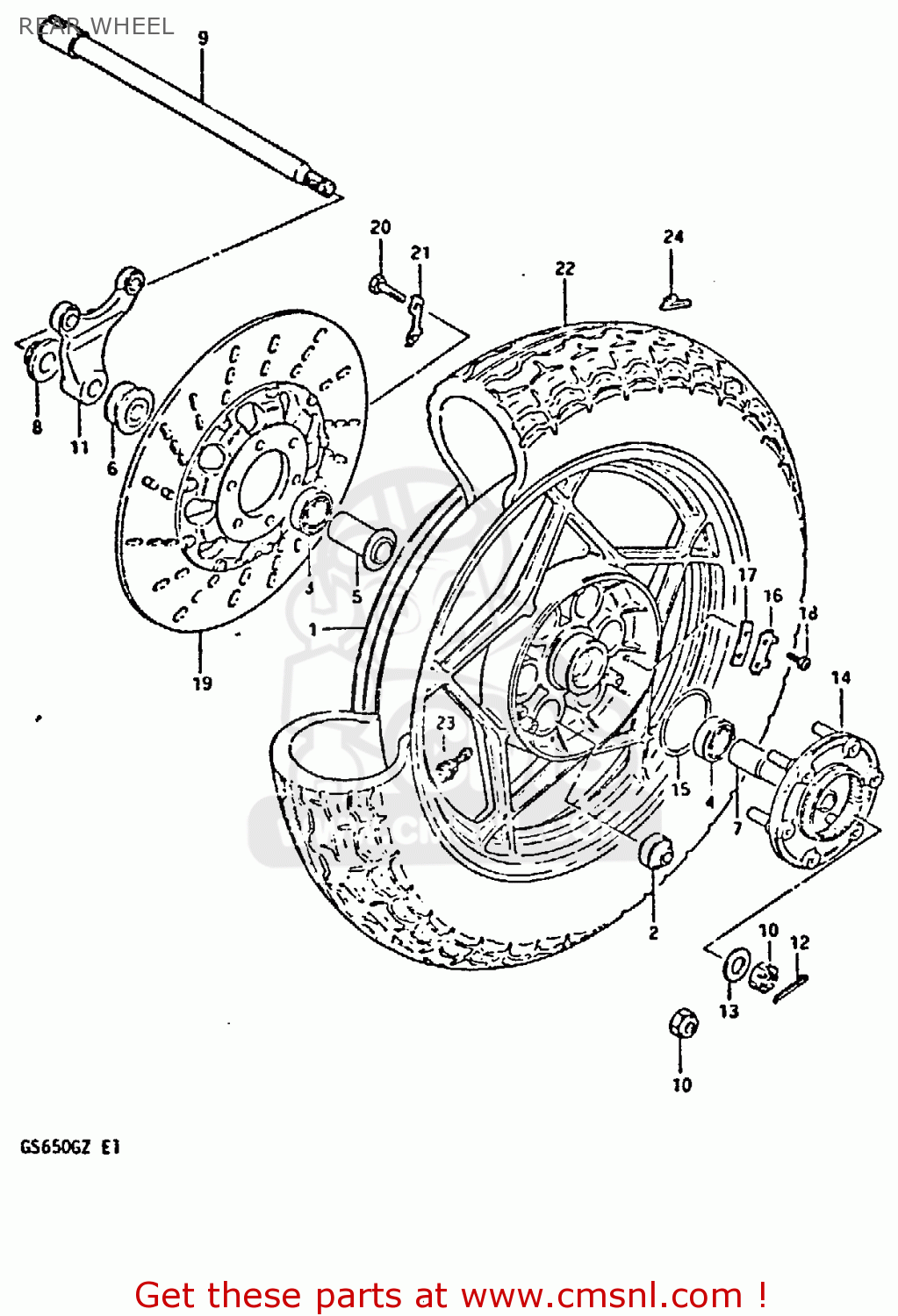

REAR WHEEL

ref

part #

description

quantity

1-1

6410034830
ref: 1-1
MODEL X (10V)

WHEEL, REAR (17*2.50)

€ 223.50

1-2

641003483210V
ref: 1-2
MODEL Z

WHEEL, REAR (17XMT2.50)

€ 223.50

1-3

641003483212U
ref: 1-3
MODEL Z

WHEEL SET,REAR

€ 223.50

2

0931912019
ref: 2

BUSH

€ 10.50

3

0812363037
ref: 3

BEARING

€ 16.00

4

0814363037
ref: 4

BEARING

€ 23.00

5

6473034200
ref: 5

SPACER,REAR HUB BEARING

€ 0.00

6-1

6474047001
ref: 6-1
MODEL X

SPACER,REAR AXLE

€ 12.50

6-2

6474047010
ref: 6-2
MODEL Z

SPACER,REAR AXLE

€ 11.50

7

6477234200
ref: 7

SPACER,REAR AXLE,LEFT

€ 14.50

8

6474134300
ref: 8

SPACER,REAR AXLE,RIGHT

€ 6.50

9

6471134200
ref: 9

AXLE,REAR

€ 0.00

10-1

0914116001
ref: 10-1

NUT

€ 6.50

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

6972147020
ref: 11

BRACKET,REAR CALIPER

€ 0.00

12

0411140308
ref: 12

PIN,COTTER

€ 1.50

13

0916016025
ref: 13

WASHER(16.5X36X3.2)

€ 2.50

14

6468045112
ref: 14

JOINT ASSEMBLY,REAR HUB DRUM

€ 181.50

15

0928065003
ref: 15

O RING(D:2.1,ID:65)

€ 2.50

16

6467645114
ref: 16

WASHER (T:1.0)

€ 2.00

17

6467745110
ref: 17

WASHER,THRUST(T:1.6)

€ 2.50

18

0912806005
ref: 18

SCREW

€ 2.50

19

6921134260
ref: 19

DISC,REAR BRAKE

€ 110.00

20

0910008175
ref: 20

BOLT(8X28)

€ 2.50

21

0916908030
ref: 21

WASHER

€ 41.00

22

6510034330
ref: 22
BS

TIRE

€ 0.00

23

5522045100
ref: 23

VALVE ASSEMBLY,WHEEL RIM,J

€ 15.50

24-1

5541145100
ref: 24-1

BALANCER,WHEEL

€ 7.00

24-2

5541245100
ref: 24-2

BALANCER,WHEEL

€ 4.00

all assemblies
