CRANKCASE (~E.NO.122595)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

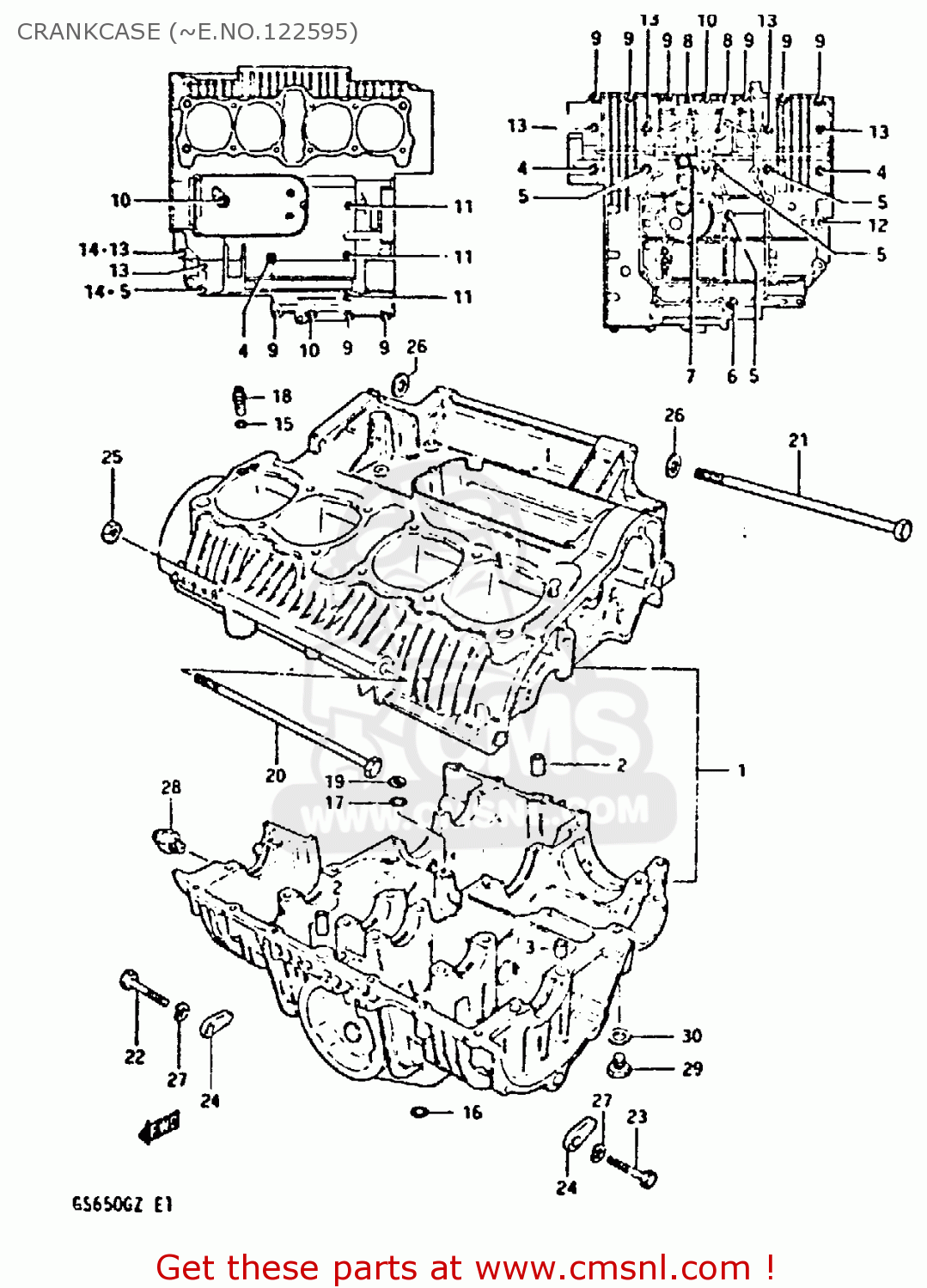

Crankcase (~e.no.122595) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CRANKCASE (~E.NO.122595) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKCASE (~E.NO.122595) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKCASE (~E.NO.122595) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
1130034870
ref: 1
CRANKCASE SET
€ 932.50
2
0920611005
ref: 2
PIN (11X20)(SUS)
€ 6.50
3
0920613004
ref: 3
PIN(10.4X13X22)
0920613004
€ 3.00
4
0910308024
ref: 4
BOLT
0910308024
€ 3.00
5
0910308026
ref: 5
BOLT
0910308026
€ 3.50
6
0910308038
ref: 6
BOLT(8X135)
0910308038
€ 4.00
7
0910308040
ref: 7
BOLT(8X140)
0910308040
€ 4.00
8
0910608015
ref: 8
BOLT
0910608015
€ 4.50
9
0151706408
ref: 9
BOLT
0151706408
€ 2.50
10
0151706558
ref: 10
BOLT
€ 2.50
11
0151706908
ref: 11
BOLT (6X90)
€ 2.00
12
0151708708
ref: 12
BOLT (8X70)
€ 2.00
13
0151708958
ref: 13
BOLT (8X95)
€ 3.50
14
0831616088
ref: 14
NUT
0831616088
€ 2.50
15
0928004002
ref: 15
O-RING,OIL GALLERY JET
0928004002
€ 2.00
16
0928012005
ref: 16
O-RING
0928012005
€ 5.00
17
0928013001
ref: 17
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
18
0949324009
ref: 18
JET(12)
0949324009
€ 10.50
19
0821205161
ref: 19
WASHER
0821205161
€ 1.50
20
0910010111
ref: 20
BOLT
€ 11.50
21
0910110010
ref: 21
BOLT 10X250
0910110010
€ 49.50
22
0110710558
ref: 22
BOLT 10X55
0110710558
€ 3.50
23
0110710408
ref: 23
BOLT 10X40
0110710408
€ 3.00
24
0915910020
ref: 24
NUT
0915910020
€ 7.50
25
0831931105
ref: 25
NUT 10MM
€ 3.00
26
0832211108
ref: 26
WASHER
€ 2.50
27
0832121108
ref: 27
LOCK WASHER
0832121108
€ 2.00
28
3782034200
ref: 28
SWITCH ASSEMBLY
3782034200
€ 29.00
29
0924714001
ref: 29
PLUG
0924714001
€ 5.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
