REAR COMBINATION LAMP (E2, E4, E21)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

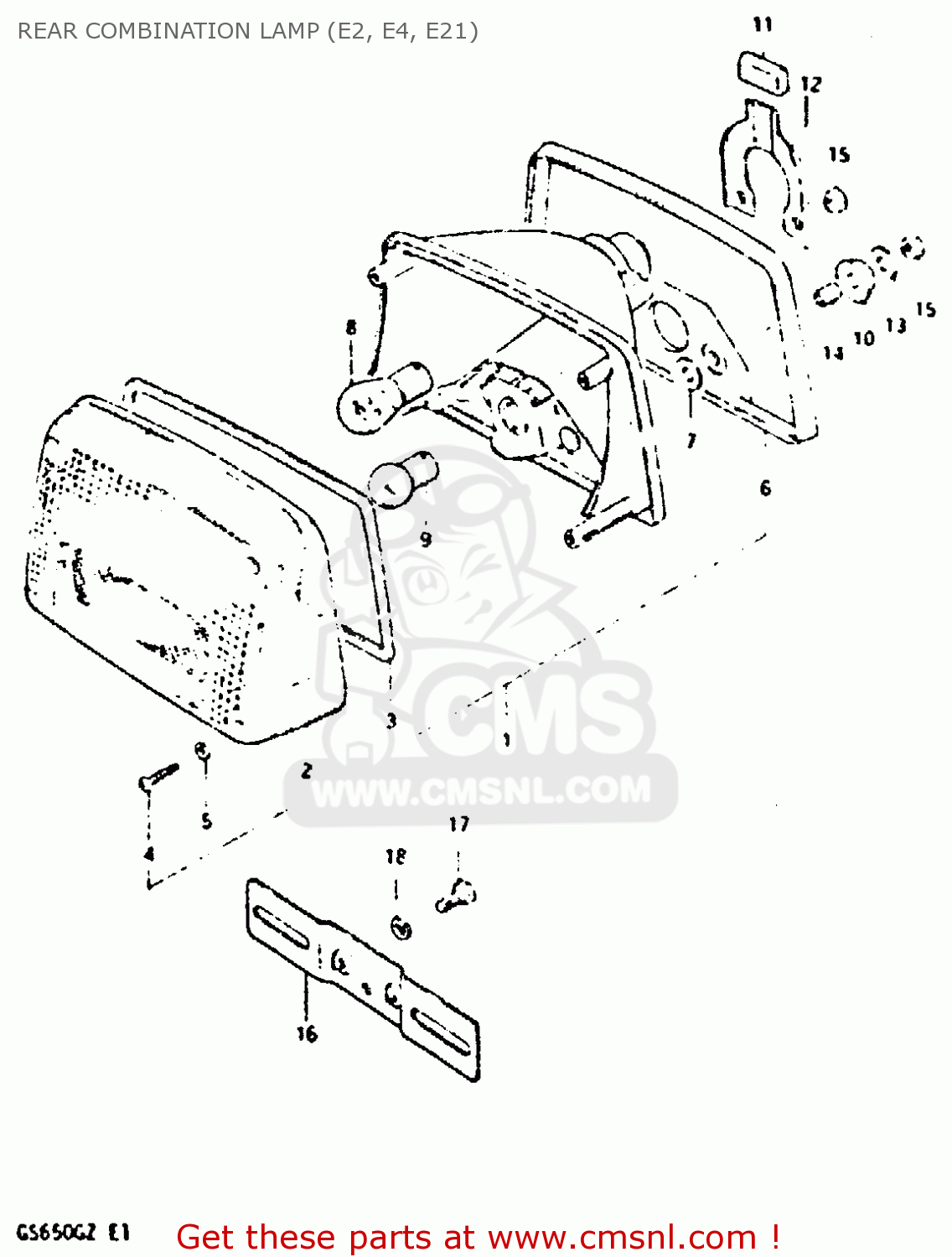

Rear combination lamp (e2, e4, e21) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3571034321
ref: 1
FROM 35710-34320

LAMP ASSY, TAIL

€ 178.00

3571249083
ref: 2

LENS

€ 43.50

3571349030
ref: 3

GASKET (NAS)

€ 12.50

3562749030
ref: 4

SCREW,REAR COMBINATION LAMP

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

3573334310
ref: 6

CUSHION,REAR COMBINATION LAMP

€ 0.00

3572734310
ref: 7

WASHER,REAR COMBINATION LAMP

€ 0.00

0947112057
ref: 8

BULB 12V21/5W

€ 6.00

0947112058
ref: 9

BULB

€ 4.00

3576426451
ref: 10
FROM 35764-26450

CUSHION,RR COMBINATION LAMP

€ 0.00

3576434300
ref: 11

CUSHION,REAR COMBINATION LAMP

€ 0.00

3579334300
ref: 12

PLATE

€ 2.50

0916006060
ref: 13

WASHER

€ 2.00

0918006090
ref: 14

SPACER (6.4X9X10.5)

€ 2.00

0831626068
ref: 15

NUT 6MM

€ 2.00

3592734310
ref: 16

BRACKET, LICENSE PLATE

€ 0.00

0110706128
ref: 17

BOLT

€ 2.00

0832121068
ref: 18

LOCK WASHER

€ 2.50

REAR COMBINATION LAMP (E2, E4, E21)

all assemblies
