HEADLAMP HOUSING - FRONT FENDER

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

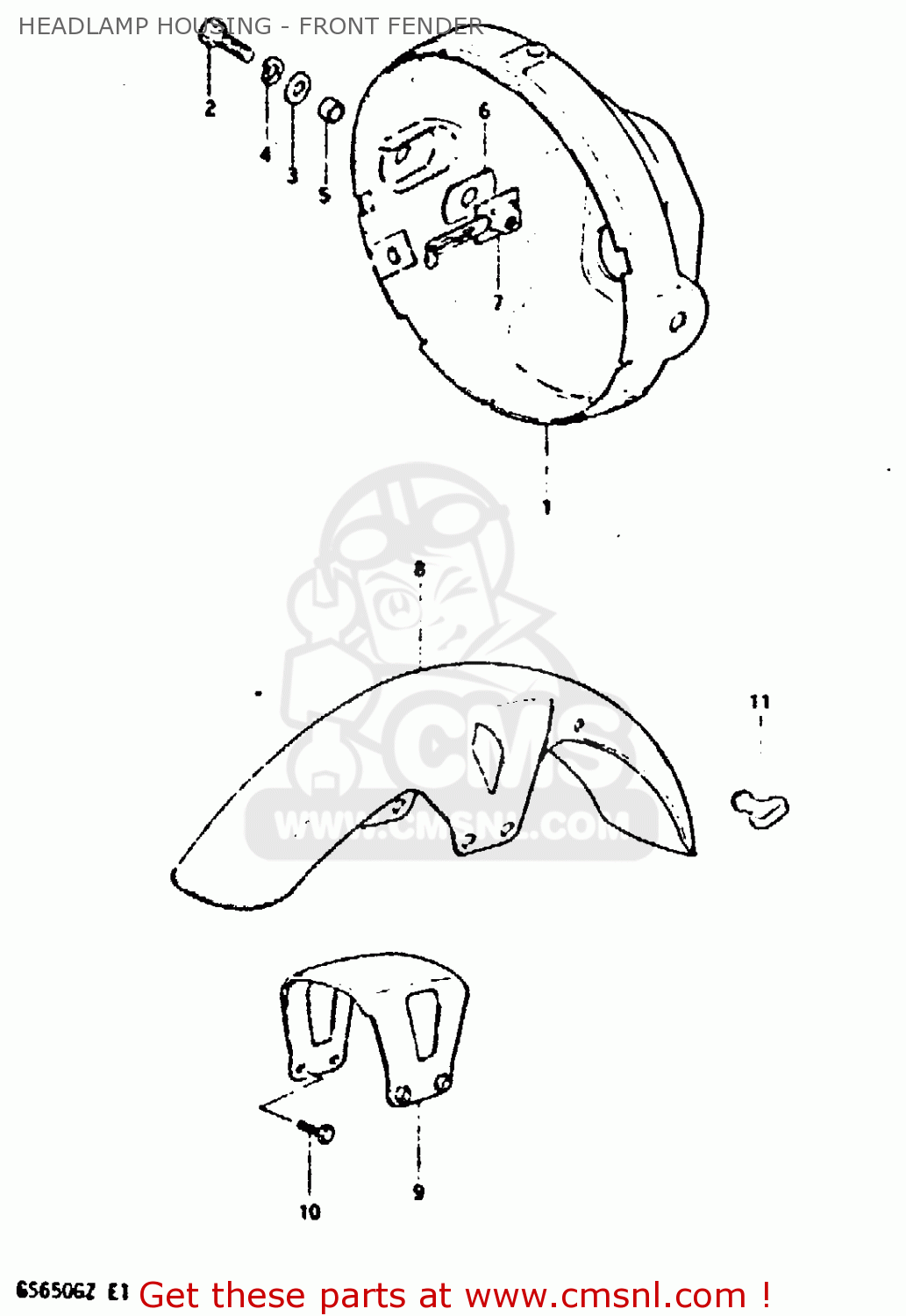

Headlamp housing - front fender diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

5181134500291
ref: 1

HOUSING,HEADLAMP

€ 60.50

0120408257
ref: 2

BOLT

€ 2.00

0832211088
ref: 3

WASHER

€ 2.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 6

CUSHION

€ 3.00

5182045000
ref: 7

PLATE,HEADLAMP HOUSING

€ 4.00

8-1

531113430080A
ref: 8-1

FENDER,FRONT

€ 135.50

8-2

531113430080T
ref: 8-2
MODEL Z

FENDER,FRONT

€ 135.50

5316034300
ref: 9

BRACE,FRONT FENDER

€ 51.50

0910008135
ref: 10

BOLT 8X16

€ 3.00

5862121203A
ref: 11

GUIDE,CABLE

€ 7.50
