REAR BRAKE

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

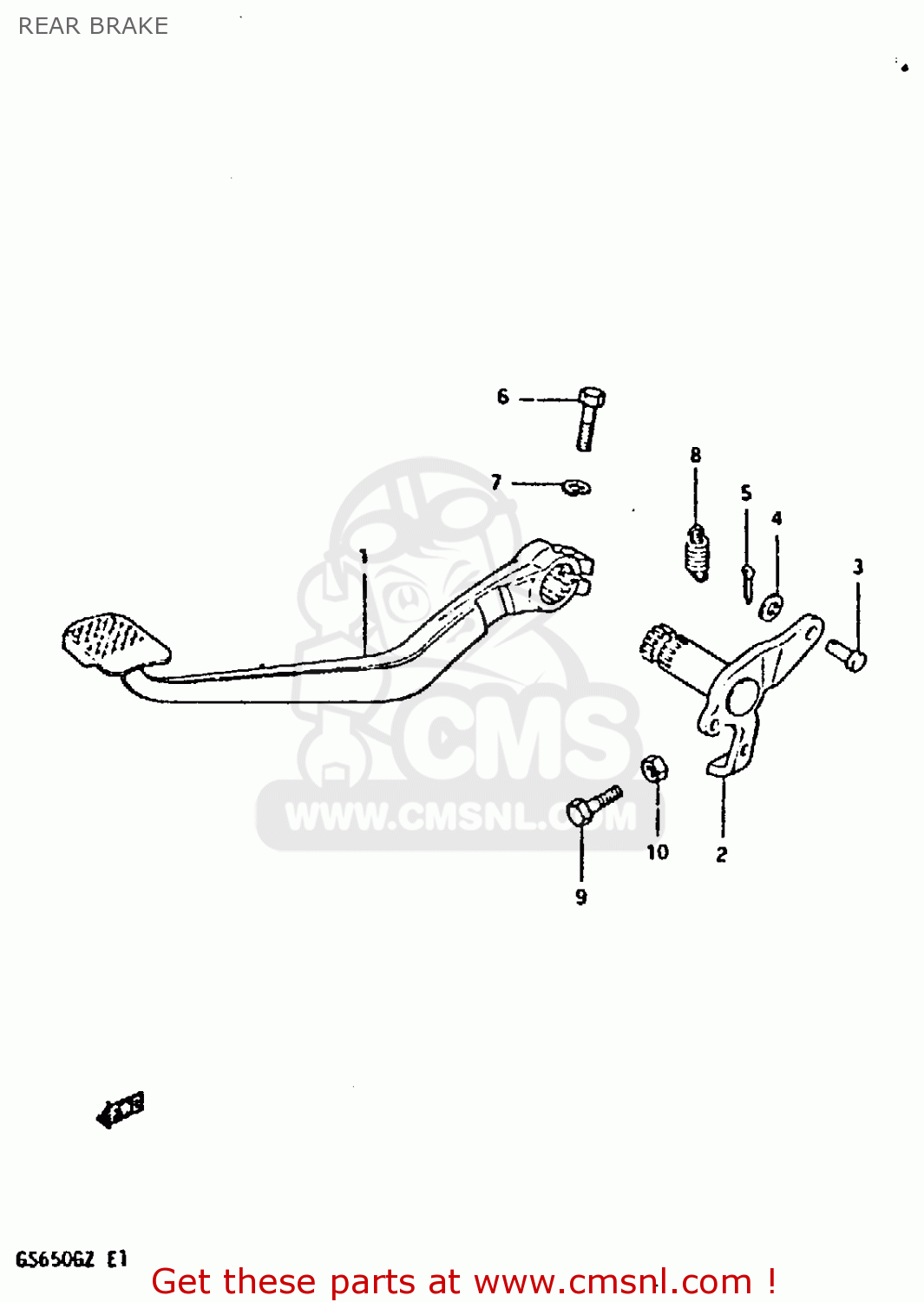

Rear brake diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

REAR BRAKE GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

REAR BRAKE GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

4311034300
ref: 1

PEDAL, BRAKE

€ 19.00

2

4312034300
ref: 2

ARM,BRAKE PEDAL ROD

€ 0.00

3

0920006029
ref: 3

PIN

€ 1.50

4

0832221068
ref: 4

WASHER

€ 2.00

5

0411120158
ref: 5

PIN

€ 1.50

6

0110708258
ref: 6

BOLT

€ 2.50

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

0944314013
ref: 8

SPRING

€ 21.50

9

0110706208
ref: 9

BOLT

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50
