FOOTREST (MODEL Z)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

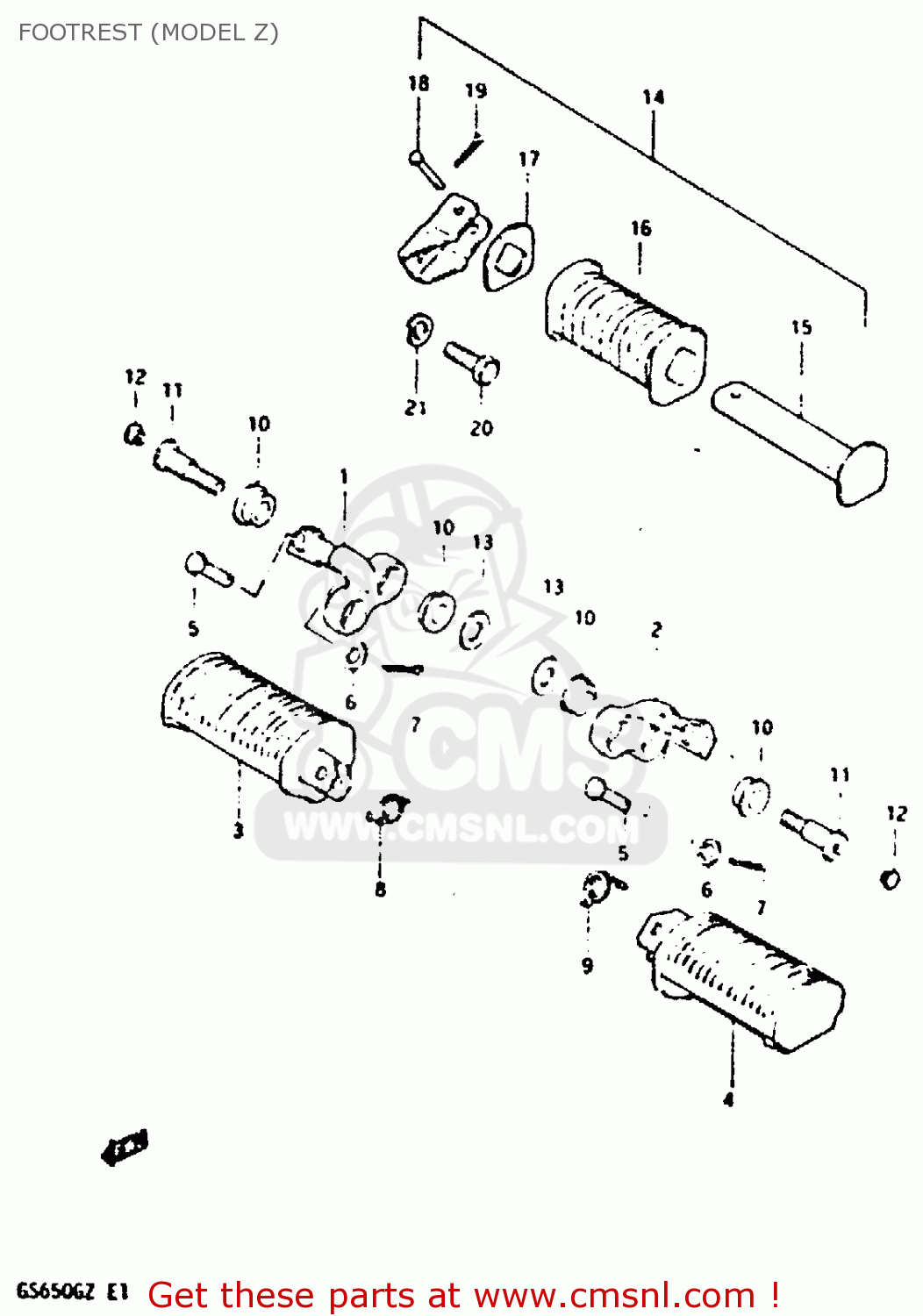

Footrest (model z) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

FOOTREST (MODEL Z) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

FOOTREST (MODEL Z) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

4351034310291
ref: 1

BAR, FOOTREST RH (BLACK)

€ 17.50

2

4352034310291
ref: 2

BAR, FOOTREST LH (BLACK)

€ 44.50

3

4355034510
ref: 3

RUBBER,FOOTREST

€ 36.00

4

4356034510
ref: 4

FOOTREST

€ 37.00

5

0920008002
ref: 5

PIN

€ 2.00

6

0832211088
ref: 6

WASHER

€ 2.00

7

0411120208
ref: 7

PIN 20X20

€ 1.50

8

0944819012
ref: 8

SPRING

€ 6.00

9

0944819013
ref: 9

SPRING

€ 4.00

10

0930514004
ref: 10

BUSH

€ 6.00

11

0910610009
ref: 11

BOLT

€ 4.00

12

4357534500
ref: 12

CAP

€ 1.50

13

0916010062
ref: 13

WASHER(10.2X28X2.3)

€ 4.50

14-1

4360034300
ref: 14-1

FOOTREST ASSEMBLY,REAR,RIGHT

€ 20.50

14-2

4370034300
ref: 14-2

FOOTREST ASSEMBLY,REAR,LEFT

€ 19.00

15-1

4361045001
ref: 15-1

BAR,REAR FOOTREST,RIGHT

€ 21.50

15-2

4362045001
ref: 15-2

BAR,REAR FOOTREST,LEFT

€ 13.50

16

4361249201
ref: 16

RUBBER,PILLION FOOTREST

€ 30.50

17

4363145001
ref: 17

WASHER,PILLION FOOTREST RUBBER

€ 16.00

18

0920006010
ref: 18

PIN

€ 2.50

19

0411120208
ref: 19

PIN 20X20

€ 1.50

20

0110710208
ref: 20

BOLT 10X20

€ 3.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00
