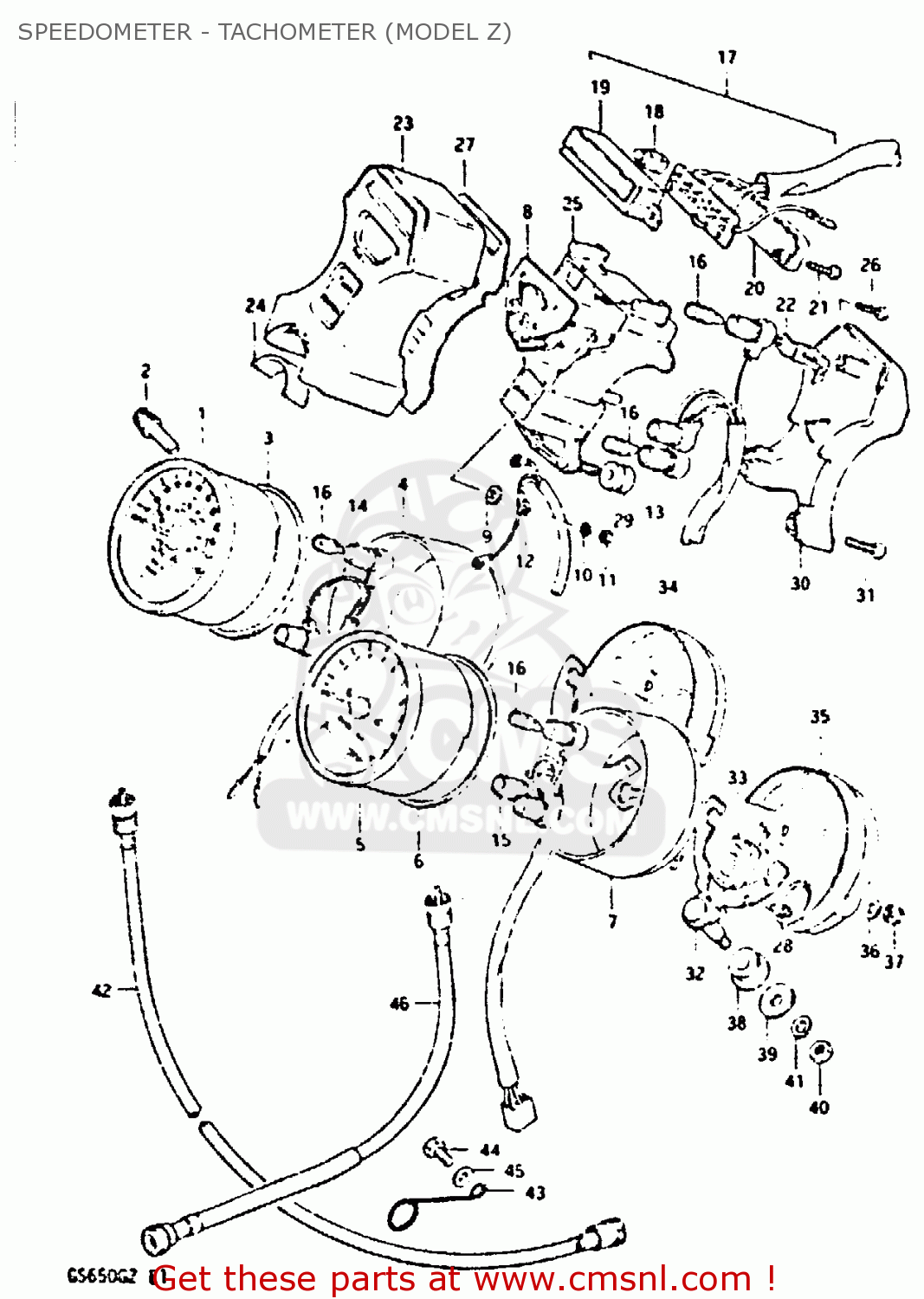

SPEEDOMETER - TACHOMETER (MODEL Z) - GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

ref

part #

description

quantity

1-1

3411034580
ref: 1-1
MILE & KILO SCALE

SPEEDOMETER (MILE/KILO)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418933220
ref: 3

CUSHION,SPEEDOMETER

€ 10.00

4

3415133220
ref: 4

COVER,SPEEDOMETER

€ 15.00

5

3421034560
ref: 5

TACHOMETER

€ 392.00

6

3418933220
ref: 6

CUSHION,SPEEDOMETER

€ 10.00

7

3425133220
ref: 7

COVER,TACHOMETER

€ 15.50

8

3432033220
ref: 8

METER,FUEL

€ 90.50

9

3438433220
ref: 9

WASHER,FUEL METER

€ 2.00

10

0832121038
ref: 10

LOCK WASHER

€ 1.50

11

0831022038
ref: 11

NUT

€ 2.00

12

3437833220
ref: 12

LEAD WIRE, FUELMETER

€ 23.00

13-1

3632534560
ref: 13-1

SOCKET

€ 0.00

13-2

NOTUSED
ref: 13-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14-1

3417334560
ref: 14-1

SOCKET,METER

€ 0.00

14-2

NOTUSED
ref: 14-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

3427333220
ref: 15

SOCKET,TACHOMETER

€ 30.00

16-1

0947112028
ref: 16-1

BULB(12V3.4W,T10)

€ 3.50

16-2

0947112077
ref: 16-2

BULB(12V1.7W,T10,WB121)

€ 1.00

17

3645045101
ref: 17

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

18

0947112071
ref: 18

BULB(14V1.12W)

€ 5.00

19

3645245100
ref: 19

CASE,GEAR INDICATOR

€ 14.50

20

3645445100
ref: 20

COVER,LWR

€ 7.00

21

3645645100
ref: 21

SCREW,GEAR INDICATOR

€ 2.00

22

3649433220
ref: 22

CLAMP,CORD

€ 3.00

23

3638133220
ref: 23

CASE,PILOT BOX

€ 82.00

24

3499347000
ref: 24

SEAL,IGNITION SWITCH

€ 3.00

25

3638233220
ref: 25

CASE,PILOT BOX,INNER

€ 39.00

26

3645633220
ref: 26

SCREW,INDICATOR

€ 1.50

27

3638633220
ref: 27

PLATE,PILOT BOX

€ 18.50

28

3419144310
ref: 28

CUSHION

€ 3.00

29

3638445300
ref: 29

CUSHION,PILOT BOX

€ 3.50

30

3638333220
ref: 30

COVER,PILOT BOX,UNDER

€ 25.00

31

0211204168
ref: 31

SCREW

€ 1.00

32

3495047456
ref: 32

BRACKET

€ 0.00

33

3418944310
ref: 33

CUSHION,METER

€ 2.50

34

3419347750
ref: 34

COVER,SPEEDOMETER,UNDER

€ 53.50

35

3429347750
ref: 35

COVER,TACHOMETER,UNDER

€ 31.00

36

0832221058
ref: 36

WASHER

€ 2.50

37

0831311057
ref: 37

NUT

€ 1.50

38

3495631001
ref: 38

CUSHION,METER BRACKET

€ 4.50

39

0916008002
ref: 39

WASHER (8.5X29X1.6)

€ 2.00

40

0831012088
ref: 40

NUT

€ 2.00

41

0832121088
ref: 41

LOCK WASHER

€ 2.00

42

3491047311
ref: 42

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

43

3493845100
ref: 43

CLAMP,SPEEDOMETER CABLE

€ 14.50

44

0110706168
ref: 44

BOLT, UPPER

€ 3.00

45

0832221068
ref: 45

WASHER

€ 2.00

46

3494034311
ref: 46

CABLE ASSEMBLY,TACHOMETER

€ 20.50
