STEERING STEM (MODEL Z)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

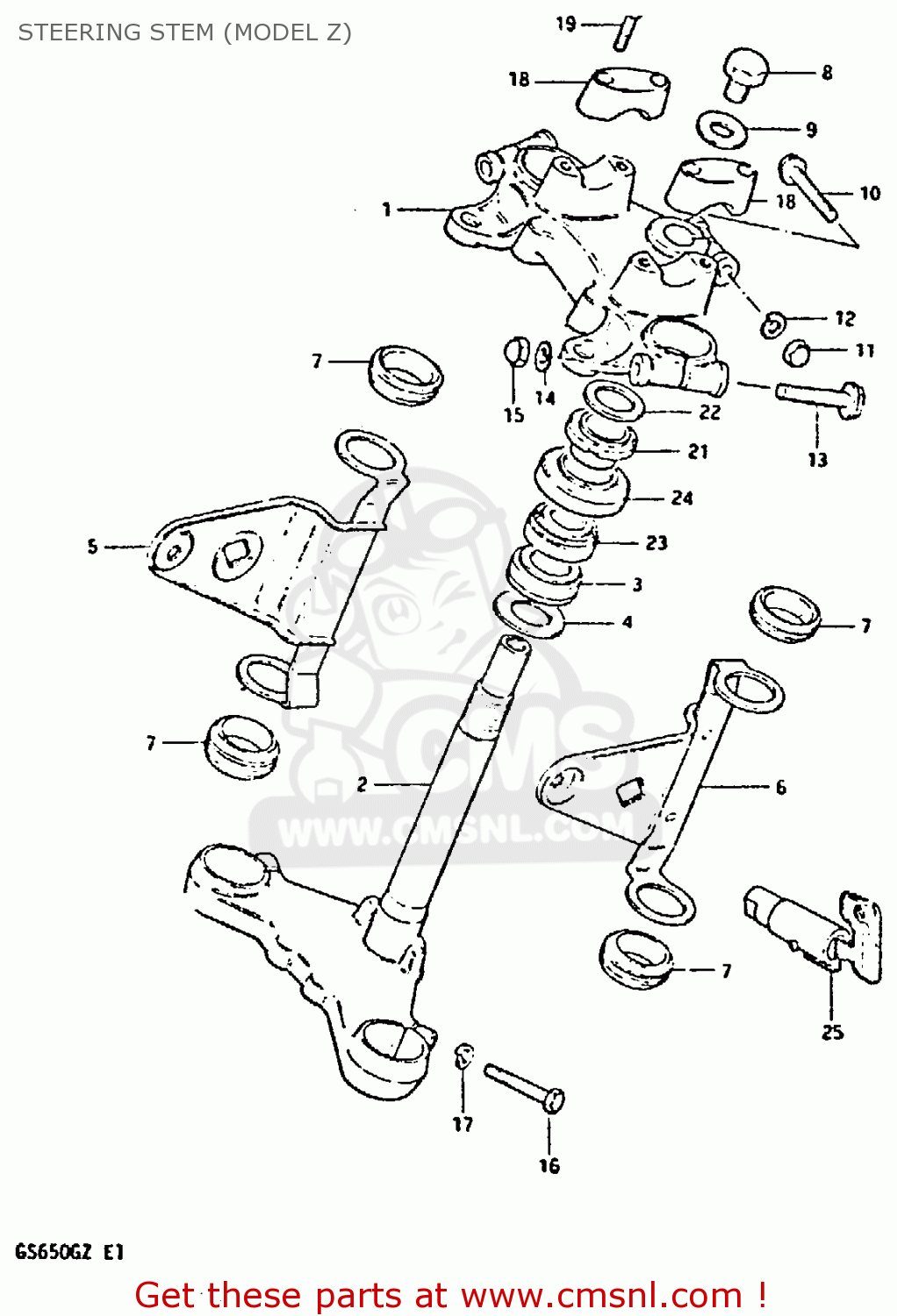

Steering stem (model z) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

STEERING STEM (MODEL Z) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
STEERING STEM (MODEL Z) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
STEERING STEM (MODEL Z) GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
5131134210291
ref: 1
BLACK
STEM HEAD, STEERING (BLACK)
5131134210291
€ 87.50
2-1
5140134840
ref: 2-1
STEM, STEERING
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153034200291
ref: 5
BLACK
BRACKET,HEADLAMP,RIGHT
5153034200291
€ 57.50
6
5154034200291
ref: 6
BLACK
BRACKET,HEADLAMP,LEFT
5154034200291
€ 43.00
7
5155334300
ref: 7
CUSHION,HEADLAMP BRACKET
5155334300
€ 4.50
8
0910412015
ref: 8
BOLT 12X20
€ 4.00
9
0916012048
ref: 9
WASHER (12.5X26X1.6)
0916012048
€ 2.00
10
0151708508
ref: 10
BOLT
0151708508
€ 3.50
11
0831311085
ref: 11
NUT,M8X1.25X12
€ 2.00
12
0832121085
ref: 12
LOCK WASHER
€ 2.50
13
0151710558
ref: 13
BOLT 10X55
€ 3.00
14
0832131108
ref: 14
LOCK WASHER
€ 2.00
15
0914510002
ref: 15
NUT
0914510002
€ 4.00
16
0110710408
ref: 16
BOLT 10X40
0110710408
€ 3.00
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
5621134300291
ref: 18
BLACK
HOLDER,HANDLEBAR(BLACK)
5621134300291
€ 42.00
19
0910608013
ref: 19
BOLT
€ 3.00
20
0925006004
ref: 20
CAP(OD:14.5)
0925006004
€ 1.50
21
5163134200
ref: 21
NUT,STEERING STEM
5163134200
€ 23.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
0916018002
€ 2.00
23
0926525008
ref: 23
TAPER,ROLLER BEARING
0926525008
€ 48.50
24
5164340502
ref: 24
DUST SEAL,STEERING UPR
5164340502
€ 8.00
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
