CRANKCASE COVER

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

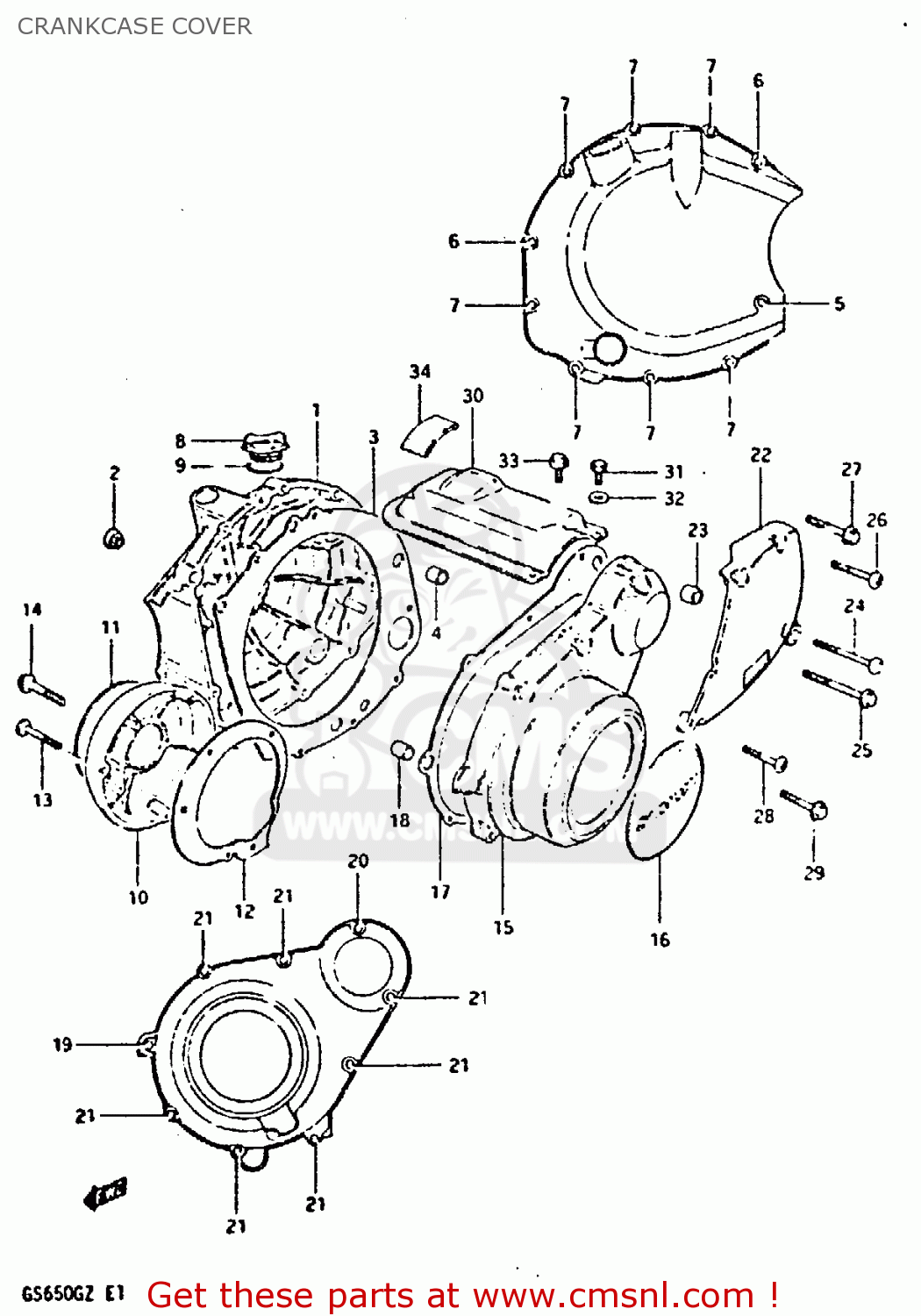

Crankcase cover diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CRANKCASE COVER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKCASE COVER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
CRANKCASE COVER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1134034300
ref: 1-1
~E.NO.116043
COVER, CLUTCH
€ 91.50
1-2
1134034301
ref: 1-2
E.NO.116044~
COVER, CLUTCH
€ 91.50
1-3
1134034302
ref: 1-3
COVER, CLUTCH
€ 91.50
2-1
1197145010
ref: 2-1
FOR 11340-34300, 113
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
2-2
1197133210
ref: 2-2
FOR 11340-34302
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148234200
ref: 3
GASKET,CLUTCH COVER (MCA)
1148234200
€ 14.50
4
0421109129
ref: 4
PIN
0421109129
€ 2.00
5-1
0211206658
ref: 5-1
SCREW 6X65
0211206658
€ 2.00
5-2
0154706658
ref: 5-2
BOLT (6X65)
0154706658
€ 2.00
6-1
0211206408
ref: 6-1
SCREW
€ 2.00
6-2
0154706408
ref: 6-2
BOLT (6X40)
0154706408
€ 2.50
7-1
0211206308
ref: 7-1
SCREW 6X30
€ 2.50
7-2
0154706308
ref: 7-2
BOLT (6X30)
0154706308
€ 2.50
8
0925930003
ref: 8
PLUG
0925930003
€ 8.50
9
0928027002
ref: 9
O-RING
0928027002
€ 3.00
10-1
1138134300
ref: 10-1
~E.NO.116043
COVER, CONTACT BREAKER
1138134300
€ 49.00
10-2
1138134301
ref: 10-2
E.NO.116044~
COVER,CONTACT
1138134301
€ 49.00
11
6823534200
ref: 11
EMBLEM,CONTACT BREAKER COVER
6823534200
€ 22.50
12
1149149200
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
1149149200
€ 14.50
13
0211205308
ref: 13
SCREW
0211205308
€ 1.50
14
0154405308
ref: 14
BOLT (5*30)
€ 2.00
15-1
1135134300
ref: 15-1
~E.NO.116043
COVER, GENERATOR
€ 189.00
15-2
1135134301
ref: 15-2
E.NO.116044~
COVER, GENERATOR
€ 189.00
16
6823334200
ref: 16
EMBLEM,MAGNETO COVER
6823334200
€ 28.50
17
1148334200
ref: 17
GASKET,MAGNETO COVER (MCA)
1148334200
€ 17.00
18
0920613001
ref: 18
PIN
0920613001
€ 2.50
19-1
0211206458
ref: 19-1
SCREW (6X45)
0211206458
€ 2.00
19-2
0154706458
ref: 19-2
BOLT
0154706458
€ 2.50
20-1
0211206358
ref: 20-1
SCREW (6X35)
€ 2.50
20-2
0154706358
ref: 20-2
BOLT (6X35)
€ 2.50
21-1
0211206308
ref: 21-1
SCREW 6X30
€ 2.50
21-2
0154706308
ref: 21-2
BOLT (6X30)
0154706308
€ 2.50
22-1
1136034300
ref: 22-1
~E.NO.116043
COVER, SECONDARY DRIVE UNIT
€ 0.00
22-2
1136034301
ref: 22-2
E.NO.116044~
COVER, SECONDARD DRIVE UNIT
€ 0.00
23
0421109129
ref: 23
PIN
0421109129
€ 2.00
24
0211206408
ref: 24
SCREW
€ 2.00
25
0154706408
ref: 25
BOLT (6X40)
0154706408
€ 2.50
26
0211206308
ref: 26
SCREW 6X30
€ 2.50
27
0154706308
ref: 27
BOLT (6X30)
0154706308
€ 2.50
28
0211206258
ref: 28
SCREW
€ 2.00
29
0154706258
ref: 29
BOLT
0154706258
€ 2.50
30
1138234200
ref: 30
COVER
€ 16.50
31
0110405088
ref: 31
BOLT 5X16
€ 2.00
32
0832221058
ref: 32
WASHER
€ 2.50
33
0154405088
ref: 33
BOLT (5*8)
€ 2.00
34
1136234200
ref: 34
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
