CYLINDER

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

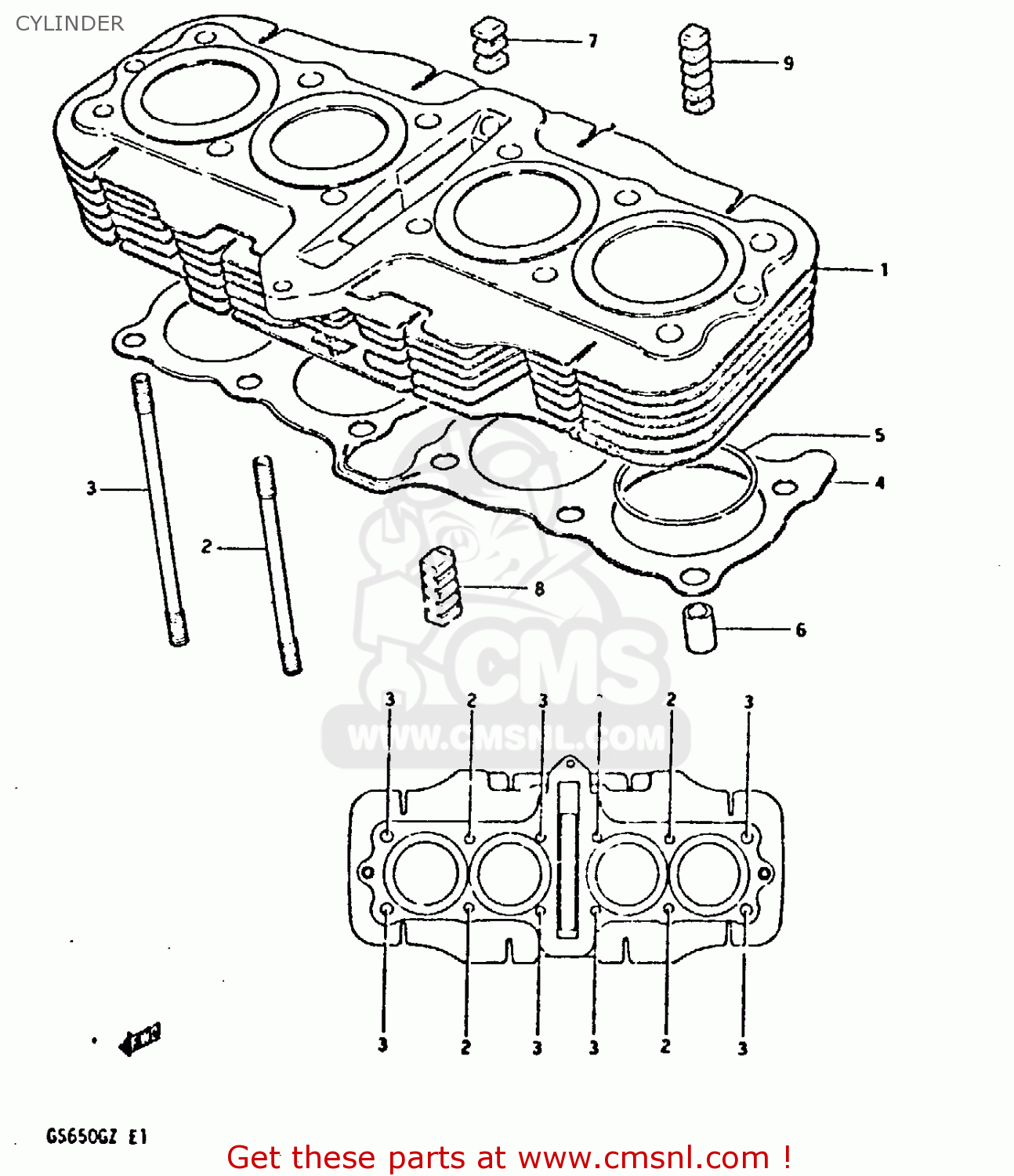

Cylinder diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CYLINDER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

CYLINDER GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1121034202
ref: 1

CYLINDER

€ 0.00

2

0910808061
ref: 2

BOLT,STUD

€ 7.00

3

0910808062
ref: 3

BOLT,STUD

€ 4.50

4

1124134201
ref: 4

GASKET,CYLINDER (MCA)

€ 24.00

5

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

6

0920613001
ref: 6

PIN

€ 2.50

7

1125134200
ref: 7

PAD,CYLINDER

€ 6.50

8

1125234200
ref: 8

PAD,CYLINDER

€ 6.50

9

1125334200
ref: 9

PIN,EXHAUST VALVE

€ 6.50
