HEADLAMP (E2)

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

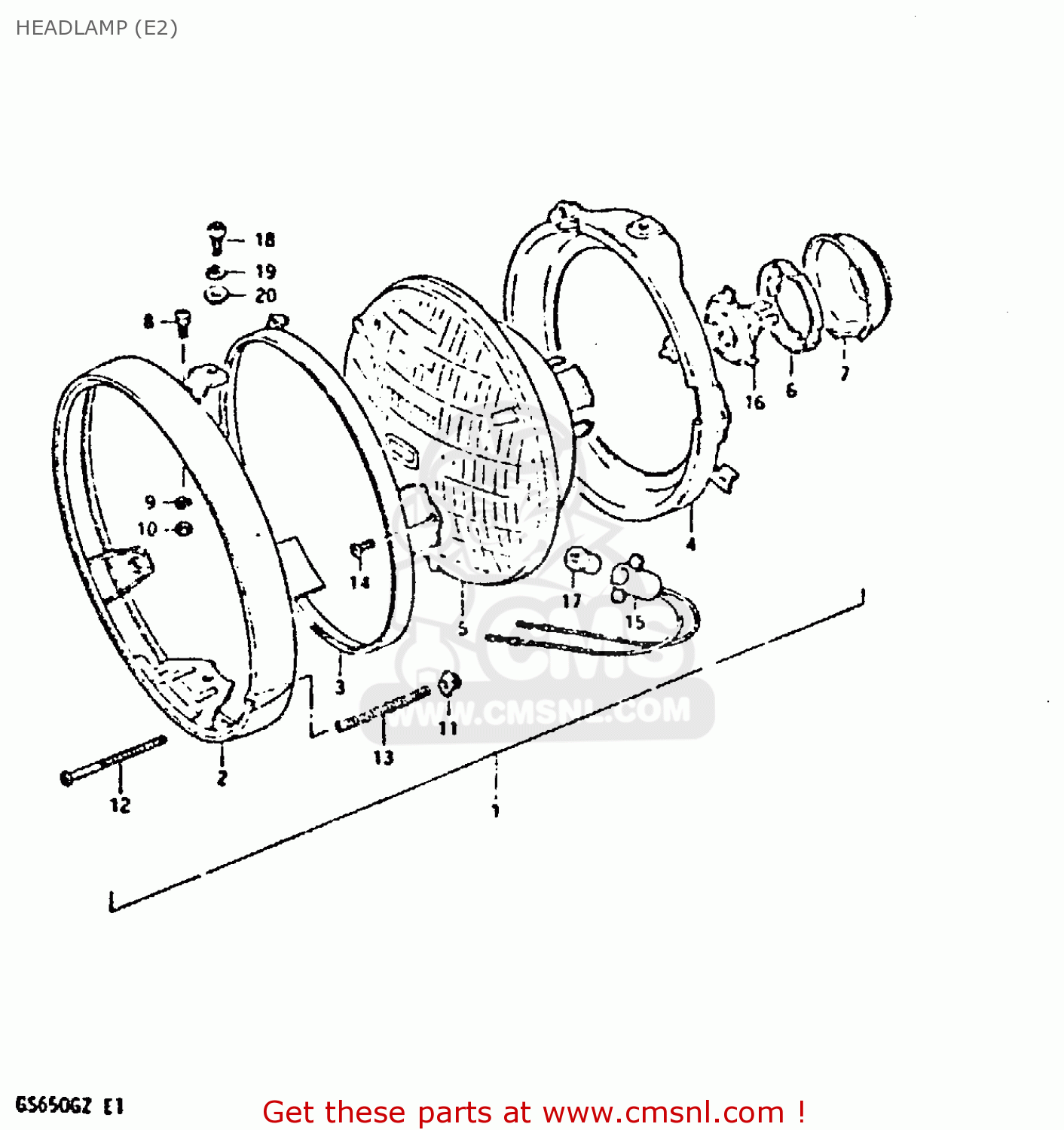

Headlamp (e2) diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3510034300999
ref: 1

HEADLAMP ASSY

€ 173.00

3511134330
ref: 2

RIM,HEADLAMP

€ 62.50

3512745030
ref: 3

RETAINING RING

€ 19.50

3513045030
ref: 4

RING

€ 29.50

3512134300
ref: 5

LAMP UNIT

€ 115.00

3513634400
ref: 6

SETTING,BULB

€ 4.50

3517345000
ref: 7

COVER,HEADLAMP SOCKET

€ 14.50

3518115611
ref: 8

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832121058
ref: 9

LOCK WASHER

€ 2.00

0831011048
ref: 10

NUT

€ 2.00

3515215611
ref: 11

NUT

€ 3.50

3515145030
ref: 12

SCREW,HEADLAMP ADJUST

€ 4.00

3515431900
ref: 13

SPRING,ADJUSTING

€ 3.50

0211204088
ref: 14

SCREW

€ 1.50

3611828660
ref: 15

SOCKET

€ 11.50

0947112060
ref: 16
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

0947112001
ref: 17
EXECUTED LOCALLY

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

0912505022
ref: 18

SCREW

€ 3.50

0916205003
ref: 19

WASHER,LOCK

€ 2.00

0916906021
ref: 20

WASHER

€ 2.50
