WIRING HARNESS

GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

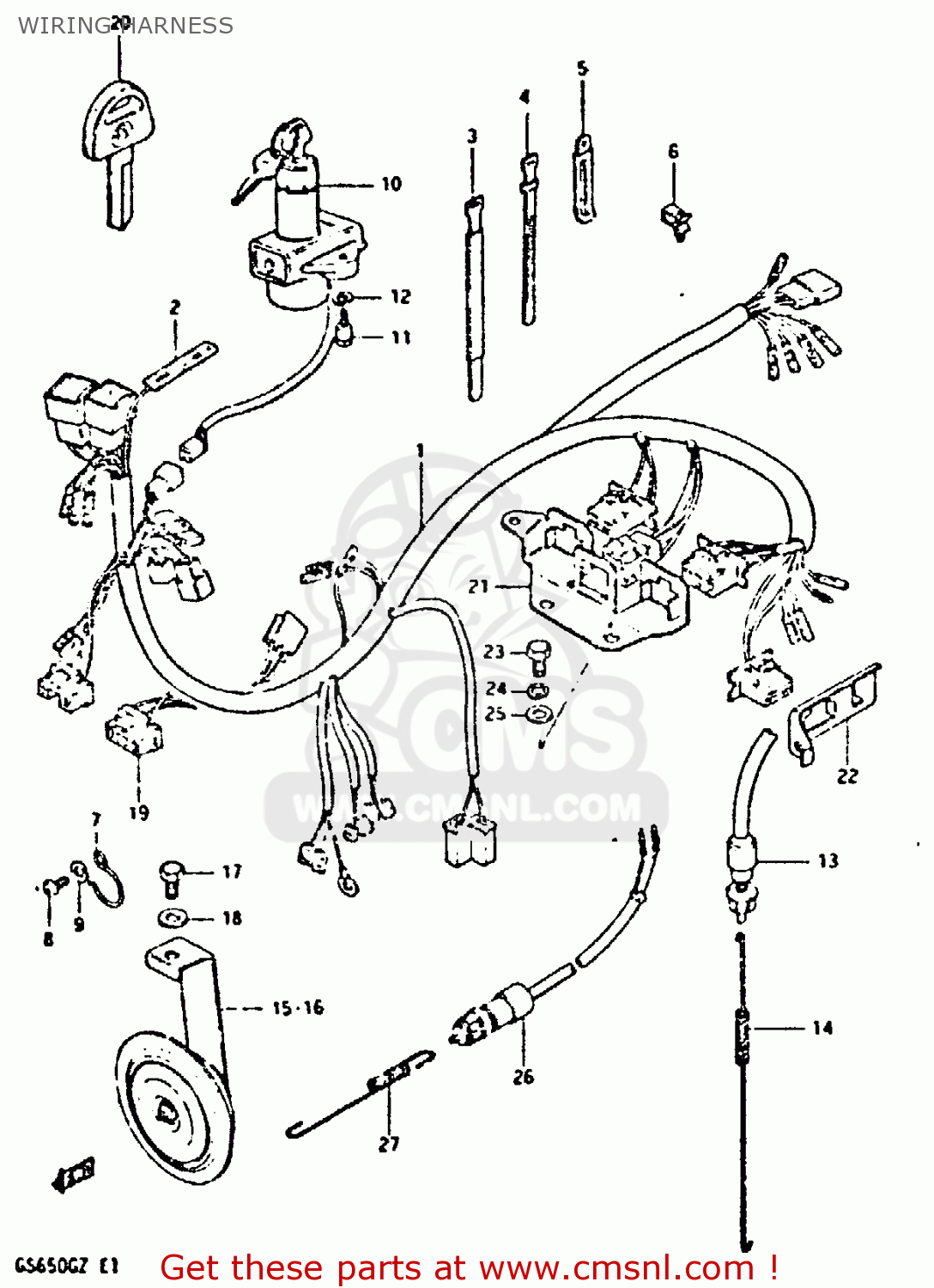

Wiring harness diagram GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)

WIRING HARNESS GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
WIRING HARNESS GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
WIRING HARNESS GS650G 1982 (Z) (E01 E02 E04 E06 E16 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3661034300
ref: 1-1
MODEL X
WIRING HARNESS
€ 0.00
1-2
3661034310
ref: 1-2
MODEL Z
WIRING HARNESS
€ 0.00
2
3661102100
ref: 2
MODEL Z
DIODE
3661102100
€ 6.00
3
0940718301
ref: 3
CLAMP
0940718301
€ 6.00
4
0940714401
ref: 4
CLAMP
0940714401
€ 3.00
5
0940406414
ref: 5
CLAMP
€ 3.00
6
0940305305
ref: 6
CLIP
0940305305
€ 3.00
7
3661944000
ref: 7
GUIDE,WIRING HARNESS
3661944000
€ 2.50
8
0211206128
ref: 8
SCREW 6X12
0211206128
€ 2.00
9
0832221068
ref: 9
WASHER
0832221068
€ 2.00
10-1
3710047011
ref: 10-1
LOCK ASSEMBLY,STEERING
3710047011
€ 127.50
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
3715247010
ref: 11
BOLT
€ 3.00
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
3774004571
ref: 13
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14
0944306018
ref: 14
SPRING
0944306018
€ 4.50
15-1
3850034320
ref: 15-1
MODEL X
HORN
€ 51.50
15-2
NOTUSED
ref: 15-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15-3
NOTUSED
ref: 15-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-1
3850047711
ref: 16-1
MODEL Z
HORN ASSEMBLY
€ 51.50
16-2
NOTUSED
ref: 16-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0110708128
ref: 17
BOLT 8X12
0110708128
€ 2.50
18
0832211088
ref: 18
WASHER
0832211088
€ 2.00
19
3685234000
ref: 19
MODEL X
LEAD WIRE,HEADLAMP
3685234000
€ 13.00
20
3714647010
ref: 20
OPT
KEY,BLANK
3714647010
€ 15.00
21
4745034200
ref: 21
PLATE, COUPLER HOLDER (A)
€ 0.00
22
4745234200
ref: 22
PLATE, COUPLER HOLDER (B)
€ 8.50
23
0110706128
ref: 23
BOLT
0110706128
€ 2.00
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
0832221068
ref: 25
WASHER
0832221068
€ 2.00
26
3784034500
ref: 26
MODEL Z
SWITCH ASSEMBLY,SIDE STAND
€ 14.00
27
0944306005
ref: 27
MODEL Z
SPRING
0944306005
€ 6.00
