AIR CLEANER

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

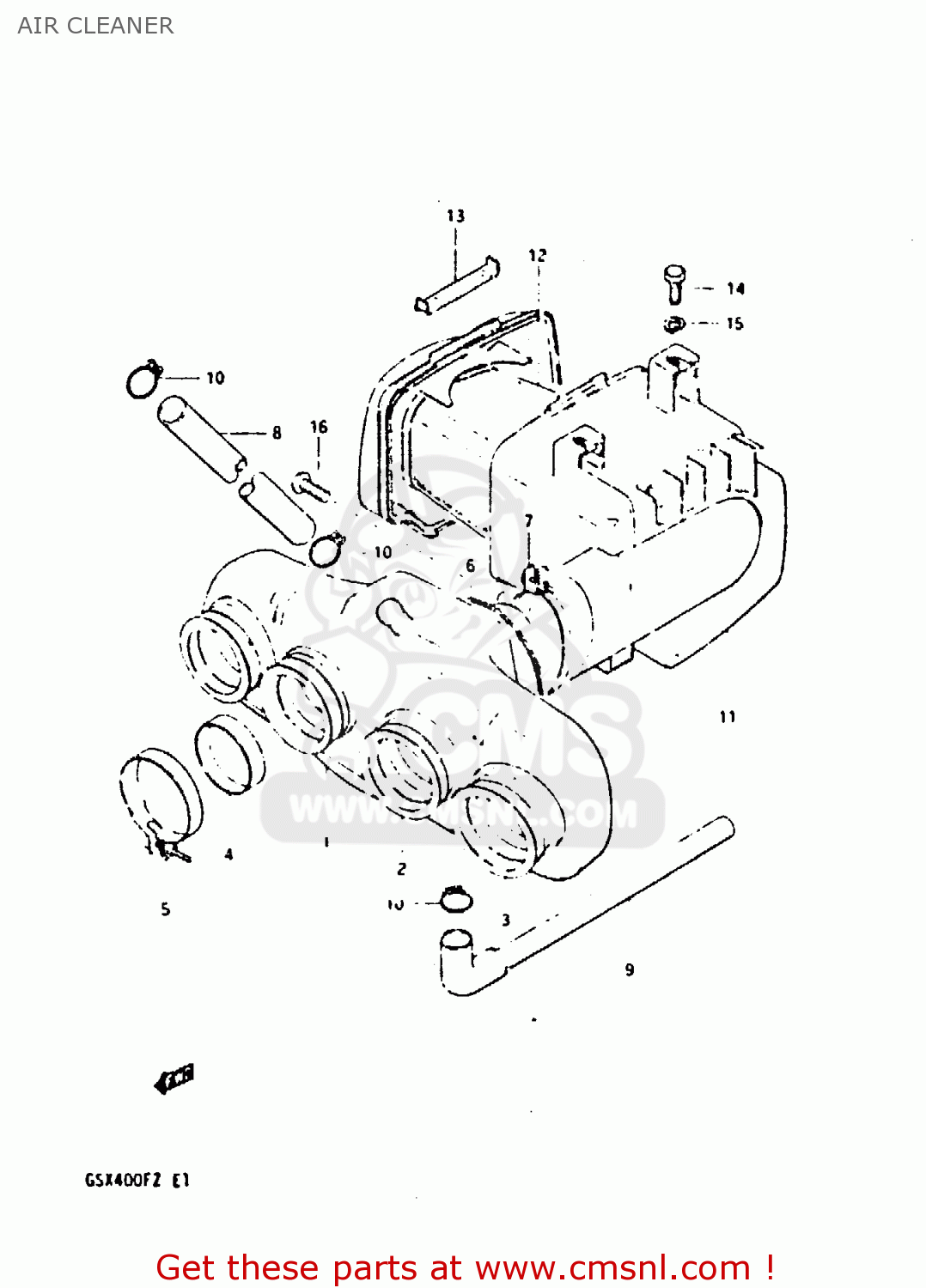

Air cleaner diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

AIR CLEANER GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

AIR CLEANER GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1

1371033200
ref: 1

CASE ASSY, FRONT

€ 86.50

2

1388133200
ref: 2

TUBE,INNER

€ 15.00

3

1368233200
ref: 3

TUBE, OUTLET OUTER

€ 0.00

4

1388533200
ref: 4

RING,CARBURETOR AIR IN

€ 9.00

5

0940258306
ref: 5

CLAMP

€ 5.00

6

1380134200
ref: 6

JOINT,HOSE AIR CLEANER

€ 8.00

7

0940284206
ref: 7

CLAMP

€ 7.00

8

1385100260
ref: 8

TUBE,BREATHER

€ 13.50

9

1387000080
ref: 9

DRAIN TUBE

€ 16.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

1370033810
ref: 11

CASE SET, REAR

€ 80.50

12

1378034200
ref: 12

FILTER ASSY

€ 43.50

13

1382100011
ref: 13

SLIDER

€ 3.50

14

0110706168
ref: 14

BOLT, UPPER

€ 3.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

0214206167
ref: 16

SCREW

€ 2.00
