REAR SWINGING ARM

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

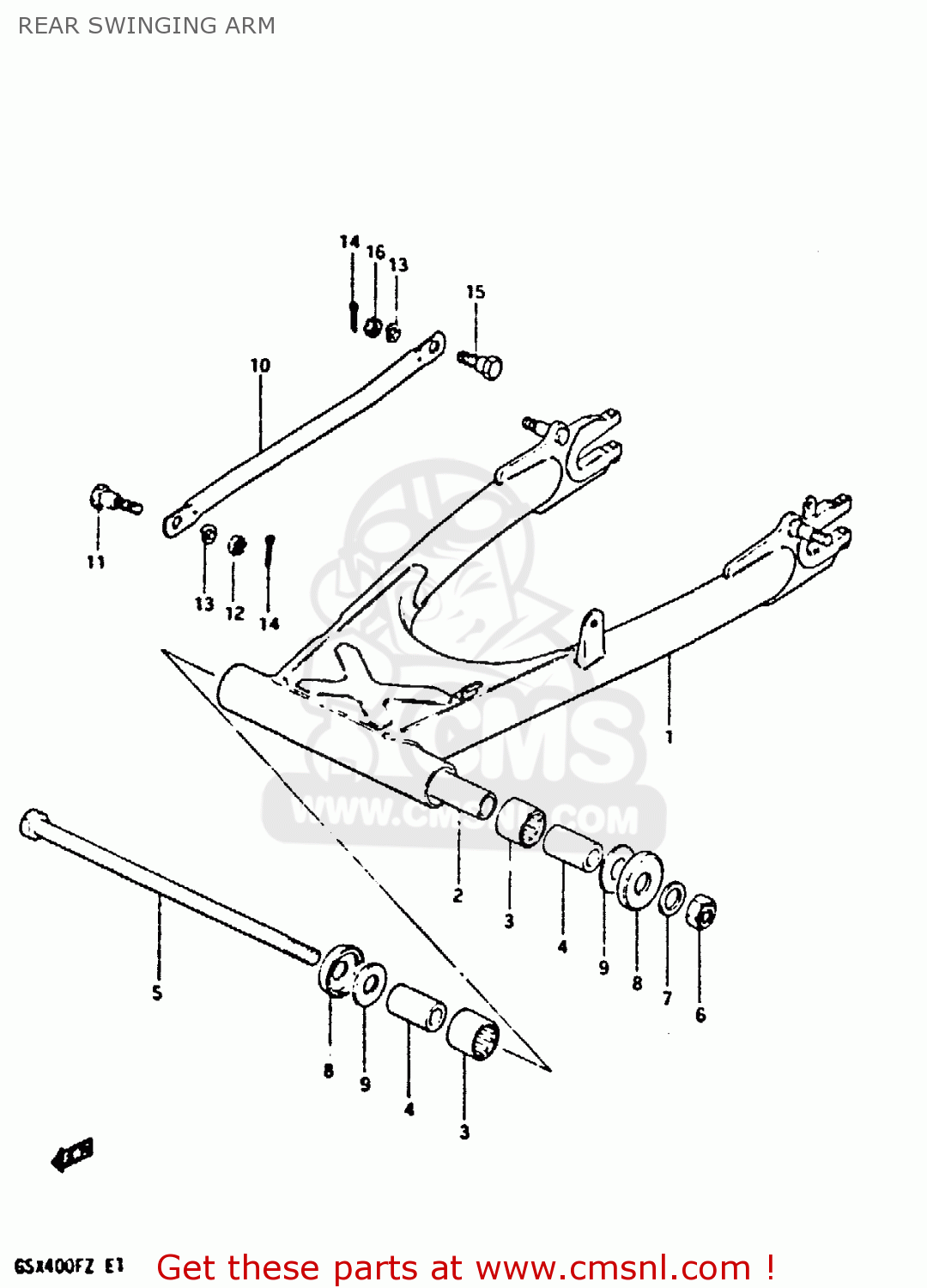

Rear swinging arm diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

6110033831019
ref: 1

REAR SWINGING ARM

€ 199.00

6128145001
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 18.50

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121145400
ref: 5

SHAFT,REAR SWING ARM

€ 49.00

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

10-1

6431131001
ref: 10-1
MODEL X

TORQUE LINK,REAR

€ 28.00

10-2

6431131001019
ref: 10-2
MODEL Z

TORQUE LINK,REAR

€ 28.00

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

0831022108
ref: 12

NUT

€ 2.50

0832121108
ref: 13

LOCK WASHER

€ 2.00

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110003
ref: 15

BOLT(10X31)

€ 6.50

0831011108
ref: 16

NUT

€ 2.50
