SEAT TAIL COVER (MODEL Z)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

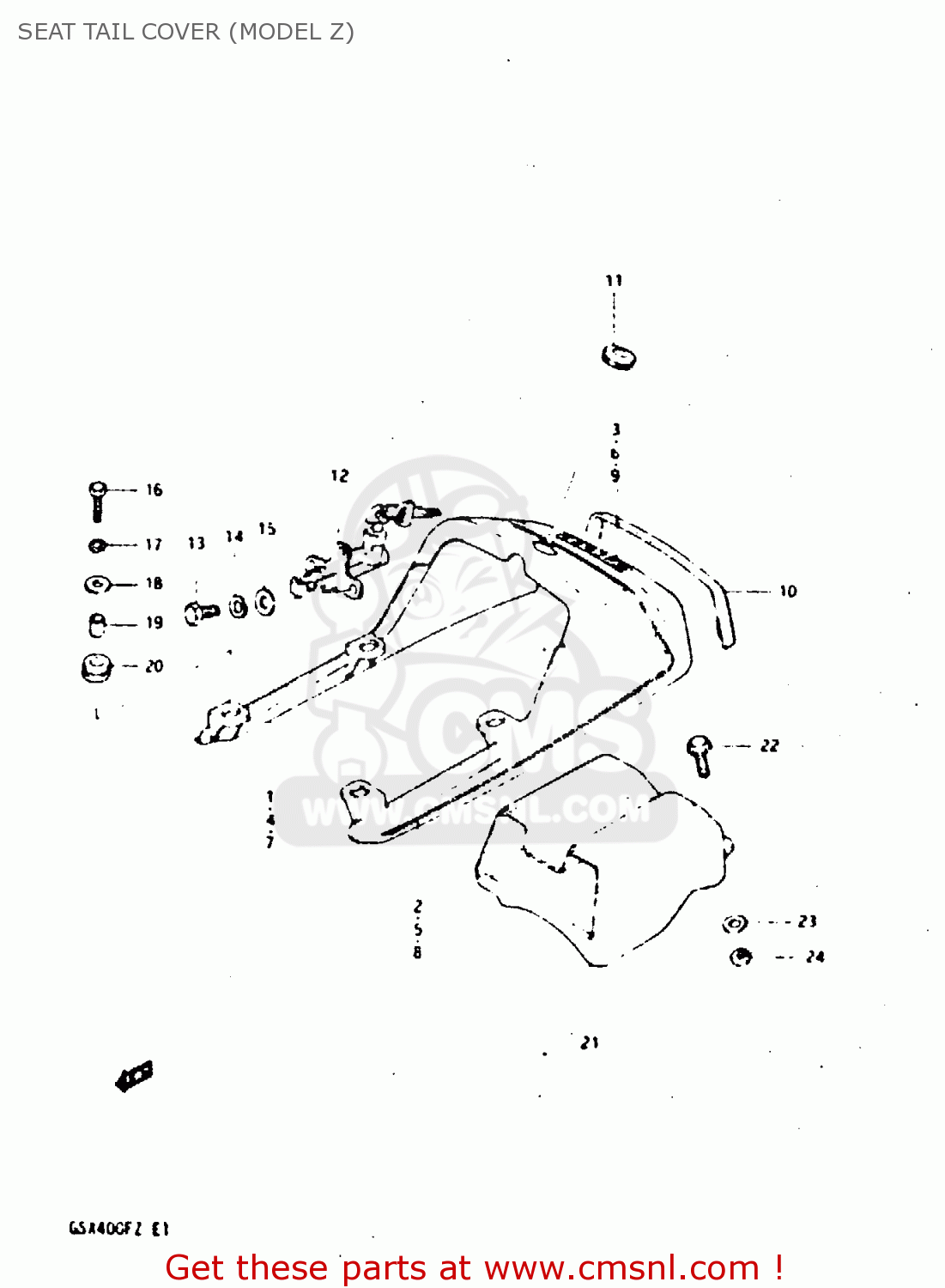

Seat tail cover (model z) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

SEAT TAIL COVER (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
SEAT TAIL COVER (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
SEAT TAIL COVER (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1-1
455113320008E
ref: 1-1
COVER,SEAT TAI
€ 80.00
1-2
455113320005H
ref: 1-2
COVER, SEAT TAIL (BLUE)
€ 80.00
2
681603322072H
ref: 2
TAPE SET
€ 31.00
3
6816633200742
ref: 3
EMBLEM,SEAT TAIL(SILVER)
6816633200742
€ 2.00
4
455113320013L
ref: 4
COVER, SEAT TAIL (SILVER)
€ 80.00
5
681603322070J
ref: 5
TAPE SET
€ 0.00
6
681663320005F
ref: 6
EMBLEM (RED)
€ 2.00
7
455113320007P
ref: 7
COVER, SEAT TAIL (RED)
€ 80.00
8
681603322064R
ref: 8
TAPE SET
€ 0.00
9
6816633200742
ref: 9
EMBLEM,SEAT TAIL(SILVER)
6816633200742
€ 2.00
10
4556233200
ref: 10
CUSHION
€ 11.50
11
4552249200
ref: 11
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
12
9570049830
ref: 12
LOCK SET,SEAT
9570049830
€ 81.50
13
0110706128
ref: 13
BOLT
0110706128
€ 2.00
14
0832121068
ref: 14
LOCK WASHER
0832121068
€ 2.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
0110706258
ref: 16
BOLT
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0916006012
ref: 18
WASHER(6,5X22X1.6)
€ 2.00
19
0918007004
ref: 19
SPACER(6.5X10.5X12)
0918007004
€ 2.50
20
0932010011
ref: 20
CUSHION
0932010011
€ 5.50
21
9499133200
ref: 21
BOX, SEAT TAIL
9499133200
€ 44.50
22
0151706168
ref: 22
BOLT
€ 1.50
23
0832221068
ref: 23
WASHER
0832221068
€ 2.00
24
0831931068
ref: 24
NUT
0831931068
€ 2.50
