STAND

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

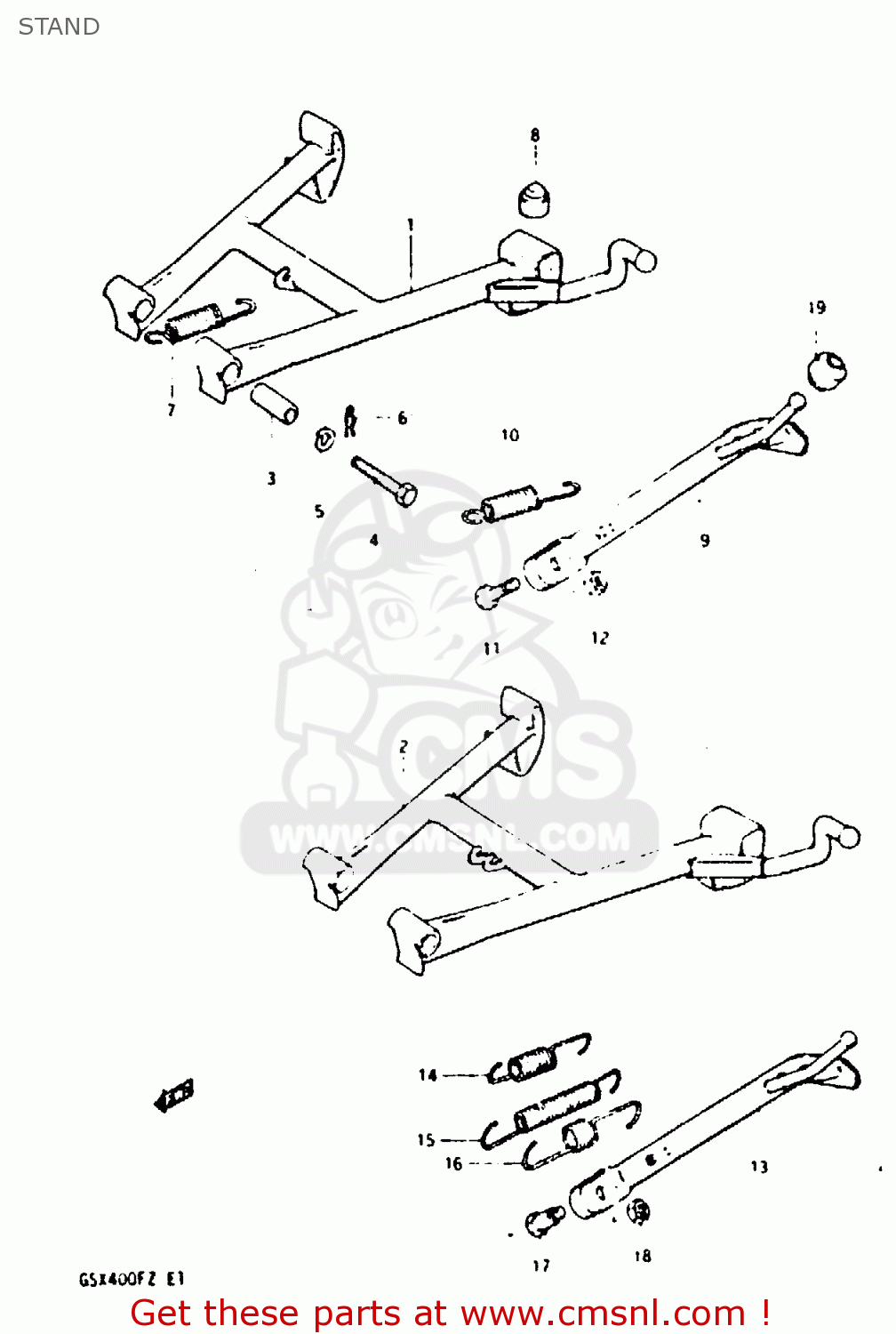

Stand diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

STAND GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
STAND GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
STAND GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
4210033200
ref: 1
STAND, CENTER
€ 71.50
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0918010040
ref: 3
SPACER(10X16X38.8)
0918010040
€ 3.00
4
0910110018
ref: 4
BOLT
0910110018
€ 5.50
5
0832121108
ref: 5
LOCK WASHER
0832121108
€ 2.00
6
0938510001
ref: 6
CLIP
0938510001
€ 1.50
7-1
0944318006
ref: 7-1
SPRING
0944318006
€ 5.50
7-2
NOTUSED
ref: 7-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
0932110001
ref: 8
CUSHION
0932110001
€ 2.50
9
4231033200
ref: 9
STAND, PROP
€ 35.00
10
0944317005
ref: 10
SPRING
0944317005
€ 11.50
11
0910010067
ref: 11
BOLT(10X30)
0910010067
€ 3.50
12
0831022108
ref: 12
NUT
0831022108
€ 2.50
13
NOTUSED
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
NOTUSED
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18
NOTUSED
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
0932007001
ref: 19
CUSHION
0932007001
€ 4.00
