CLUTCH

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

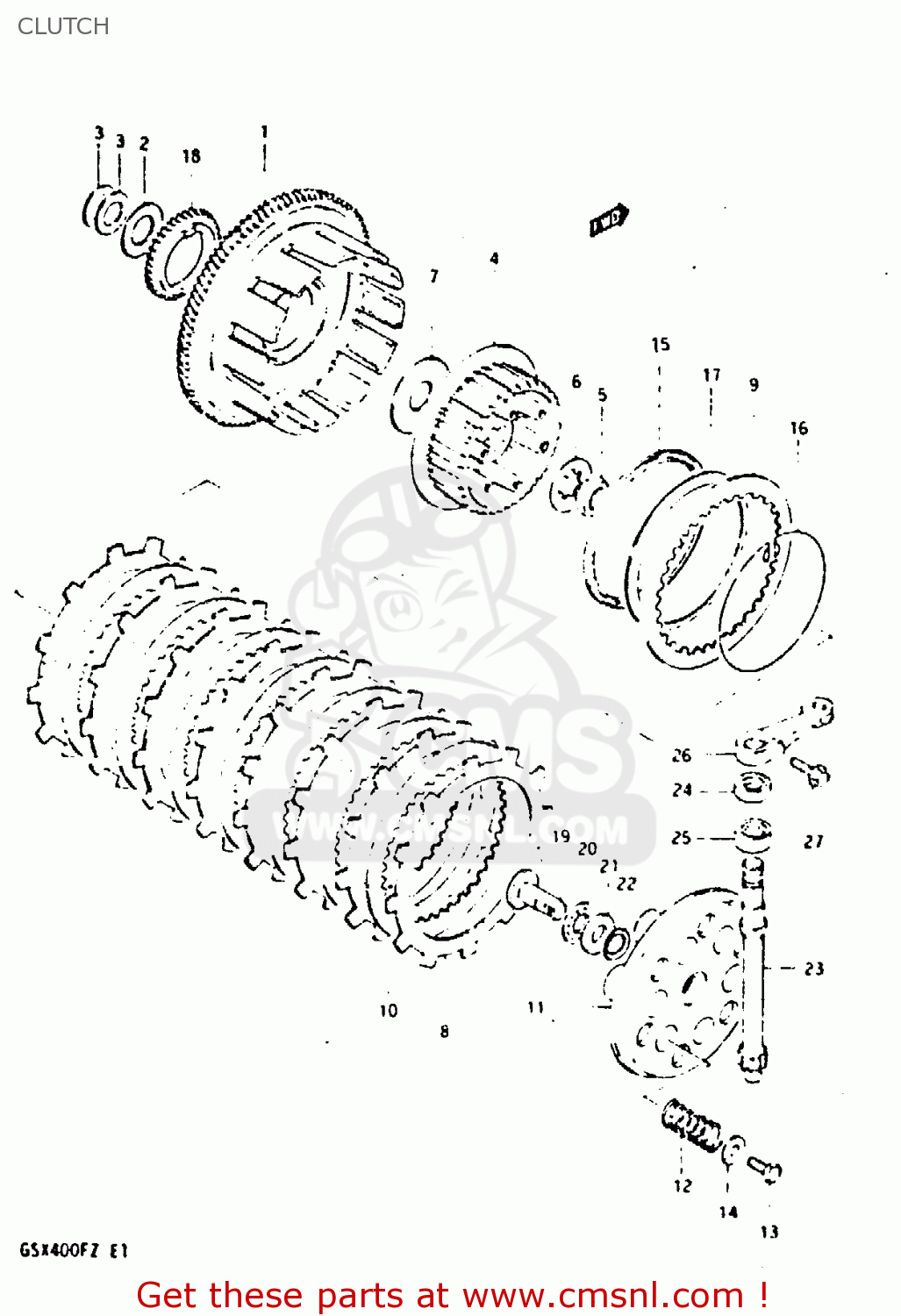

Clutch diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

CLUTCH GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
CLUTCH GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
CLUTCH GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
2120033610
ref: 1
GEAR SET, PRIMARY DRIVEN (NT:92)
€ 0.00
2
0916022026
ref: 2
WASHER
€ 8.00
3
0821122423
ref: 3
WASHER
0821122423
€ 3.00
4
2141133200
ref: 4
HUB, SLEEVE
2141133200
€ 49.50
5
0914022003
ref: 5
NUT
0914022003
€ 10.00
6
0916722005
ref: 6
WASHER,LOCK
0916722005
€ 2.50
7
0916022026
ref: 7
WASHER
€ 8.00
8
2144140402
ref: 8
PLATE,CLUTCH DRIVE (MCA)
2144140402
€ 20.50
9
2145131000
ref: 9
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
10
2145145000
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
11
2146233200
ref: 11
DISC, PRESSURE
€ 146.50
12
0944019004
ref: 12
SPRING
0944019004
€ 3.00
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0916006020
ref: 14
WASHER
0916006020
€ 2.00
15
2147145101
ref: 15
SEAT,WAVE WASHER
2147145101
€ 16.00
16
2148145100
ref: 16
RING,STOPPER
2148145100
€ 5.00
17
0916400003
ref: 17
WASHER
0916400003
€ 9.00
18
1632133200
ref: 18
GEAR, OIL PUMP DRIVE (NT:38)
1632133200
€ 41.50
19
2316549000
ref: 19
RACK,CLUTCH RELEASE
2316549000
€ 15.00
20
0926315003
ref: 20
BEARING(15X28X2)
0926315003
€ 7.00
21
0821115283
ref: 21
WASHER
€ 2.00
22
0916416003
ref: 22
WASHER
0916416003
€ 2.50
23
2326133200
ref: 23
PINION, RELEASE
€ 55.00
24
0928312002
ref: 24
OIL SEAL
€ 0.00
25
0926315012
ref: 25
BEARING(15X22X12)
0926315012
€ 11.50
26
2327134200
ref: 26
ARM,CLUTCH RELEASE
2327134200
€ 26.50
27
0151706208
ref: 27
BOLT,REAR
€ 2.50
