HEADLAMP (E2)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

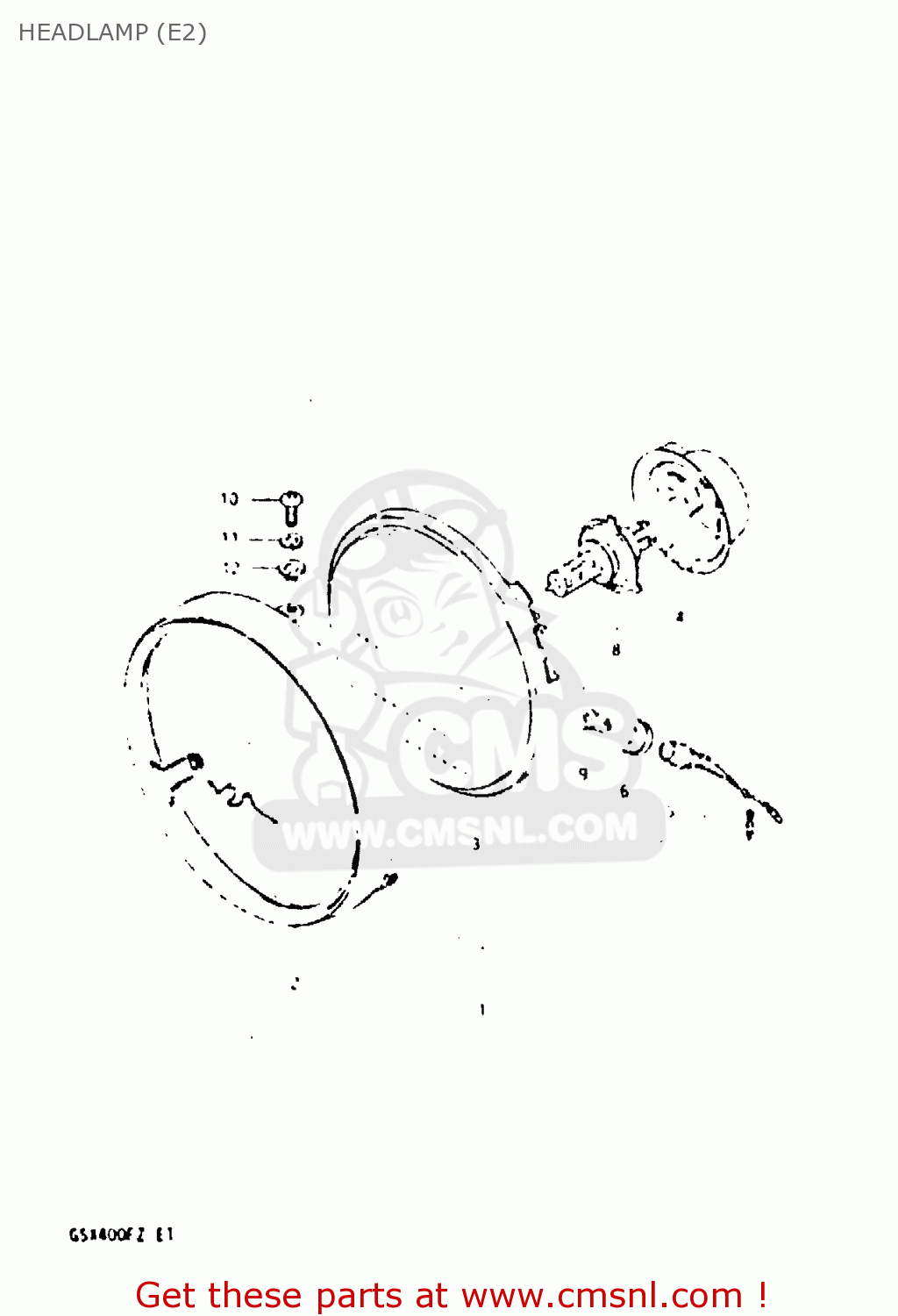

Headlamp (e2) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

3510033200999
ref: 1

HEADLAMP ASSY

€ 234.00

3511130520
ref: 2

RIM

€ 48.50

3512133200
ref: 3

LAMP UNIT

€ 88.50

3517345200
ref: 4

COVER,SOCKET

€ 14.00

3611830691
ref: 5

SOCKET

€ 12.00

3611622630
ref: 6

JOINT,RUBBER

€ 5.00

3512827221
ref: 7

SPRING

€ 2.50

0947112060
ref: 8
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

0947112001
ref: 9

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

0912505022
ref: 10

SCREW

€ 3.50

0916205003
ref: 11

WASHER,LOCK

€ 2.00

0916906021
ref: 12

WASHER

€ 2.50
