FOOTREST

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

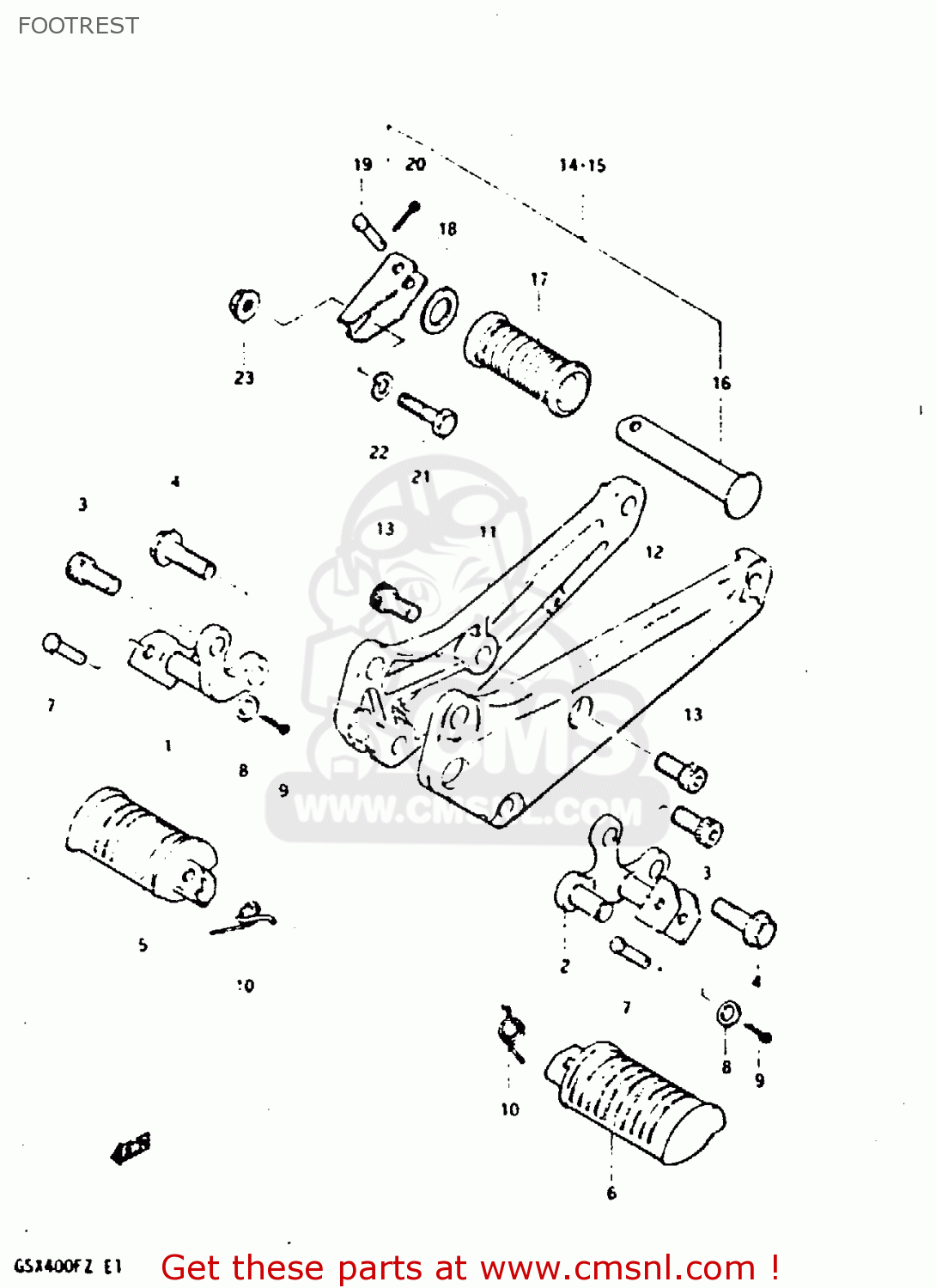

Footrest diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

FOOTREST GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FOOTREST GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FOOTREST GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
4351033200
ref: 1
BAR, FRONT FOOTREST RH
4351033200
€ 39.50
2
4352033200
ref: 2
BAR, FRONT FOOTREST LH
4352033200
€ 34.00
3
0910610003
ref: 3
BOLT
0910610003
€ 3.00
4
0152710357
ref: 4
BOLT, LOWER
0152710357
€ 3.50
5
4355034310
ref: 5
RUBBER,FR FOOT
4355034310
€ 22.50
6
4356034310
ref: 6
RUBBER, LH
€ 22.50
7
0920008002
ref: 7
PIN
0920008002
€ 2.00
8
0832211088
ref: 8
WASHER
0832211088
€ 2.00
9
0411120208
ref: 9
PIN 20X20
0411120208
€ 1.50
10
0944814013
ref: 10
SPRING
€ 3.00
11
4381133200
ref: 11
BRACKET, MUFFLER RH
€ 92.50
12
4382133200
ref: 12
BRACKET, MUFFLER LH
€ 92.50
13
0910610003
ref: 13
BOLT
0910610003
€ 3.00
14
4360033200
ref: 14
FOOTREST, PILLION RH
4360033200
€ 16.50
15
4370033200
ref: 15
FOOTREST, PILLION LH
4370033200
€ 16.00
16
4361003001
ref: 16
BAR,FOOTREST RUBBER
4361003001
€ 5.50
17
4361233200
ref: 17
RUBBER,PILLION FOOTREST
4361233200
€ 4.50
18
0916019006
ref: 18
WASHER (19.5X32X2)
0916019006
€ 2.00
19
0920006010
ref: 19
PIN
0920006010
€ 2.50
20
0411120208
ref: 20
PIN 20X20
0411120208
€ 1.50
21
0110710358
ref: 21
BOLT,M10X1.25X
0110710358
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
0832121108
€ 2.00
23
0831616108
ref: 23
NUT
0831616108
€ 2.00
