REAR COMBINATION LAMP (E2, E4, E15, E21)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

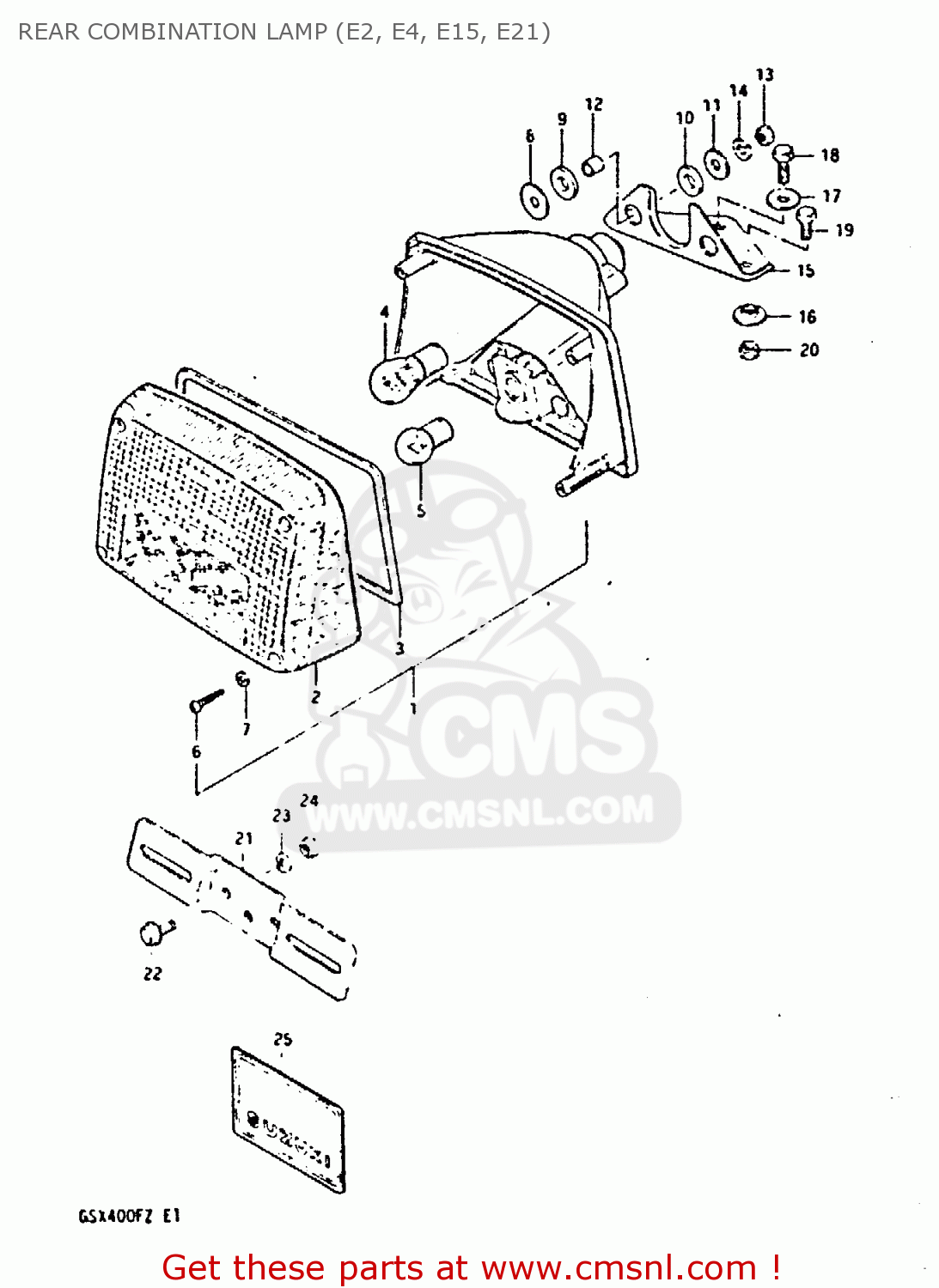

Rear combination lamp (e2, e4, e15, e21) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

3571049023
ref: 1-1
FROM 35710-49022

LAMP, REAR COMBINATION

€ 178.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3571249083
ref: 2

LENS

€ 43.50

3571349030
ref: 3

GASKET (NAS)

€ 12.50

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0947112058
ref: 5

BULB

€ 4.00

3562749030
ref: 6

SCREW,REAR COMBINATION LAMP

€ 1.50

3562743010
ref: 7

GASKET (NAS)

€ 2.00

0916006007
ref: 8

WASHER

€ 2.00

0932009004
ref: 9

CUSHION

€ 2.50

0932009003
ref: 10

CUSHION

€ 2.00

0916006012
ref: 11

WASHER(6,5X22X1.6)

€ 2.00

0918006038
ref: 12

SPACER(6.1X9X7.5)

€ 2.00

0831011068
ref: 13

NUT

€ 2.50

0832121068
ref: 14

LOCK WASHER

€ 2.50

3572633200
ref: 15

BRACKET,RR COMBINATION LAMP

€ 6.50

0916906016
ref: 16

WASHER

€ 1.50

0916006060
ref: 17

WASHER

€ 2.00

0110706258
ref: 18

BOLT

€ 2.00

0110706168
ref: 19

BOLT, UPPER

€ 3.00

0831626068
ref: 20

NUT 6MM

€ 2.00

3592733200
ref: 21

BRACKET, LICENSE PLATE

€ 10.00

0151706168
ref: 22

BOLT

€ 1.50

0832121068
ref: 23

LOCK WASHER

€ 2.50

0831011068
ref: 24

NUT

€ 2.50

NOTUSED
ref: 25

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

REAR COMBINATION LAMP (E2, E4, E15, E21)

all assemblies
