SEAT

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

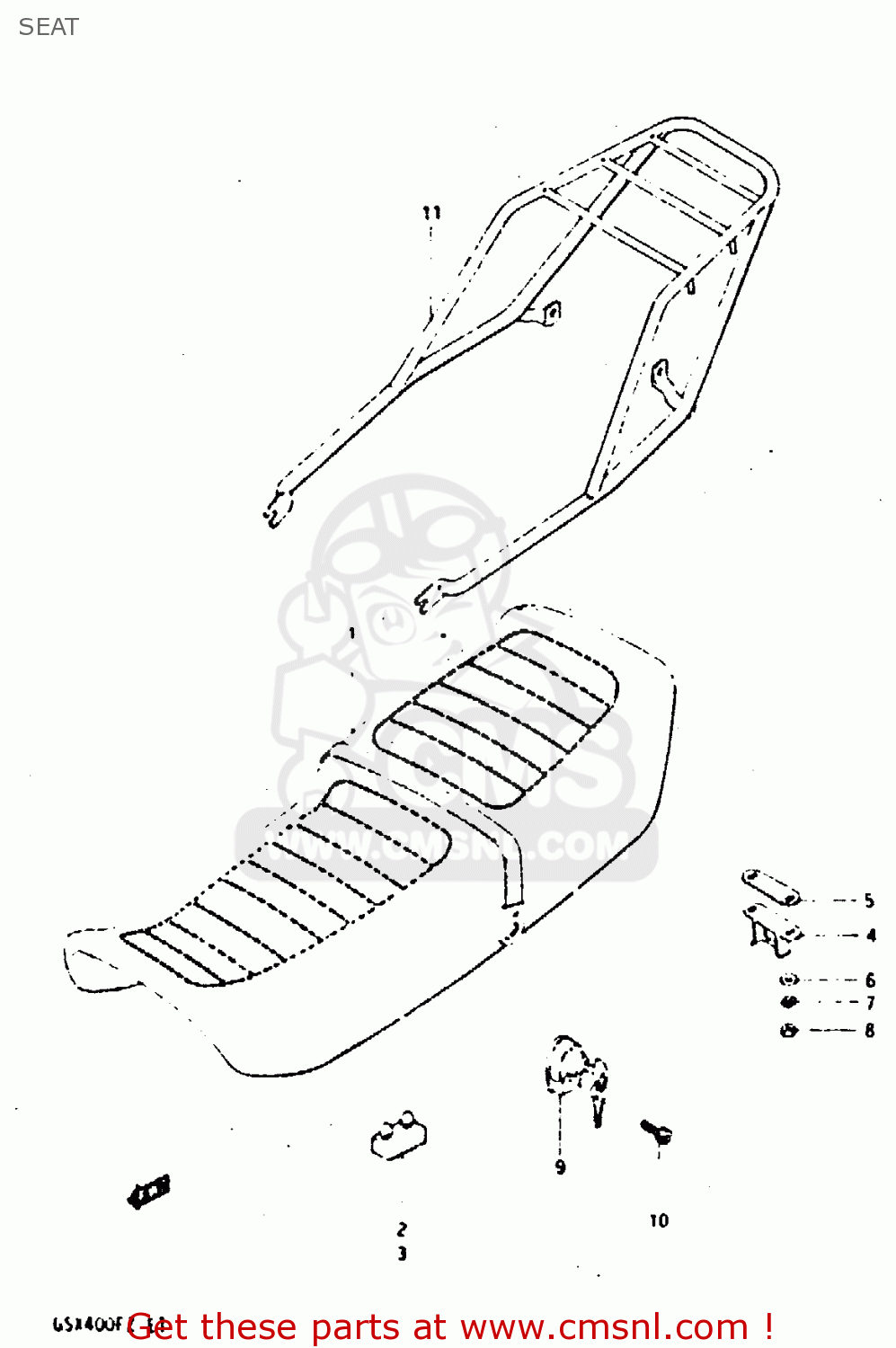

Seat diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

SEAT GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

SEAT GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

451003320041G
ref: 1-1
MODEL X

SEAT ASSY (BLACK)

€ 387.00

1-2

451003321047G
ref: 1-2
MODEL Z

SEAT ASSY (BLACK)

€ 387.00

2

0932108006
ref: 2

CUSHION

€ 3.00

3

0932108010
ref: 3

CUSHION

€ 4.00

4

4521033200
ref: 4

STRIKER, SEAT LOCK

€ 17.50

5

4521744100
ref: 5

SHIM,SEAT LOCK STRIKER

€ 4.50

6

0832221068
ref: 6

WASHER

€ 2.00

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

0831022068
ref: 8

NUT 6MM

€ 2.50

9

9570034210
ref: 9

LOCK ASSY,HELMET

€ 59.00

10

0910605008
ref: 10

BOLT 5X25

€ 2.00

11

4631033200
ref: 11
OPT

CARRIER, SPORTS

€ 43.00
