FRAME COVER (MODEL Z)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

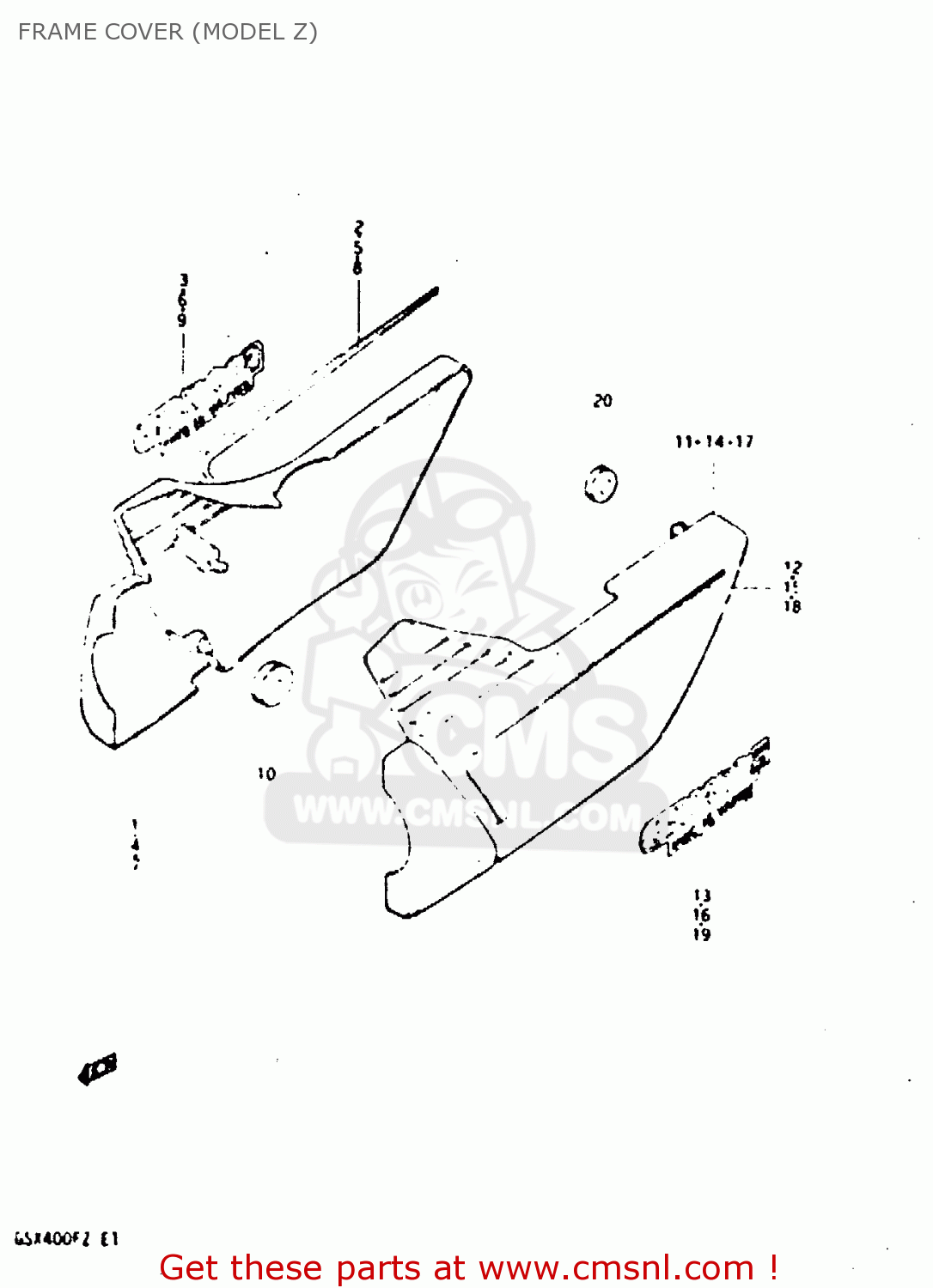

Frame cover (model z) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

471113320008E
ref: 1-1

COVER, FRAME RH (BLACK)

€ 102.50

1-2

471113320005H
ref: 1-2

COVER, FRAME RH (BLUE)

€ 102.50

681303322072H
ref: 2

TAPE, RH

€ 0.00

681313321072H
ref: 3

EMBLEM, RH

€ 5.50

471113320013L
ref: 4

COVER, FRAME RH (SILVER)

€ 102.50

681303322070J
ref: 5

TAPE, RH

€ 9.00

681313321070J
ref: 6

EMBLEM, RH

€ 3.50

471113320007P
ref: 7

COVER, FRAME RH (RED)

€ 102.50

681303322064R
ref: 8

TAPE, RH

€ 0.00

681313321064R
ref: 9

EMBLEM, RH

€ 0.00

0932008018
ref: 10

CUSHION

€ 4.00

11-1

472113320008E
ref: 11-1

COVER, FRAME LH (BLACK)

€ 109.00

11-2

472113320005H
ref: 11-2

COVER, FRAME LH (BLUE)

€ 109.00

681403322072H
ref: 12

TAPE, LH

€ 12.00

681313320072H
ref: 13

EMBLEM, LH

€ 0.00

472113320013L
ref: 14

COVER,FRAME LH

€ 109.00

681403322070J
ref: 15

TAPE, LH

€ 9.50

681313320070J
ref: 16

EMBLEM, LH

€ 0.00

472113320007P
ref: 17

COVER,FRAME LH

€ 109.00

681403322064R
ref: 18

TAPE, LH

€ 0.00

681313320064R
ref: 19

EMBLEM, LH

€ 0.00

0932008018
ref: 20

CUSHION

€ 4.00
