REAR MASTER CYLINDER (E2, E22)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

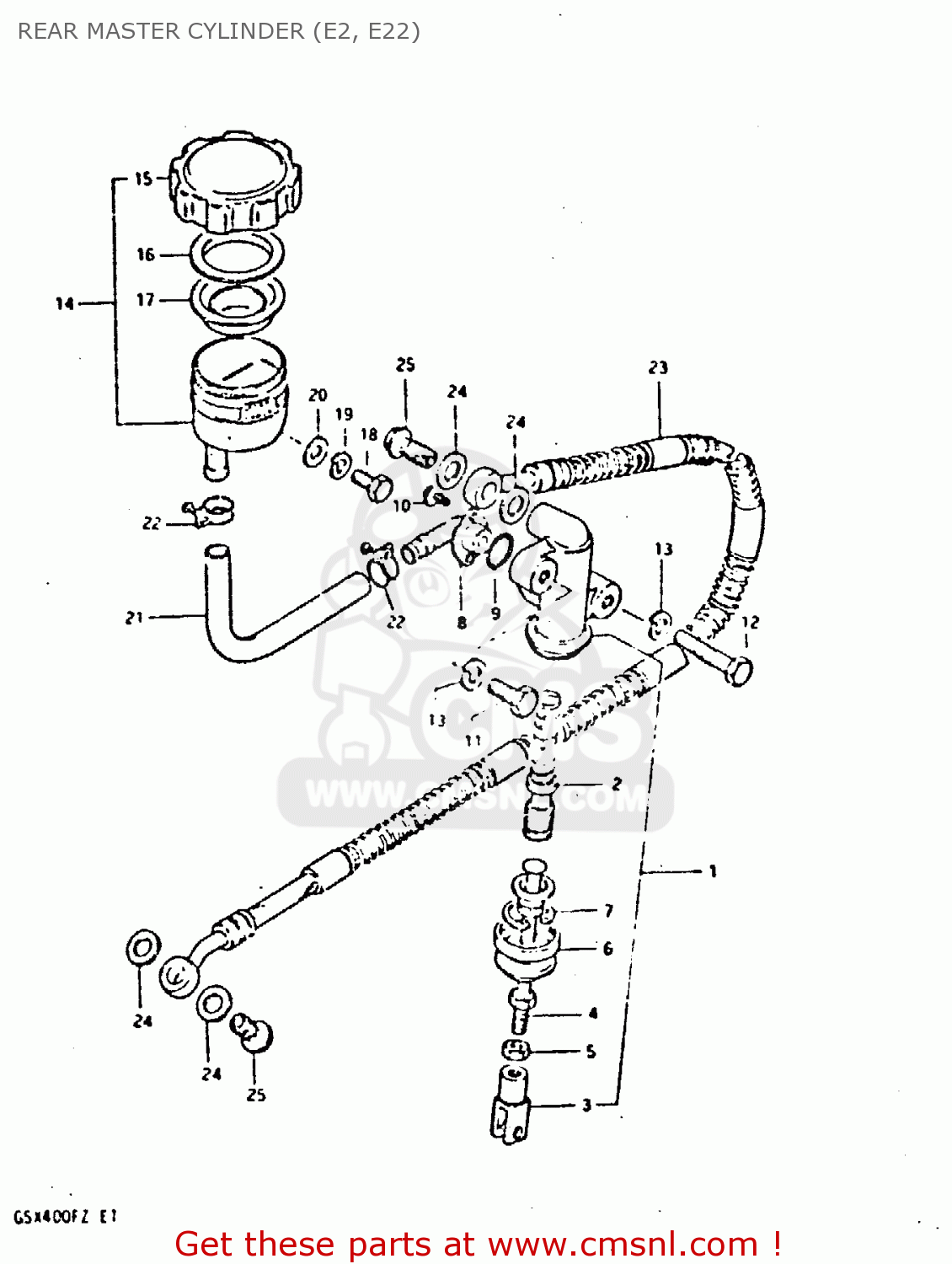

Rear master cylinder (e2, e22) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

REAR MASTER CYLINDER (E2, E22) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
REAR MASTER CYLINDER (E2, E22) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
REAR MASTER CYLINDER (E2, E22) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
6960034201
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
6960034201
€ 155.00
2
6960034810
ref: 2
PISTON/CUP SET
6960034810
€ 36.50
3-1
6969245002
ref: 3-1
MODEL X
YOKE
€ 11.00
3-2
6969234300
ref: 3-2
MODEL Z
YOKE
6969234300
€ 11.00
4
6967034201
ref: 4
ROD,REAR MASTER CYLINDER
€ 13.50
5-1
0831012088
ref: 5-1
MODEL X
NUT
0831012088
€ 2.00
5-2
6969334300
ref: 5-2
MODEL Z
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
6967234200
ref: 8
CONNECTOR,HOSE
€ 0.00
9
6968634200
ref: 9
O RING
6968634200
€ 3.50
10
6968834200
ref: 10
SCREW
€ 1.50
11
0110708358
ref: 11
BOLT
0110708358
€ 3.50
12
0110708558
ref: 12
BOLT 8X55
€ 3.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
6974034200
ref: 14
TANK ASSEMBLY,RESERVOIR
6974034200
€ 27.50
15
5966918605
ref: 15
CAP
€ 16.50
16
5966818441
ref: 16
PLATE,DIAPHRAGM
5966818441
€ 3.50
17
5966718441
ref: 17
DIAPHRAGM
5966718441
€ 8.50
18
0110706168
ref: 18
BOLT, UPPER
€ 3.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
6973133200
ref: 21
HOSE
€ 0.00
22
0940016302
ref: 22
CLAMP
0940016302
€ 4.50
23
6948033201
ref: 23
HOSE, REAR BRAKE
€ 0.00
24
0916110005
ref: 24
WASHER
0916110005
€ 2.00
25
0936010007
ref: 25
BOLT,UNION
0936010007
€ 6.50
