FUEL COCK

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

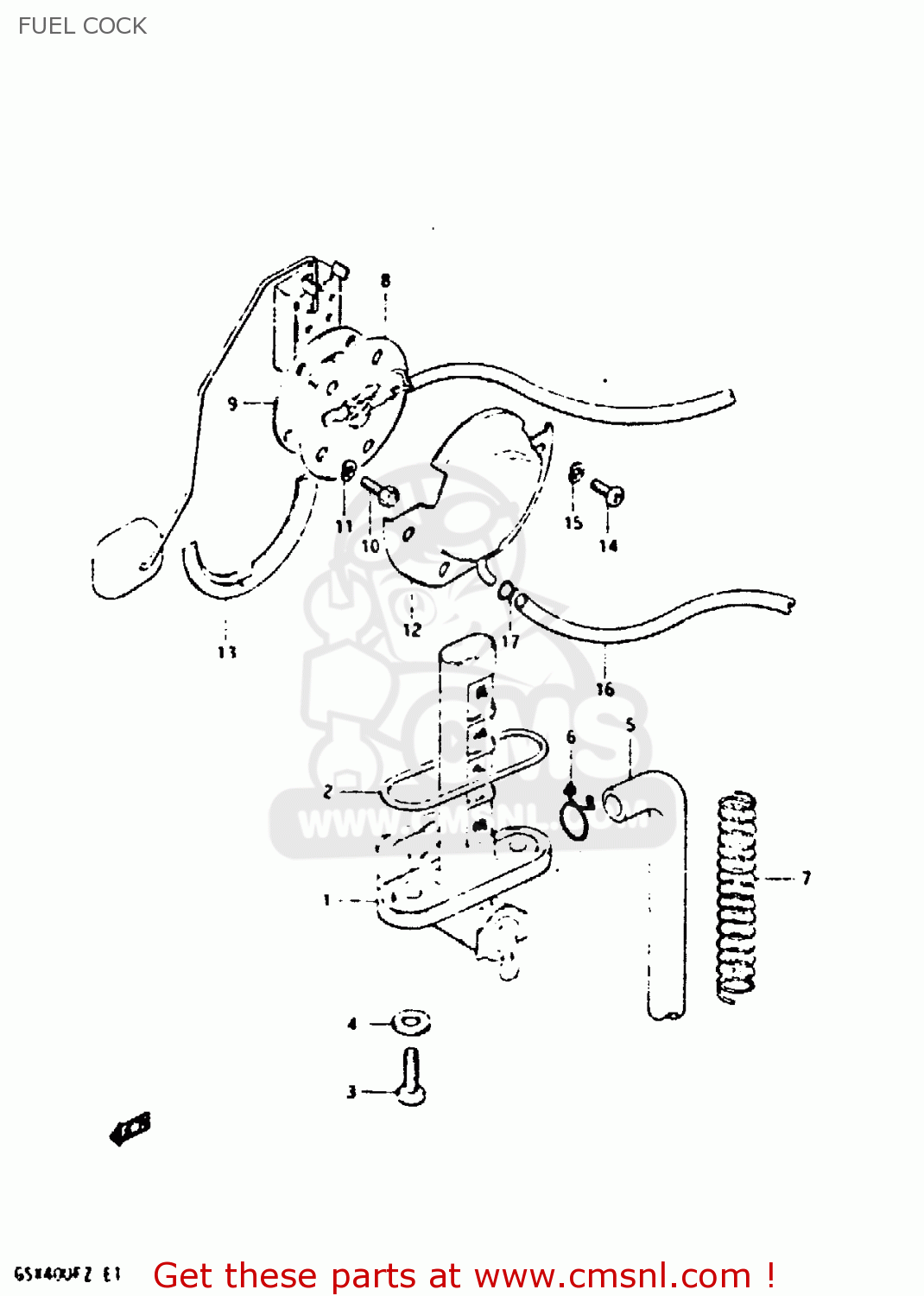

Fuel cock diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

4430034470
ref: 1

COCK ASSEMBLY,FUEL

€ 104.50

4434849170
ref: 2

O RING

€ 3.50

0912806006
ref: 3

BOLT(6X20)

€ 2.00

0916806010
ref: 4

GASKET

€ 2.00

5-1

0934307026
ref: 5-1
MODEL X

HOSE

€ 17.50

5-2

0934307073
ref: 5-2
MODEL Z

HOSE

€ 17.50

0940110403
ref: 6

CLIP

€ 7.00

0944013018
ref: 7

SPRING

€ 14.50

8-1

3481033200
ref: 8-1
MODEL X

GAUGE, FUEL LEVER

€ 68.50

8-2

3481033202
ref: 8-2
MODEL Z

GAUGE, FUEL LEVER

€ 68.50

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

0110405108
ref: 10

BOLT

€ 1.50

0832121058
ref: 11

LOCK WASHER

€ 2.00

12-1

3488545302
ref: 12-1
MODEL X

PLATE,FUEL DRAIN

€ 20.50

12-2

3488534500
ref: 12-2
MODEL Z

PLATE,FUEL DRAIN

€ 20.50

13-1

3488849000
ref: 13-1
MODEL X

GASKET,FUEL DRAIN PLATE (NAS)

€ 15.00

13-2

3488834500
ref: 13-2
MODEL Z

GASKET (NAS)

€ 8.50

0211205088
ref: 14

SCREW

€ 2.00

0832121058
ref: 15

LOCK WASHER

€ 2.00

0934305165
ref: 16

HOSE,FUEL

€ 13.00

0940108402
ref: 17

CLIP

€ 1.50
