FRONT LEFT FORK (MODEL Z)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

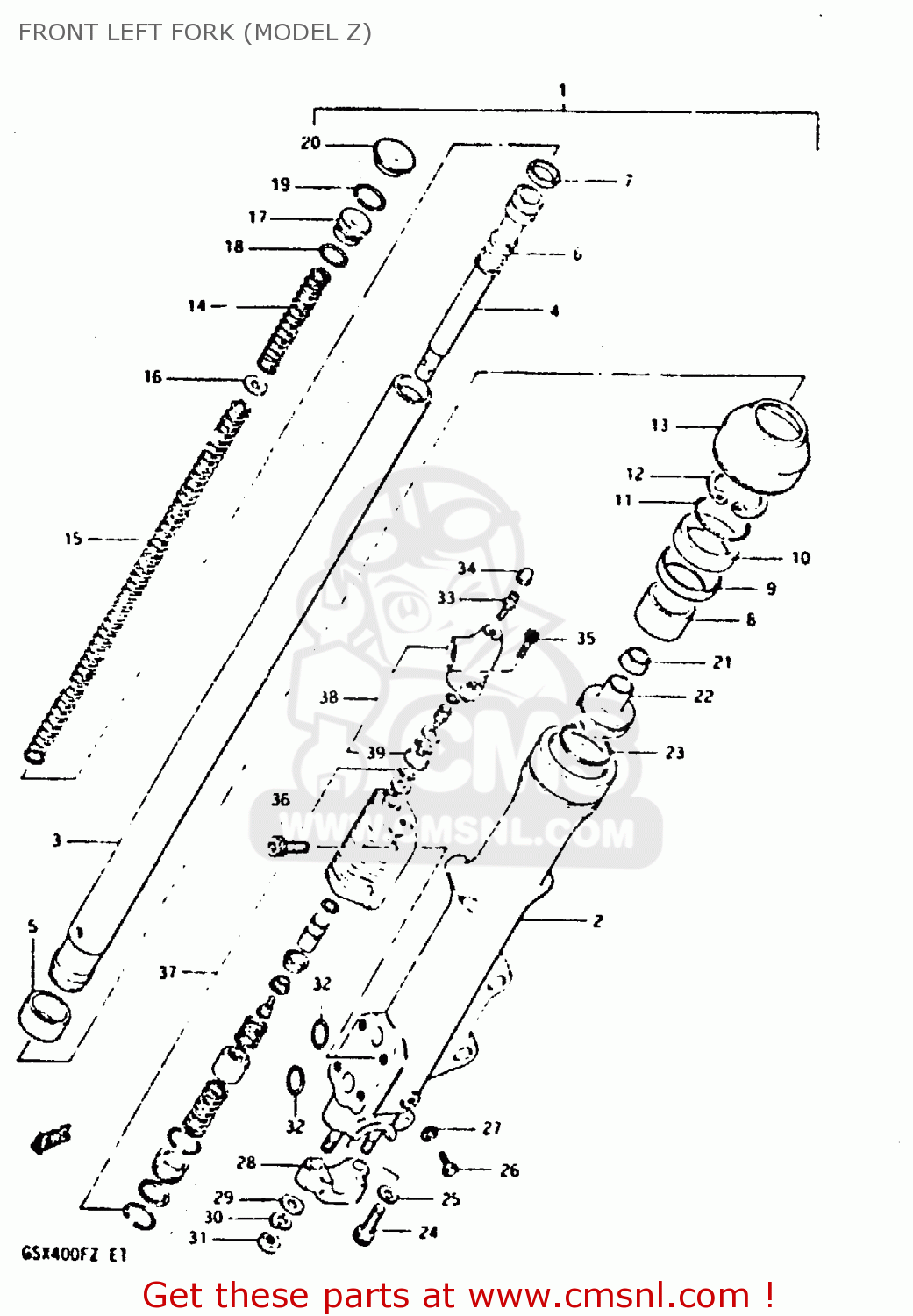

Front left fork (model z) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

FRONT LEFT FORK (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FRONT LEFT FORK (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FRONT LEFT FORK (MODEL Z) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
5110433230
ref: 1
FRONT LH DAMPER
€ 0.00
2
5114033230
ref: 2
OUTER TUBE LH
€ 192.00
3
5112033230
ref: 3
INNER TUBE
5112033230
€ 144.00
4
5119433200
ref: 4
CYLINDER, LH
€ 22.50
5
5112111420
ref: 5
BUSH
5112111420
€ 16.50
6
5117711420
ref: 6
SPRING,REBOUND
5117711420
€ 4.50
7
5119633130
ref: 7
RING,PISTON
5119633130
€ 7.50
8
5115211420
ref: 8
BUSH,GUIDE
5115211420
€ 16.50
9
5116844030
ref: 9
SPACER,OIL SEAL
5116844030
€ 4.50
10
5115337310
ref: 10
OIL SEAL,FRONT FORK
5115337310
€ 15.00
11
5115811420
ref: 11
RING,BACKUP
5115811420
€ 4.00
12
5115611420
ref: 12
RING,OIL SEAL STOPPER
5115611420
€ 4.50
13
5157137310
ref: 13
DUST SEAL
5157137310
€ 22.00
14
5117133200
ref: 14
SPRING A
5117133200
€ 9.00
15
5118433230
ref: 15
SPRING (B)
€ 20.50
16
5117236331
ref: 16
SEAT,SPRING
5117236331
€ 2.50
17
5117548500
ref: 17
SEAT,SPRING
5117548500
€ 9.00
18
5118133131
ref: 18
O RING
5118133131
€ 5.00
19
5116948500
ref: 19
RING,STOPPER
5116948500
€ 2.00
20
5118944031
ref: 20
CAP
5118944031
€ 7.00
21
5112511420
ref: 21
VALVE,OIL LOCK PIEACE
5112511420
€ 7.50
22
5119511420
ref: 22
PIECE,OIL LOCK
5119511420
€ 21.50
23
5112311420
ref: 23
RING, PISTON
5112311420
€ 2.50
24
5114748130
ref: 24
BOLT(8X27)
5114748130
€ 3.50
25
5114831030
ref: 25
GASKET (NAS)
5114831030
€ 4.00
26
0110706088
ref: 26
BOLT
€ 2.50
27
5118331030
ref: 27
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
28
5113244040
ref: 28
HOLDER,AXLE
5113244040
€ 38.50
29
0832221088
ref: 29
WASHER
0832221088
€ 2.00
30
0832121088
ref: 30
LOCK WASHER
0832121088
€ 2.00
31
0831012088
ref: 31
NUT
0831012088
€ 2.00
32
5179911420
ref: 32
O RING,FR FORK
€ 2.00
33
5177811420
ref: 33
BREATHER
5177811420
€ 8.50
34
5177911420
ref: 34
CAP
5177911420
€ 4.50
35
5179711420
ref: 35
BOLT
€ 2.50
36
5179611420
ref: 36
BOLT
€ 3.00
37
5170011821
ref: 37
MODULATOR VALVE SET
5170011821
€ 133.00
38
5170011810
ref: 38
MODULATOR PARTS SET,FRONT
5170011810
€ 92.50
39
5177711420
ref: 39
SEPARATOR,FRONT FORK MODULATOR
5177711420
€ 5.00
