MASTER CYLINDER

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

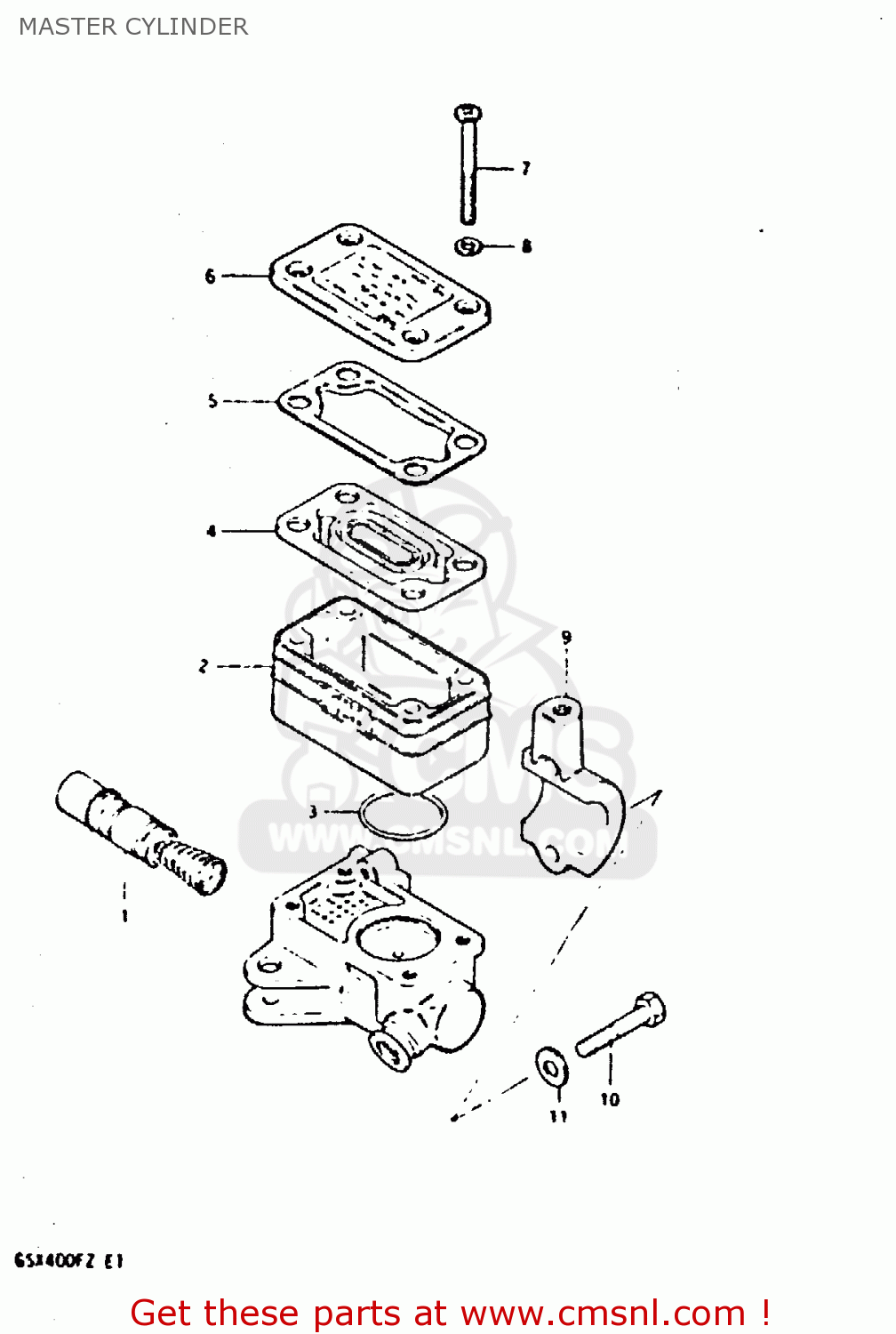

Master cylinder diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

5960045100
ref: 0

CYLINDER ASSY,FR MASTER

€ 279.50

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

5968745100
ref: 2

RESERVOIR

€ 20.50

5968645100
ref: 3

O RING

€ 9.50

5966745100
ref: 4

DIAPHRAGM

€ 11.50

5966845101
ref: 5

PLATE,DIAPHRAGM

€ 14.50

5966945100
ref: 6

CAP

€ 27.50

5969145100
ref: 7

SCREW

€ 3.00

5969245100
ref: 8

WASHER

€ 3.00

5967145100
ref: 9

HOLDER

€ 17.50

0110706258
ref: 10

BOLT

€ 2.00

0832221068
ref: 11

WASHER

€ 2.00
