BATTERY

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

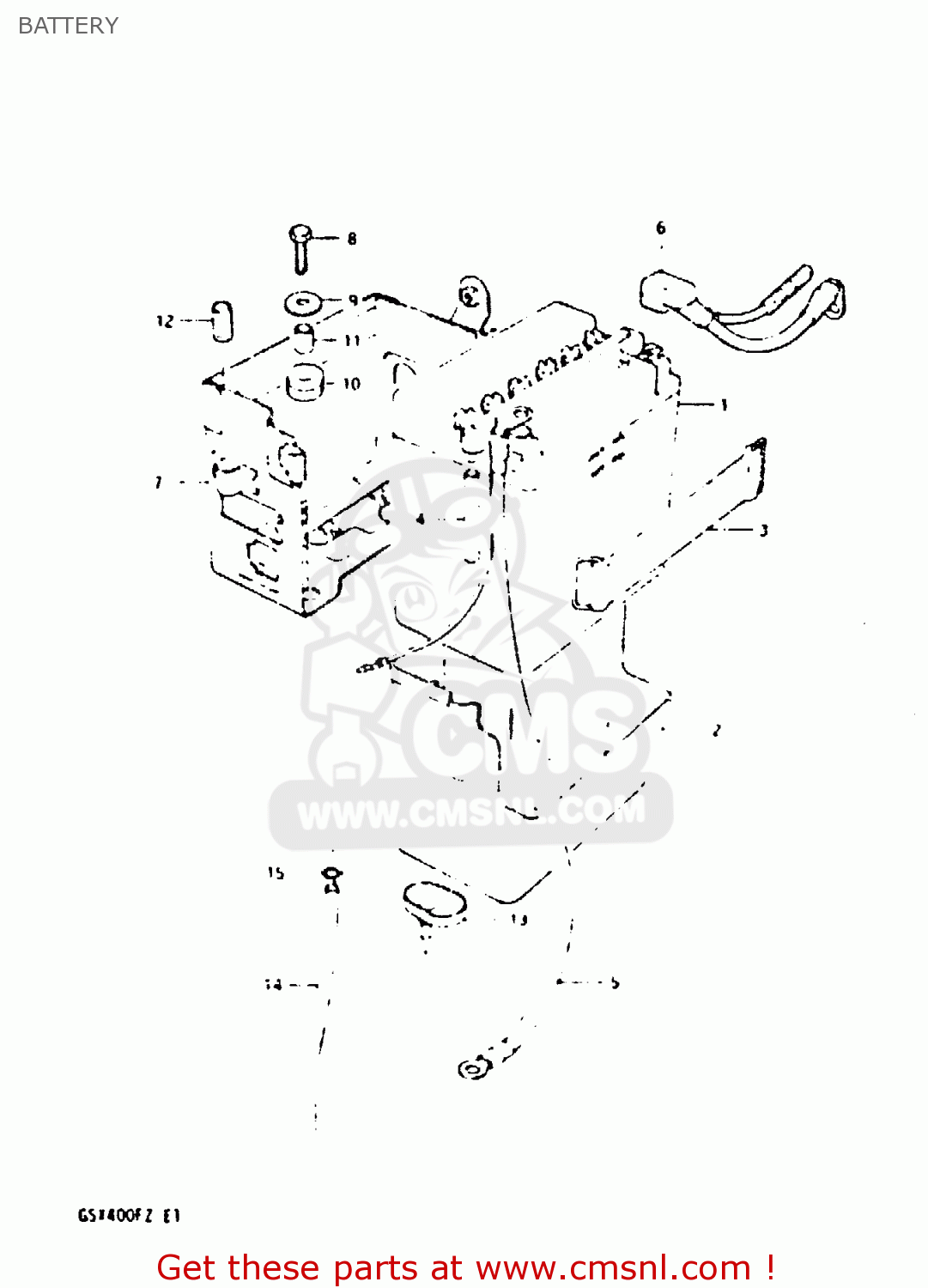

Battery diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

BATTERY GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

BATTERY GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

2

3366147000
ref: 2

CASE,BATTERY

€ 12.50

3

0946200043
ref: 3

BAND

€ 4.50

4

3368147000
ref: 4

HOSE, EXHAUST (L:45)

€ 4.50

5

3385033200
ref: 5

LEAD WIRE, (-)

€ 15.00

6

3382033200
ref: 6

LEAD WIRE, (+)

€ 14.00

7

4154033200
ref: 7

HOLDER, BATTERY

€ 26.00

8

0912806002
ref: 8

BOLT L:16

€ 2.50

9

0916006007
ref: 9

WASHER

€ 2.00

10

0932008007
ref: 10

CUSHION

€ 4.00

11

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

12

0932905006
ref: 12

CUSHION

€ 2.00

13

3366247000
ref: 13

FUNNEL,BATTERY EXHAUST

€ 3.50

14

3368002100
ref: 14
FROM 33680-47001

HOSE,BATTERY EXHAUST

€ 4.50

15

0940108301
ref: 15

CLIP

€ 1.50
