FRONT FORK (MODEL X)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

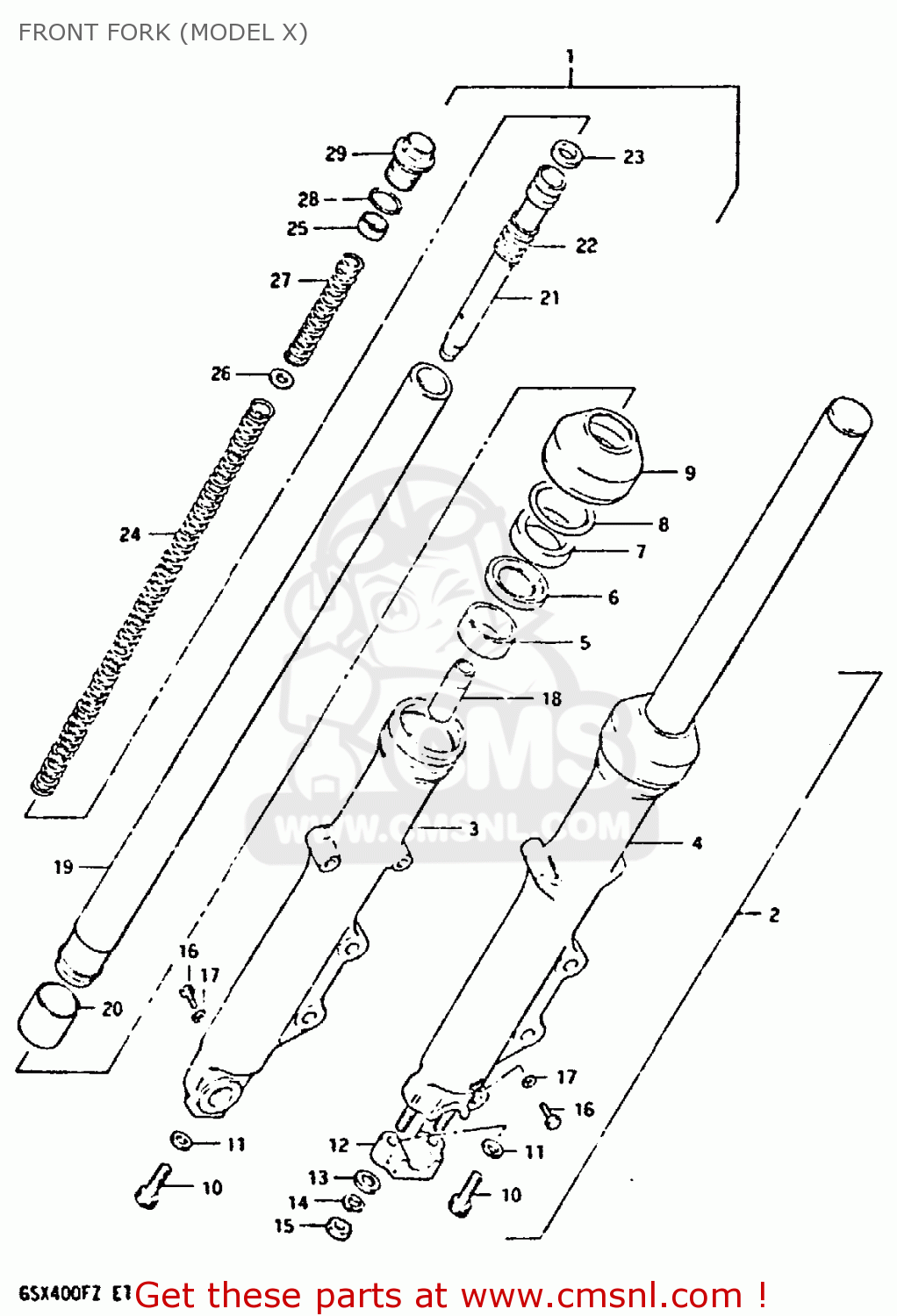

Front fork (model x) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

FRONT FORK (MODEL X) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FRONT FORK (MODEL X) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
FRONT FORK (MODEL X) GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
5110333210
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110433210
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113033210
ref: 3
OUTER TUBE RH
€ 0.00
4
5114033210
ref: 4
OUTER TUBE LH
€ 0.00
5
5115211420
ref: 5
BUSH,GUIDE
5115211420
€ 16.50
6
5116844030
ref: 6
SPACER,OIL SEAL
5116844030
€ 4.50
7
5115337310
ref: 7
OIL SEAL,FRONT FORK
5115337310
€ 15.00
8
5115633130
ref: 8
CIRCLIP,FORK OIL SEAL
5115633130
€ 4.50
9
5157137310
ref: 9
DUST SEAL
5157137310
€ 22.00
10
5114748130
ref: 10
BOLT(8X27)
5114748130
€ 3.50
11
5114831030
ref: 11
GASKET (NAS)
5114831030
€ 4.00
12
5113231030
ref: 12
HOLDER,AXLE
5113231030
€ 31.50
13
0832221088
ref: 13
WASHER
0832221088
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0914008008
ref: 15
NUT
0914008008
€ 1.50
16
0910006011
ref: 16
BOLT(6X8)
0910006011
€ 2.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
18
5119548000
ref: 18
PIECE,OIL LOCK
5119548000
€ 8.50
19
5111033210
ref: 19
INNER TUBE
€ 119.50
20
5112111420
ref: 20
BUSH
5112111420
€ 16.50
21
5114633210
ref: 21
CYLINDER
5114633210
€ 86.00
22
5117736030
ref: 22
SPRING,REBOUND
5117736030
€ 4.50
23
5119633130
ref: 23
RING,PISTON
5119633130
€ 7.50
24
5118433200
ref: 24
SPRING B
5118433200
€ 21.00
25
5117644030
ref: 25
SPACER,FRONT FORK SPRING
€ 0.00
26
5117236331
ref: 26
SEAT,SPRING
5117236331
€ 2.50
27
5117133200
ref: 27
SPRING A
5117133200
€ 9.00
28
5118131030
ref: 28
O RING
5118131030
€ 3.50
29
5135133130
ref: 29
BOLT
5135133130
€ 30.50
