CAM CHAIN

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

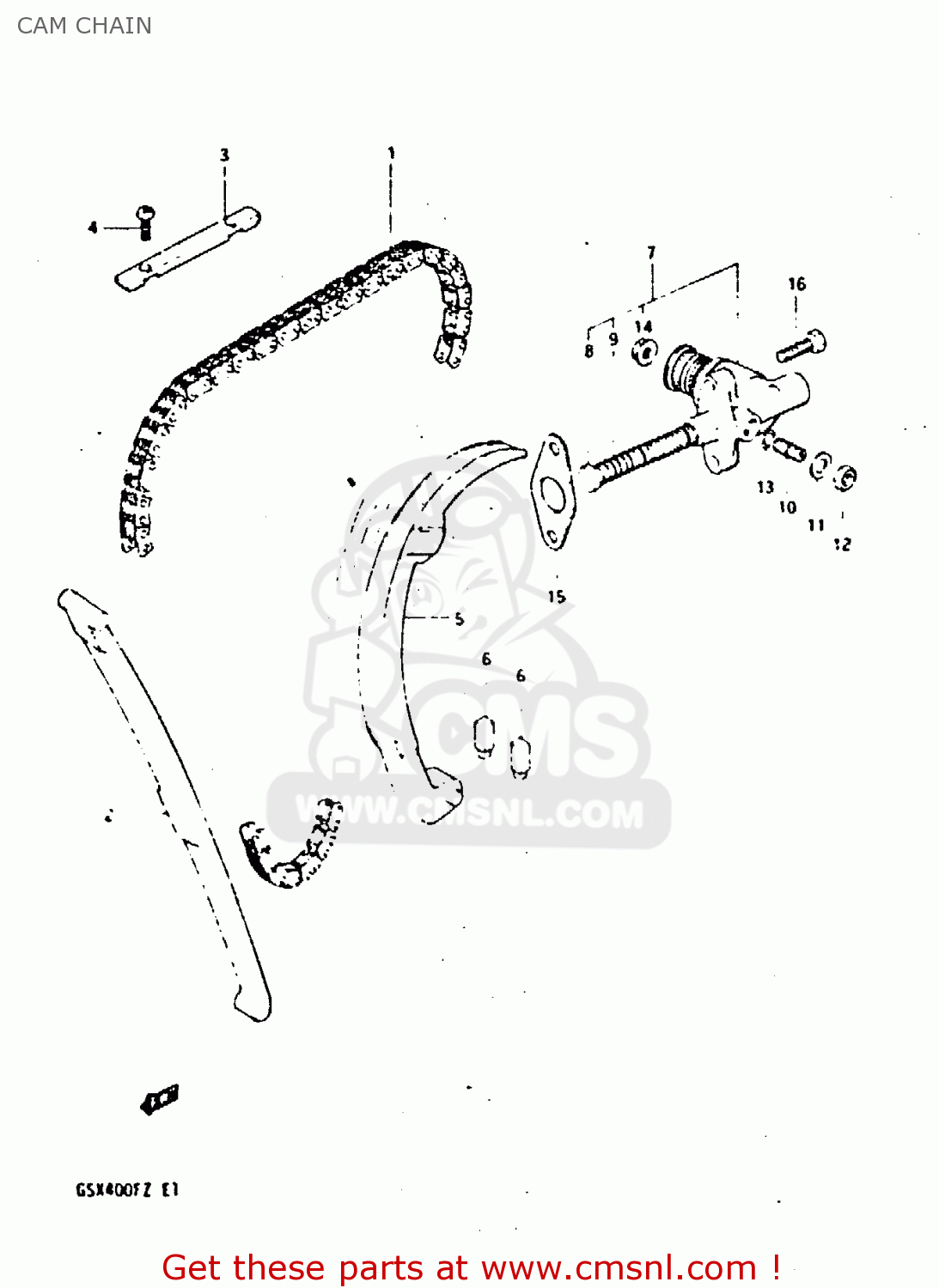

Cam chain diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1276033200
ref: 1

CHAIN, CAM SHAFT DRIVE

€ 117.50

1277133200
ref: 2

GUIDE,CAM CHAIN NO.1

€ 38.00

1278233200
ref: 3

GUIDE,CAM CHAIN NO.2

€ 37.50

0211205108
ref: 4

SCREW

€ 2.00

1281033200
ref: 5

TENSIONER,CAM CHAIN

€ 66.50

6-1

1281444100
ref: 6-1
MODEL X

CUSHION,CAM CHAIN TENSIONER

€ 8.50

6-2

1281444101
ref: 6-2
MODEL Z

CUSHION,CAM CHAIN TENSIONER

€ 8.50

1283033200
ref: 7

ADJUSTER ASSY, TENSIONER

€ 116.50

1283333201
ref: 8

ROD,PUSH

€ 17.00

0944012022
ref: 9

SPRING

€ 3.50

1283845001
ref: 10

SCREW

€ 6.00

0832211088
ref: 11

WASHER

€ 2.00

0831012088
ref: 12

NUT

€ 2.00

0928006003
ref: 13

O-RING

€ 2.50

0831616068
ref: 14

NUT

€ 2.50

1283747000
ref: 15

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

0912806024
ref: 16

SCREW (6X25)

€ 2.50
