FUEL TANK (MODEL Z)

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

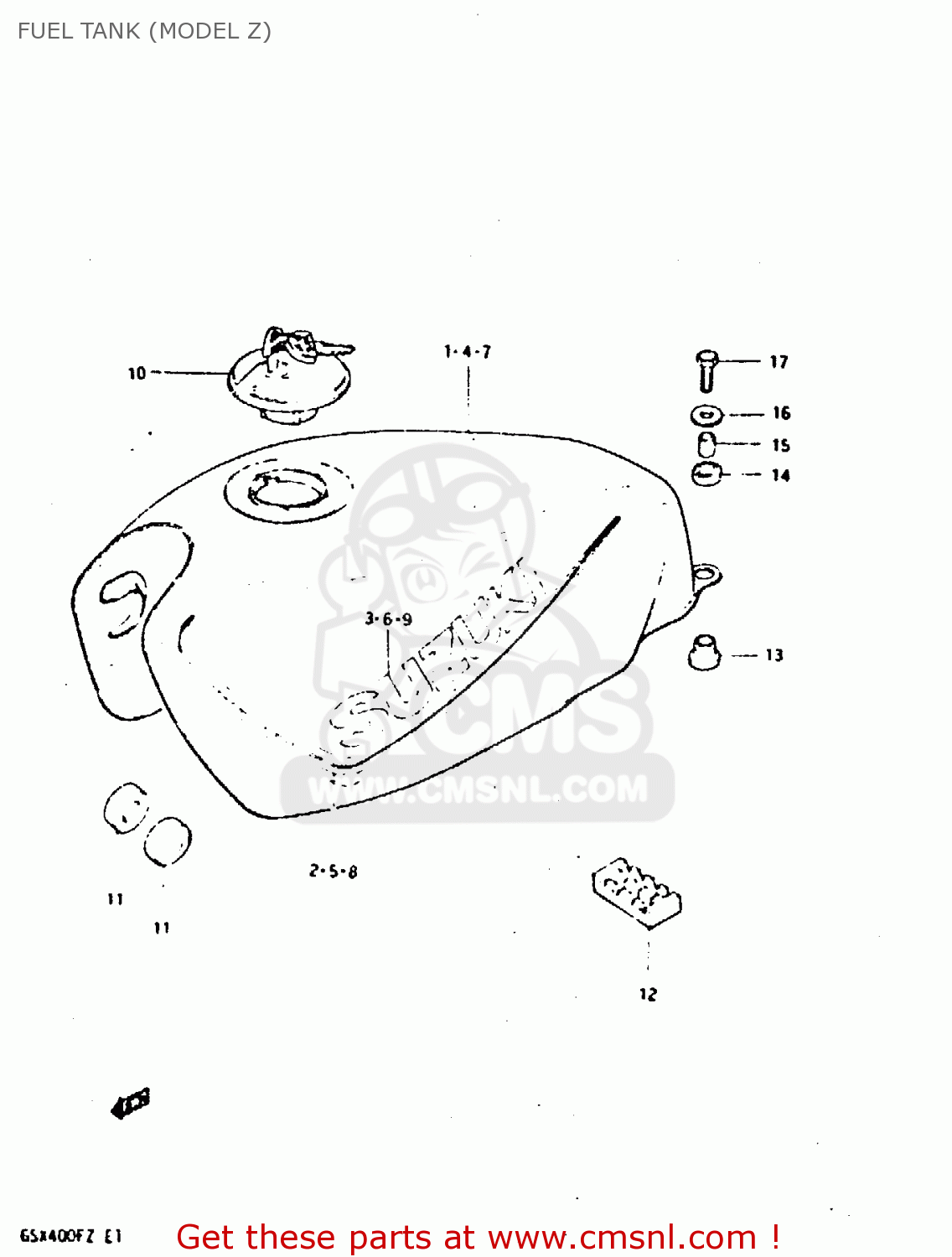

Fuel tank (model z) diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

441003322008E
ref: 1-1

TANK, FUEL (BLACK)

€ 517.00

1-2

441003322005H
ref: 1-2

TANK, FUEL (BLUE)

€ 517.00

681103322072H
ref: 2

TAPE SET

€ 0.00

6811144400064
ref: 3

EMBLEM(WHITE)

€ 12.50

441003322013L
ref: 4

TANK, FUEL (SILVER)

€ 517.00

681103322070J
ref: 5

TAPE SET

€ 0.00

681114440005F
ref: 6

EMBLEM(ORANGE)

€ 12.50

441003322007P
ref: 7

TANK, FUEL (RED)

€ 517.00

681103322064R
ref: 8

TAPE SET

€ 15.50

6811144400064
ref: 9

EMBLEM(WHITE)

€ 12.50

4420034301KEY
ref: 10

CAP SET,FUEL TANK

€ 135.50

0932910007
ref: 11

CUSHION

€ 3.00

4454134500
ref: 12

CUSHION,FUEL TANK CTR

€ 13.00

0932010020
ref: 13

CUSHION

€ 4.00

0932014013
ref: 14

CUSHION

€ 3.00

0918006072
ref: 15

SPACER

€ 2.00

0916006004
ref: 16

WASHER (6.5X24X1.6)

€ 1.50

0110706308
ref: 17

BOLT

€ 2.50
