CYLINDER HEAD

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

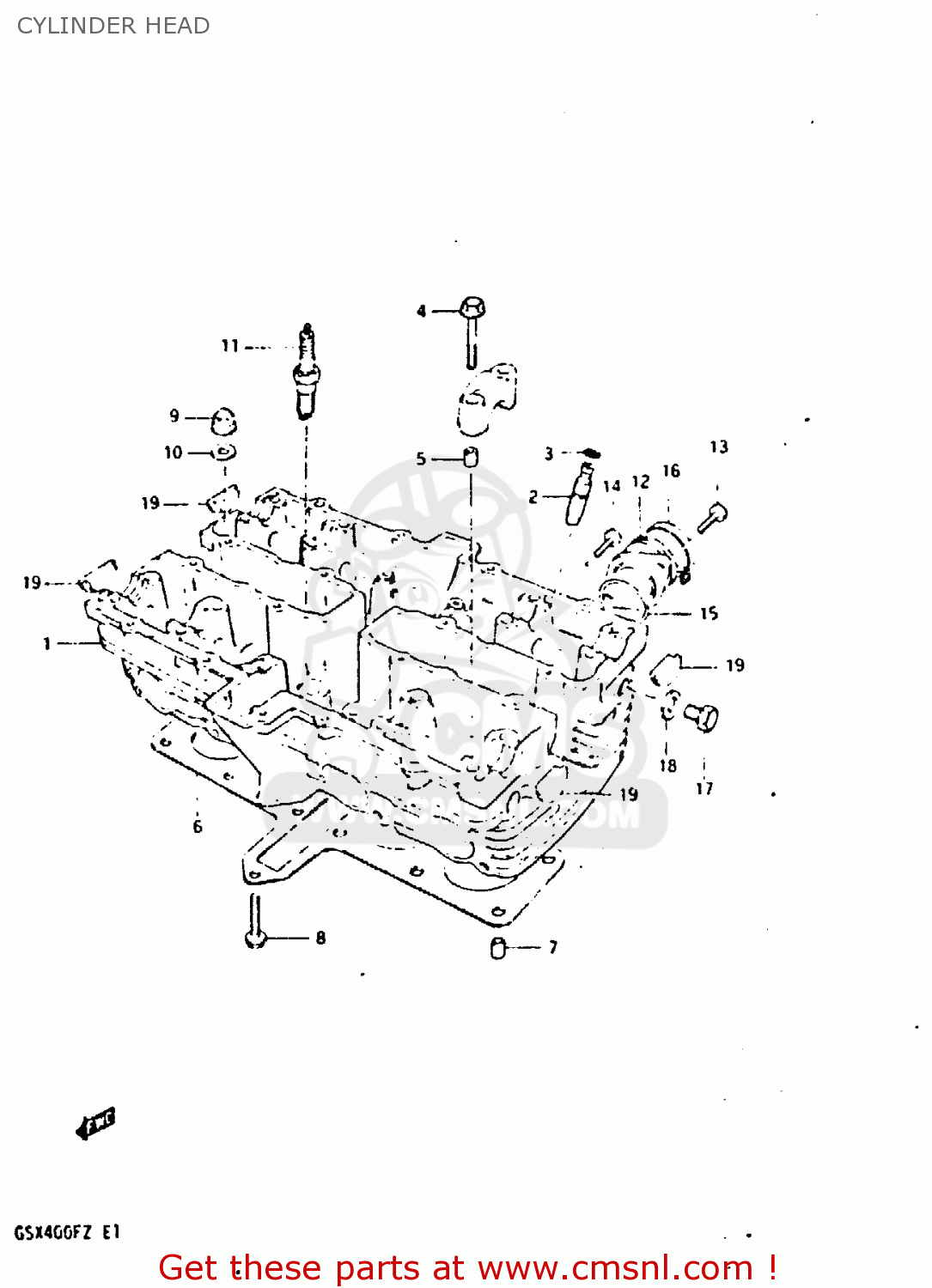

Cylinder head diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

CYLINDER HEAD GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
CYLINDER HEAD GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
CYLINDER HEAD GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1-1
1110033200
ref: 1-1
~E.NO. 108375, 11924
CYLINDER HEAD SET
€ 940.00
1-2
1110033201
ref: 1-2
E.NO.108376~
CYLINDER HEAD SET
€ 940.00
2
1111533270
ref: 2
GUIDE, INTAKE VALVE
1111533270
€ 18.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
1114133200
ref: 6
GASKET
€ 62.00
7
0421111189
ref: 7
PIN
0421111189
€ 2.00
8
0151706258
ref: 8
BOLT
0151706258
€ 2.50
9
0915908029
ref: 9
NUT
0915908029
€ 6.00
10
0916808013
ref: 10
GASKET(8.5X20X2.3) (NAS)
0916808013
€ 4.50
11-1
NOTUSED
ref: 11-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-2
NOTUSED
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-3
0948200149
ref: 11-3
E2, E4, E6, E15, E16
SPARK PLUG DR8ES-L
0948200149
€ 3.50
11-4
0948200223
ref: 11-4
E2, E4, E6, E15, E16
PLUG,SPARK(X24ESR-U)
€ 3.50
12
1311033200
ref: 12
PIPE, INTAKE
1311033200
€ 39.00
13
0913906017
ref: 13
SCREW
€ 1.50
14
0211206168
ref: 14
SCREW
0211206168
€ 2.50
15
0928032006
ref: 15
O RING(D:2.4,ID:31.7)
0928032006
€ 2.50
16
0940246306
ref: 16
CLAMP
€ 4.50
17
0924714012
ref: 17
PLUG (14X12)
0924714012
€ 3.50
18
0916814004
ref: 18
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
19
0924123002
ref: 19
PLUG
0924123002
€ 8.50
