CYLINDER

GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

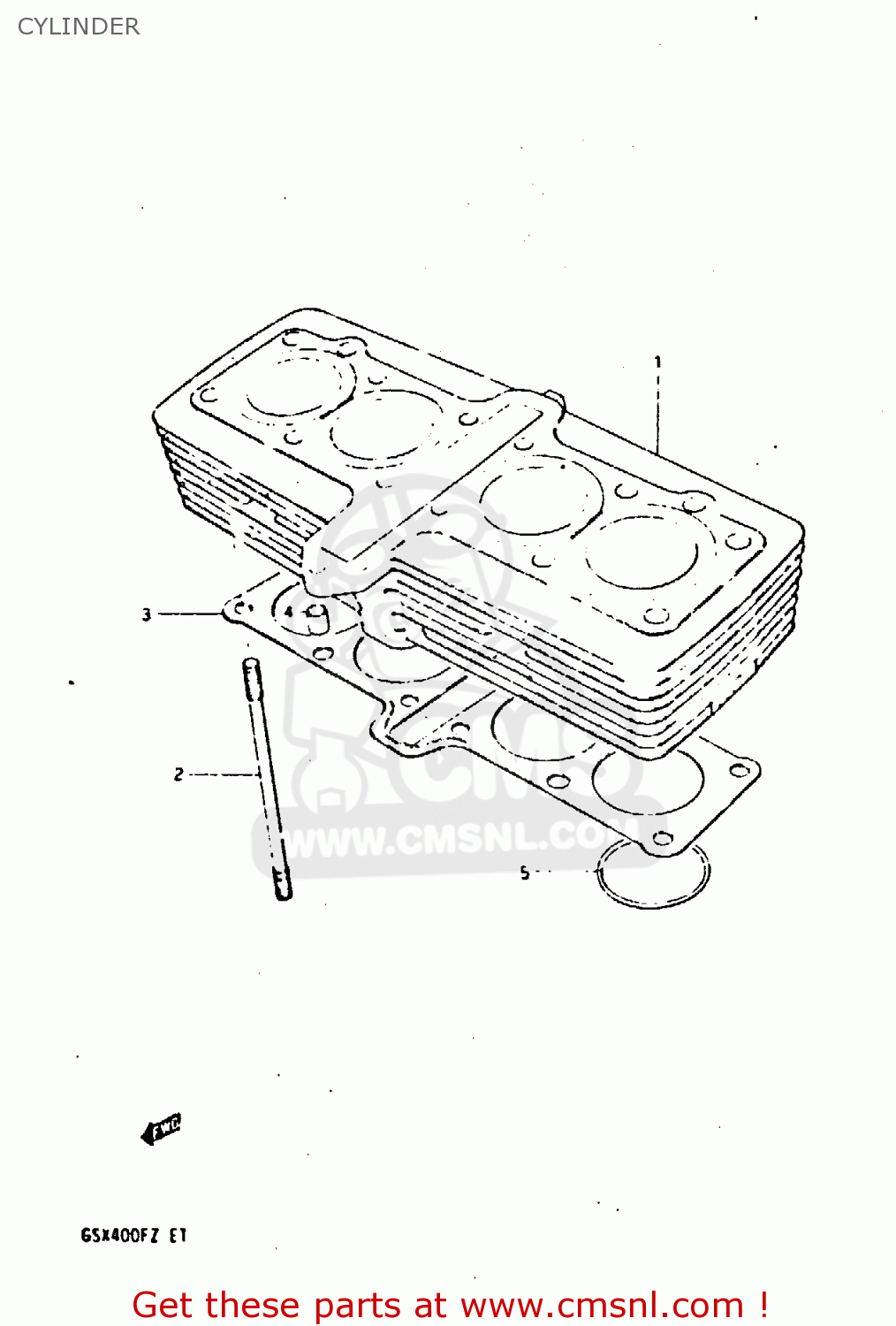

Cylinder diagram GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

CYLINDER GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

CYLINDER GSX400F 1982 (Z) 01 02 04 06 15 16 17 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

1121033201
ref: 1-1
MODEL X

CYLINDER

€ 668.50

1-2

1121033202
ref: 1-2
MODEL Z

CYLINDER

€ 668.50

2

0910808085
ref: 2

STUD

€ 5.00

3

1124133202
ref: 3

GASKET (T:0.8) (MCA)

€ 20.50

4

0920611003
ref: 4

PIN

€ 2.00

5

0928056001
ref: 5

O-RING (D:2 ID:56.5)

€ 4.00
