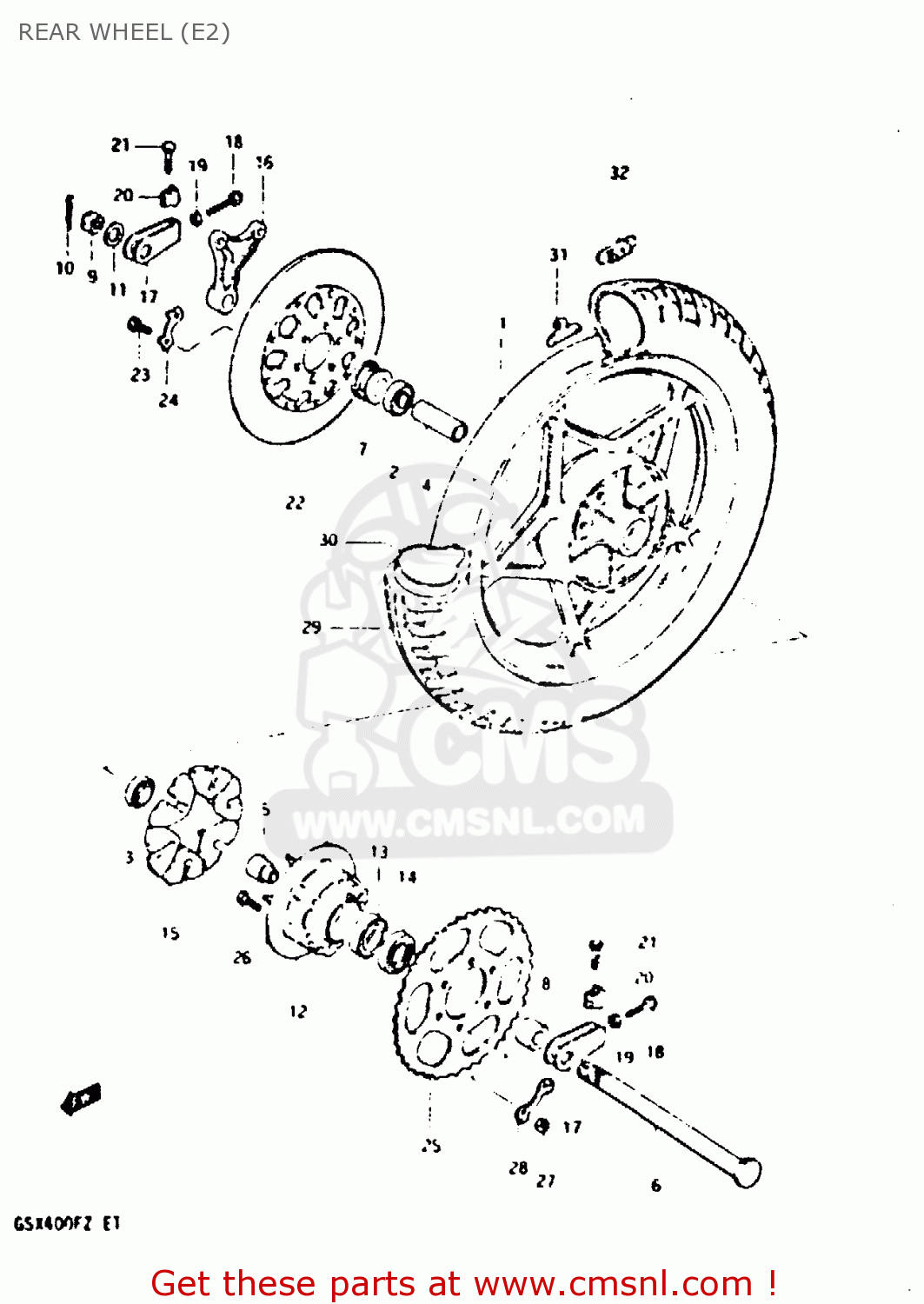

REAR WHEEL (E2)

ref

part #

description

quantity

1-1

641113320012Z
ref: 1-1
MODEL X

WHEEL, REAR (18*MT*2.15)

€ 0.00

1-2

641113320012U
ref: 1-2
MODEL Z

WHEEL, REAR (18*MT*2.15)

€ 0.00

2

0814363037
ref: 2

BEARING

€ 23.00

3

0814362037
ref: 3

BEARING

€ 18.50

4

0918017061
ref: 4

SPACER, BEARING

€ 0.00

5

6473334000
ref: 5

SPACER,REAR HUB BEARING

€ 24.00

6

6471133200
ref: 6

AXLE, REAR

€ 41.00

7

6474033200
ref: 7

SPACER,REAR AXLE

€ 13.50

8

0918017055
ref: 8

SPACER(17X30.5X16.3)

€ 8.00

9

0914116001
ref: 9

NUT

€ 6.50

10

0411140308
ref: 10

PIN,COTTER

€ 1.50

11

0916017013
ref: 11

WASHER (17X30X3.2)

€ 2.00

12

6461133200
ref: 12

DRUM,REAR SPROCKET MOUNT

€ 78.50

13

0811362057
ref: 13

BEARING

€ 18.00

14

0928530001
ref: 14

SEAL,OIL(30.5X52X8)

€ 20.00

15

6465111300
ref: 15

ABSORBER,RR HUB SHOCK

€ 12.50

16

6972133200
ref: 16

BRACKET, REAR CALIPERS

€ 0.00

17-1

6141033000
ref: 17-1
MODEL X

ADJUSTER,CHAIN

€ 58.00

17-2

6141047200
ref: 17-2
MODEL Z

ADJUSTER,CHAIN

€ 58.00

18-1

0910408006
ref: 18-1
MODEL X

BOLT

€ 3.00

18-2

0910406018
ref: 18-2
MODEL Z

BOLT

€ 0.00

19

0831012088
ref: 19

NUT

€ 2.00

20

6143331000
ref: 20

SUPPORTER,CHAIN ADJUST

€ 22.50

21

0151708508
ref: 21

BOLT

€ 3.50

22

6921133200
ref: 22

DISC, REAR BRAKE

€ 0.00

23

0910008140
ref: 23

BOLT(8X25)

€ 2.00

24

0916908028
ref: 24

WASHER

€ 2.00

25

6451147640
ref: 25

SPROCKET,REAR

€ 114.50

26

0911910002
ref: 26

BOLT

€ 3.50

27

0914010026
ref: 27

NUT

€ 2.00

28

0916910007
ref: 28

WASHER

€ 7.50

29

6510033210
ref: 29
IRC

TIRE (3.75S-18)

€ 0.00

30

6520049015
ref: 30

TUBE,INNER

€ 39.00

31-1

5541147001
ref: 31-1
MODEL X

BALANCER,WHEEL

€ 4.00

31-2

5541247001
ref: 31-2
MODEL X

BALANCER,WHEEL

€ 3.50

32-1

5541145100
ref: 32-1
MODEL Z

BALANCER,WHEEL

€ 7.00

32-2

5541245100
ref: 32-2
MODEL Z

BALANCER,WHEEL

€ 4.00

32-3

5541345100
ref: 32-3
MODEL Z

BALANCER,WHEEL

€ 6.50

all assemblies
