AIR CLEANER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

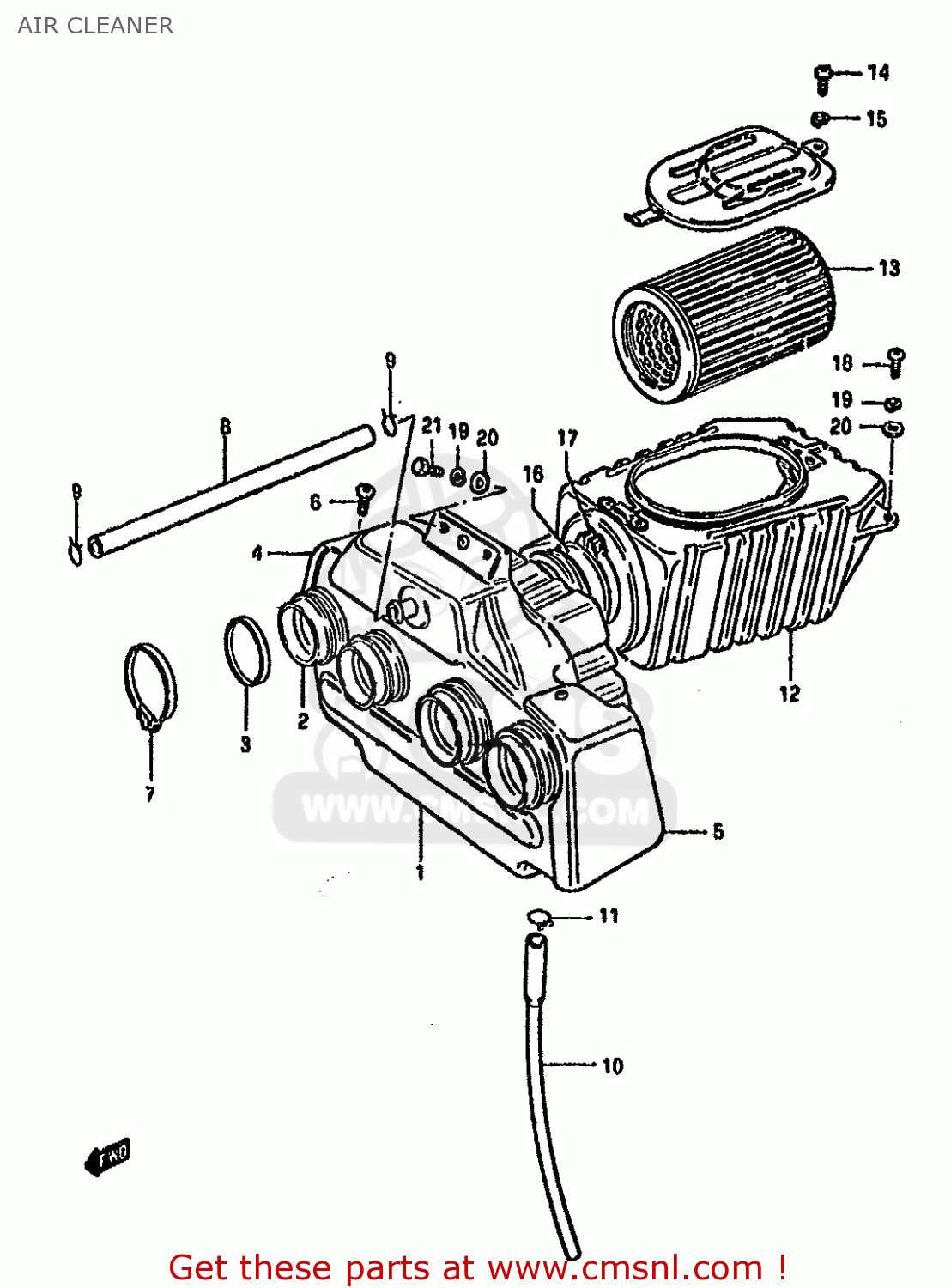

Air cleaner diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

1371045500
ref: 1

CASE COMP,AIR CLEANER

€ 0.00

1388145500
ref: 2

TUBE,OUTLET

€ 18.00

1388547030
ref: 3

RING,CARBURETOR AIR INLET HOSE

€ 8.00

1383145500
ref: 4

COVER,AIR CLEA

€ 30.50

1383245500
ref: 5

COVER

€ 25.00

0231104108
ref: 6

.SCREW

€ 1.00

0940262306
ref: 7

CLAMP

€ 6.00

1385100220
ref: 8

TUBE,BREATHER

€ 13.50

0940114301
ref: 9

CLIP

€ 2.00

1387100010
ref: 10

HOSE,DRAIN

€ 0.00

0940114301
ref: 11

CLIP

€ 2.00

1370045810
ref: 12

CLEANER SET,AIR,REAR

€ 176.50

1378045500
ref: 13

FILTER,AIR CLEANER

€ 41.00

0211205128
ref: 14

SCREW

€ 2.50

0832121058
ref: 15

LOCK WASHER

€ 2.00

1379549000
ref: 16

HOSE,AIR CLEANER

€ 34.50

1379649000
ref: 17

BAND

€ 6.00

0211206208
ref: 18

SCREW

€ 2.00

0832121068
ref: 19

LOCK WASHER

€ 2.50

0832211068
ref: 20

WASHER 6MM

€ 2.00

0110706208
ref: 21

BOLT

€ 2.00

AIR CLEANER

all assemblies
