FRONT MASTER CYLINDER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

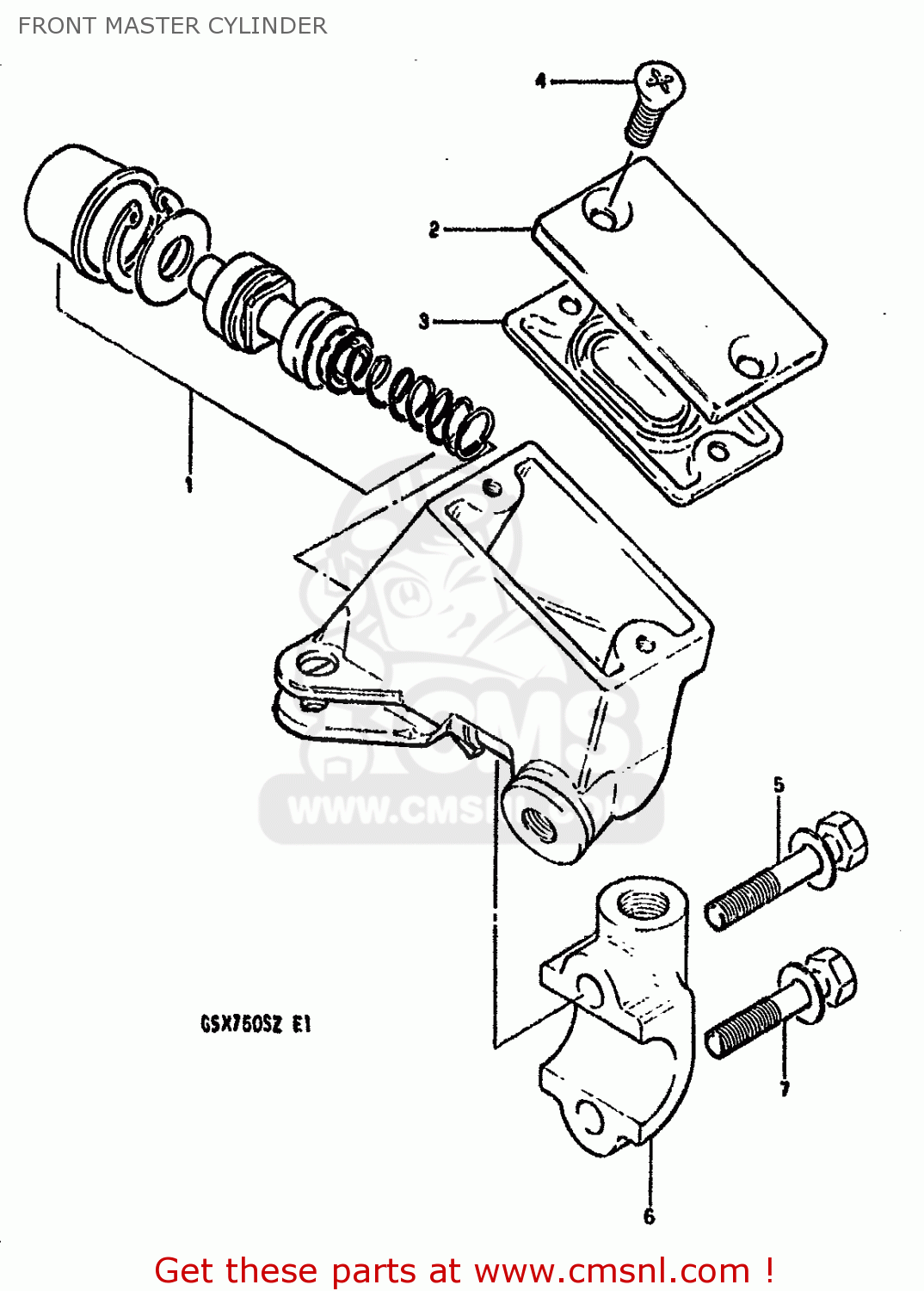

Front master cylinder diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

5960049300
ref: 0

CYLINDER ASSY, MASTER

€ 209.00

5960049830
ref: 1

PISTON & CUP SET

€ 46.50

5966949300
ref: 2

CAP

€ 23.50

5966749300
ref: 3

DIAPHRAGM,MASTER CYLINDER

€ 15.50

5969149300
ref: 4

SCREW,RESERVOIR CAP

€ 6.50

5969449300
ref: 5

BOLT,MASTER CYLINDER H

€ 3.50

5967149000
ref: 6

HOLDER

€ 22.50

5969349300
ref: 7

BOLT,MASTER CYLINDER H

€ 3.00
