FRONT DAMPER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

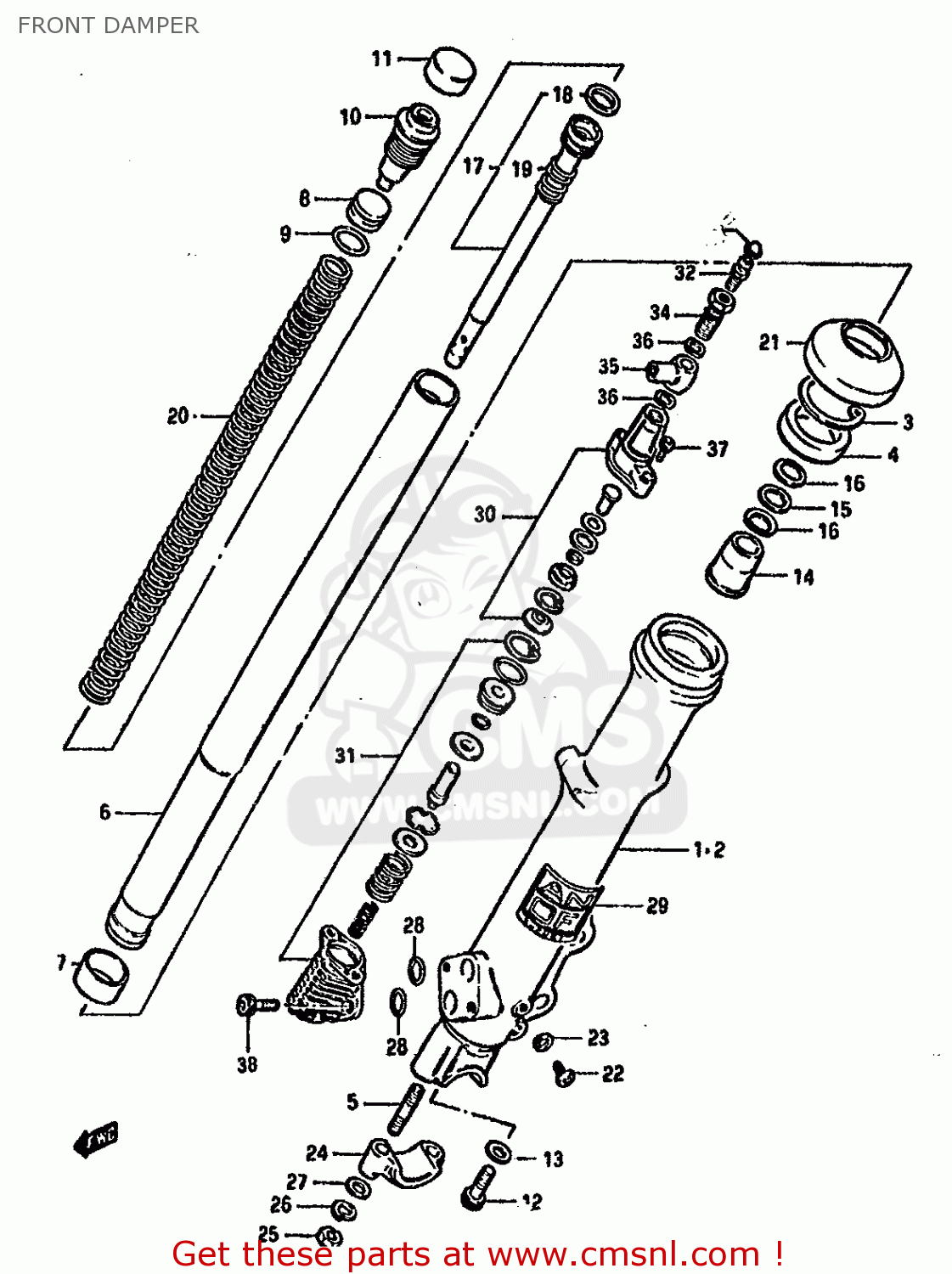

Front damper diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

FRONT DAMPER GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FRONT DAMPER GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FRONT DAMPER GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
0
5110349310
ref: 0
DAMPER ASSY, RH
€ 0.00
0
5110449310
ref: 0
DAMPER ASSY, LH
€ 0.00
1
5113049300
ref: 1
OUTER TUBE, RH
5113049300
€ 117.50
2
5114049300
ref: 2
OUTER TUBE, LH
5114049300
€ 142.50
3
5115640301
ref: 3
RING,STOPPER
5115640301
€ 4.50
4
5115349000
ref: 4
OIL SEAL,FRONT FORK
5115349000
€ 16.50
5
0141108308
ref: 5
STUD 8X30
0141108308
€ 2.00
6
5111049300
ref: 6
TUBE,INNER
5111049300
€ 294.50
7
5112149200
ref: 7
PISTON
5112149200
€ 18.00
8
5117245110
ref: 8
PISTON,FREE
5117245110
€ 10.50
9
5111745110
ref: 9
O-RING
5111745110
€ 4.00
10
5135149200
ref: 10
CAP
5135149200
€ 59.00
11
5118949300
ref: 11
CAP,RUBBER
5118949300
€ 9.00
12
5114716510
ref: 12
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
13
5114841310
ref: 13
GASKET (NAS)
5114841310
€ 2.50
14
5119545420
ref: 14
PIECE,OIL LOCK
5119545420
€ 15.50
15
5112345420
ref: 15
WASHER
5112345420
€ 3.50
16
5112545420
ref: 16
SPRING,LEAF
5112545420
€ 3.50
17
5114649300
ref: 17
CYLINDER,FRONT FORK
€ 118.00
18
5119649000
ref: 18
RING,PISTON
5119649000
€ 9.00
19
5117749000
ref: 19
SPRING,REBOUND
5117749000
€ 7.50
20
5117149310
ref: 20
SPRING,FRONT FORK
€ 74.50
21
5117349002
ref: 21
SEAL,DUST
5117349002
€ 13.00
22
0211204088
ref: 22
SCREW
€ 1.50
23
5118303010
ref: 23
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
24
5113249000
ref: 24
HOLDER,AXLE
5113249000
€ 30.00
25
0914008005
ref: 25
NUT (8MM)
0914008005
€ 1.50
26
0832121088
ref: 26
LOCK WASHER
0832121088
€ 2.00
27
0832221088
ref: 27
WASHER
0832221088
€ 2.00
28
5179944130
ref: 28
O RING
5179944130
€ 5.00
29
5114944130
ref: 29
LABEL
€ 5.50
30
5170044831
ref: 30
TO 51700-44832
MODULATOR PLANGER SET
5170044831
€ 100.00
31
5170049810
ref: 31
TO 51700-49811
MODULATOR VALVE SET
€ 122.00
32
5177844130
ref: 32
BREATHER,AIR
5177844130
€ 12.50
33
5177944130
ref: 33
CAP,BREADER
€ 6.00
34
5175349300
ref: 34
BOLT,UNION
€ 10.50
35
5176549300
ref: 35
SPACER,FRONT FORK MODULATOR
€ 7.50
36
0916110005
ref: 36
WASHER
0916110005
€ 2.00
37
5179744160
ref: 37
BOLT,FR FORK
€ 2.00
38
5179644130
ref: 38
BOLT,FRONT FORK
5179644130
€ 3.00
