SIGNAL GENERATOR

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

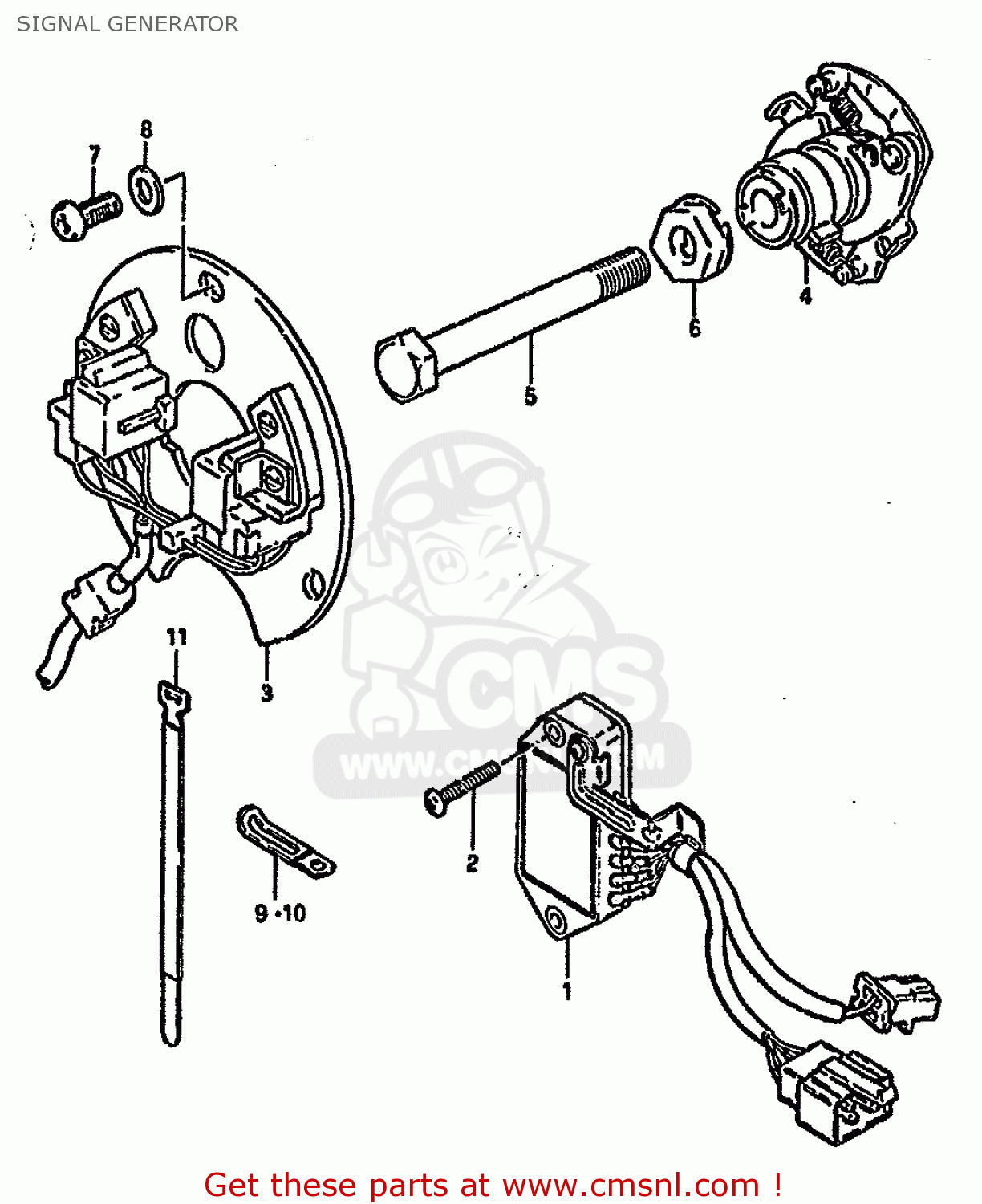

Signal generator diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

3290045411
ref: 1

IGNITER UNIT

€ 492.50

0211206208
ref: 2

SCREW

€ 2.00

3311045110
ref: 3

SIGNAL GENERATOR ASSEMBLY

€ 309.50

3312045410
ref: 4
TO 33120-45420

GOVERNOR ASSEMBLY

€ 155.50

0110708658
ref: 5

BOLT

€ 3.00

3346547000
ref: 6

WASHER

€ 19.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005027
ref: 8

WASHER

€ 2.50

0940406401
ref: 9

CLAMP L:35

€ 2.50

0940408401
ref: 10

CLAMP

€ 3.50

0940718301
ref: 11

CLAMP

€ 6.00
