WIRING HARNESS

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

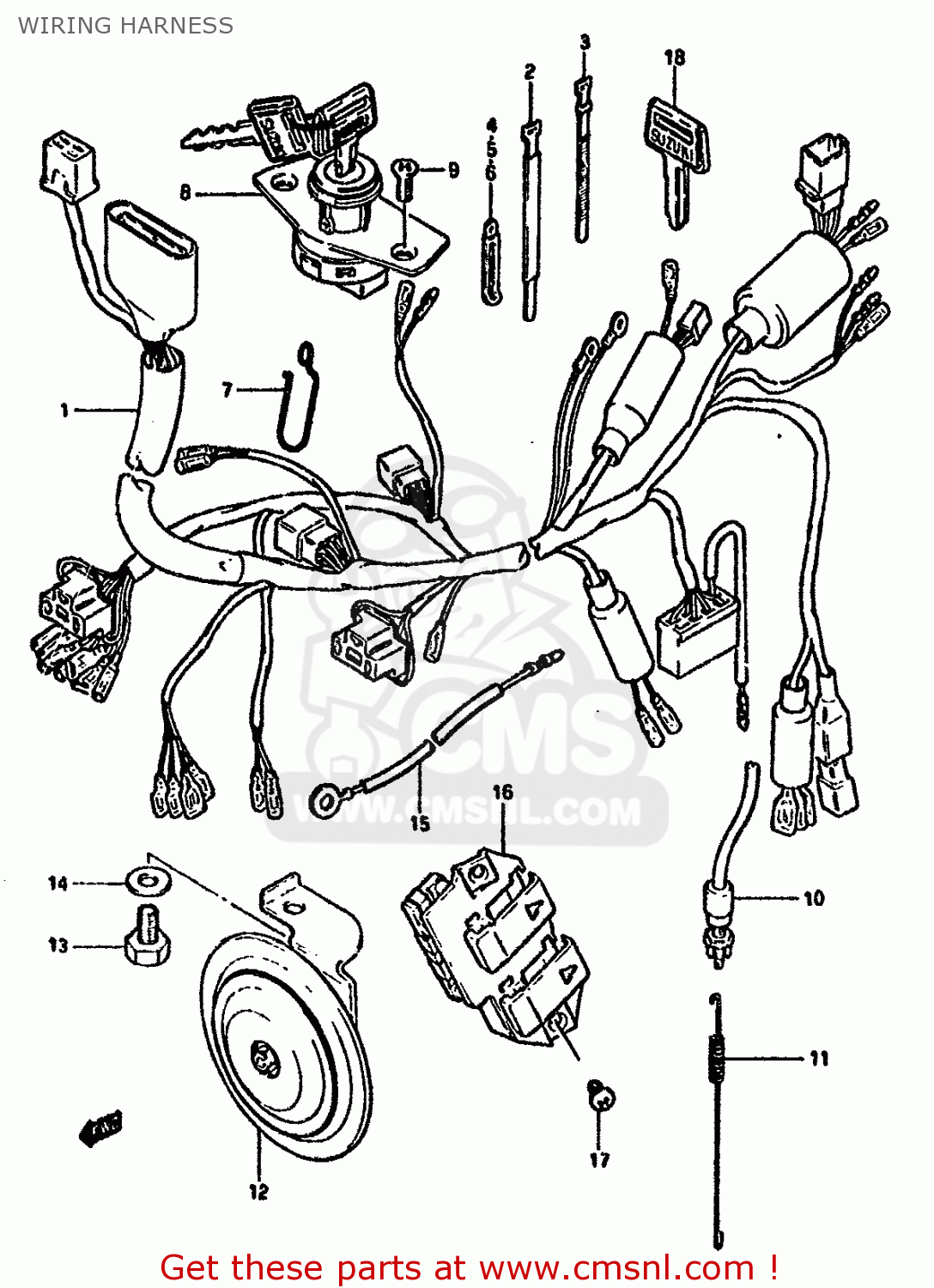

Wiring harness diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

WIRING HARNESS GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
WIRING HARNESS GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
WIRING HARNESS GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1-1
3661049300
ref: 1-1
WIRING HARNESS
€ 226.50
1-2
3661049310
ref: 1-2
E22
WIRING HARNESS
3661049310
€ 277.00
2
0940718301
ref: 2
CLAMP
0940718301
€ 6.00
3-1
0940712402
ref: 3-1
CLAMP(L:120)
0940712402
€ 3.00
3-2
0940708401
ref: 3-2
CLAMP(L:80)
€ 2.50
4-1
0940406414
ref: 4-1
CLAMP
€ 3.00
4-2
0940406401
ref: 4-2
CLAMP L:35
0940406401
€ 2.50
4-3
0940408401
ref: 4-3
CLAMP
€ 3.50
5
0940406415
ref: 5
CLAMP
€ 3.00
6
0940406412
ref: 6
CLAMP
0940406412
€ 2.50
7
3661849300
ref: 7
BOOT,WIRING HARNESS
€ 4.50
8
3711049300
ref: 8
SWITCH ASSY,IGNITION
3711049300
€ 111.50
9
0212205108
ref: 9
SCREW
€ 1.00
10
3774004571
ref: 10
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
11
0944306027
ref: 11
SPRING
0944306027
€ 4.50
12-1
3850049320
ref: 12-1
HORN ASSY
3850049320
€ 69.00
12-2
3850049300
ref: 12-2
E4,E34,E39
HORN
€ 69.00
12-3
3850049310
ref: 12-3
E18
HORN
€ 0.00
13
0110708128
ref: 13
BOLT 8X12
0110708128
€ 2.50
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
3685145401
ref: 15
WIRE
€ 14.00
16
3785049300
ref: 16
SWITCH ASSY,SIDE COVER,L
3785049300
€ 104.00
17
0324104088
ref: 17
SCREW
€ 1.50
18
3714649300
ref: 18
OPT
KEY,BLANK
3714649300
€ 13.00
