CARBURETOR

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

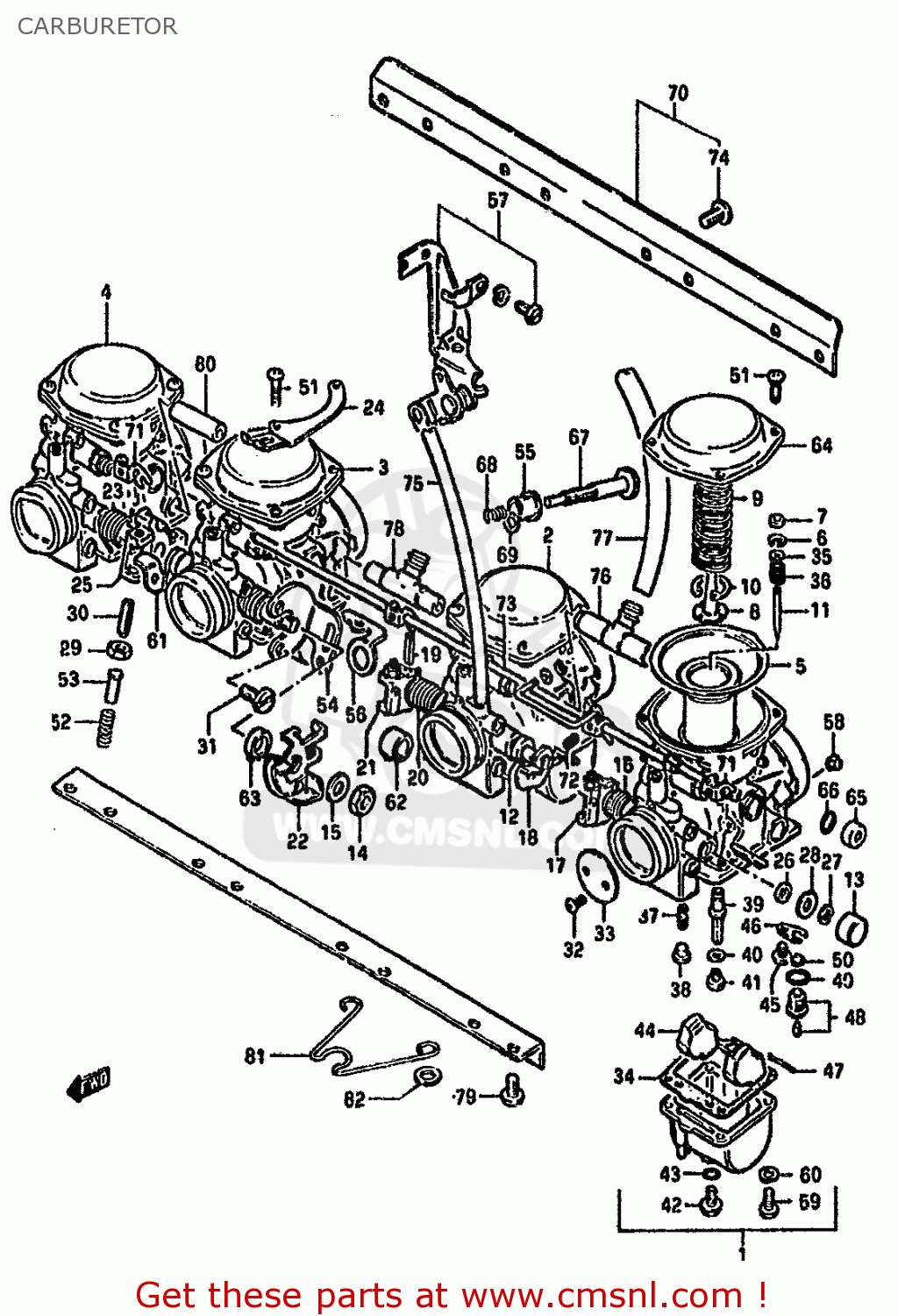

Carburetor diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

CARBURETOR GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
CARBURETOR GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
CARBURETOR GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1
1320145500
ref: 1
LH
CARBURETOR, LH
€ 0.00
2
1320245500
ref: 2
ML
CARBURETOR, ML
€ 0.00
3
1320345500
ref: 3
MR
CARBURETOR, MR
€ 0.00
4
1320445500
ref: 4
RH
CARBURETOR, RH
€ 0.00
5
1350049250
ref: 5
DIAPHRAGM,CARBURETOR
1350049250
€ 128.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350344080
ref: 9
SPRING
1350344080
€ 11.50
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338345120
ref: 11
NEEDLE, JET (5057-2)
1338345120
€ 14.00
12
1355749200
ref: 12
ML,MR
GASKET
1355749200
€ 7.00
13
1357847070
ref: 13
RH,LH
CAP
1357847070
€ 5.50
14
0831022088
ref: 14
MR
NUT 8MM
0831022088
€ 2.00
15
1360647070
ref: 15
MR
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355049200
ref: 17
LH
SHAFT,THROTTLE
€ 0.00
18
1355045500
ref: 18
ML
SHAFT ASSEMBLY
€ 0.00
19
1356347070
ref: 19
LH,ML,RH
PIN,THROTTLE SHAFT
€ 0.00
20
1357345110
ref: 20
ML
SPRING,THROTTLE SHAFT
€ 0.00
21
1355347070
ref: 21
ML
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24
1362149160
ref: 24
MR
BRACKET,THROTTLE CABLE
€ 0.00
25
1355049200
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1365151010
ref: 26
SEAL
1365151010
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
1360547080
€ 7.00
31
1360545420
ref: 31
MR
SCREW
€ 2.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355149200
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
35
1338244030
ref: 35
WASHER
1338244030
€ 3.50
36
1338844030
ref: 36
SPRING
1338844030
€ 6.00
37
0949242005
ref: 37
JET, PILOT (42.5)
€ 8.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
1335744080
€ 4.50
39
0949400339
ref: 39
JET, NEEDLE (X-2)
€ 12.50
40
1333244080
ref: 40
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949122005
ref: 41
TO 09491-22015
JET, MAIN (112.5)
0949122005
€ 11.00
42
1324744080
ref: 42
PLUG,DRAIN
1324744080
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
1324644080
€ 3.50
44
1325044080
ref: 44
FLOAT
1325044080
€ 31.00
45
0211204068
ref: 45
SCREW 4X6
0211204068
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
1325492311
€ 2.00
48
1337011400
ref: 48
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337665010
ref: 50
FILTER
€ 6.50
51
0211205168
ref: 51
SCREW
0211205168
€ 2.50
52
1326844010
ref: 52
LH,ML,RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
53
1357547070
ref: 53
LH,ML,RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
54
1362745110
ref: 54
MR
BRACKET,THROTTLE ADJUST
€ 0.00
55
1327631210
ref: 55
MR
BUSH
1327631210
€ 4.00
56
1362744090
ref: 56
MR
BRACKET,THROTTLE ADJUST
€ 0.00
57
1362445500
ref: 57
ML
BRACKET ASSY
1362445500
€ 35.50
58
0949330005
ref: 58
JET,AIR
0949330005
€ 17.00
59
0211205168
ref: 59
SCREW
0211205168
€ 2.50
60
0832121058
ref: 60
LOCK WASHER
0832121058
€ 2.00
61
1355049230
ref: 61
MR
SHAFT,THROTTLE
€ 0.00
62
1357445110
ref: 62
ML
RING
€ 3.50
63
1357445120
ref: 63
MR
RING
€ 2.50
64
1350249250
ref: 64
COVER,DIAPHRAGM
€ 24.50
65
1368231210
ref: 65
CAP,STARTER VALVE
1368231210
€ 5.00
66
1327847090
ref: 66
O RING
1327847090
€ 2.00
67
1326747070
ref: 67
MR
SCREW
1326747070
€ 21.00
68
1327193011
ref: 68
MR
SPRING
1327193011
€ 4.50
69
1343247090
ref: 69
MR
WASHER
1343247090
€ 2.50
70
1321045500
ref: 70
FLANGE ASSY
€ 0.00
71
1342244080
ref: 71
LEVER
1342244080
€ 10.00
72
1360547070
ref: 72
SCREW
1360547070
€ 5.50
73
1341045400
ref: 73
SHAFT,STARTER
€ 0.00
74
1360547090
ref: 74
SCREW
1360547090
€ 1.50
75
1368345110
ref: 75
HOSE
€ 14.00
76
1368547070
ref: 76
NIPPLE
1368547070
€ 25.00
77
1368349160
ref: 77
HOSE,CARBURETOR
€ 26.00
78
1368545110
ref: 78
NIPPLE
1368545110
€ 31.50
79
0211206168
ref: 79
SCREW
0211206168
€ 2.50
80
1368549210
ref: 80
NIPPLE
1368549210
€ 16.50
81
1361949210
ref: 81
CLIP
1361949210
€ 10.00
82
1361549200
ref: 82
WASHER
€ 0.00
