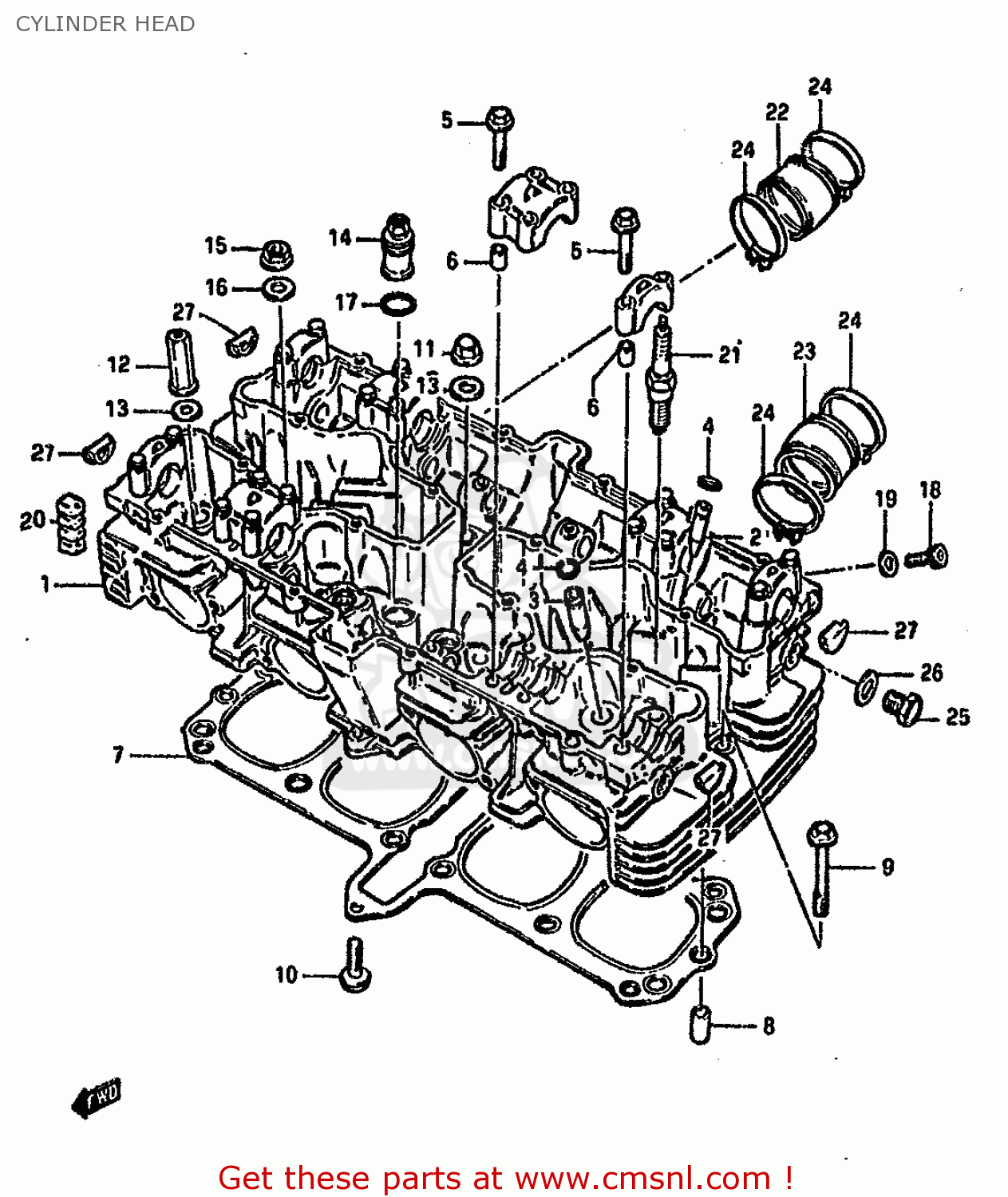

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110045430
ref: 1-1
~E.NO.103621 TO 1110

HEAD ASSEMBLY,CYLINDER

€ 637.00

1-2

1110045450
ref: 1-2
E.NO.103622~

HEAD SET,CYLINDER

€ 1,521.00

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114145410
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 83.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706558
ref: 9

BOLT

€ 2.50

10

0151706308
ref: 10

BOLT

€ 2.00

11

0915910026
ref: 11

NUT

€ 6.00

12

0915910029
ref: 12

NUT

€ 59.50

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

1114549200
ref: 14

NUT,CYLINDER HEAD SEAL

€ 12.50

15

0831616108
ref: 15

NUT

€ 2.00

16

0916010039
ref: 16

WASHER(10.5X22X2.3)

€ 2.50

17

0928017002
ref: 17

O RING(D:2.4,ID:16.8)

€ 3.50

18

0910605006
ref: 18

BOLT

€ 2.00

19

0916805010
ref: 19

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

20

1125148000
ref: 20

PAD,CYLINDER

€ 6.50

21-1

0948200144
ref: 21-1

SPARK PLUG D8EA

€ 3.50

21-2

0948200145
ref: 21-2

SPARK PLUG X24ES-U

€ 3.50

21-3

0948200149
ref: 21-3
E2,E4,E6,E15,E16,E17

SPARK PLUG DR8ES-L

€ 3.50

21-4

0948200223
ref: 21-4
E2,E4,E6,E15,E16,E17

PLUG,SPARK(X24ESR-U)

€ 3.50

22

1311145500
ref: 22

PIPE,INTAKE,R

€ 22.00

23

1312145500
ref: 23

PIPE,INTAKE

€ 22.00

24

0940250306
ref: 24

CLAMP

€ 6.00

25

0924714012
ref: 25

PLUG (14X12)

€ 3.50

26

0916814004
ref: 26

GASKET(14X19.2X2) (NAS)

€ 2.50

27

0924123002
ref: 27

PLUG

€ 8.50
